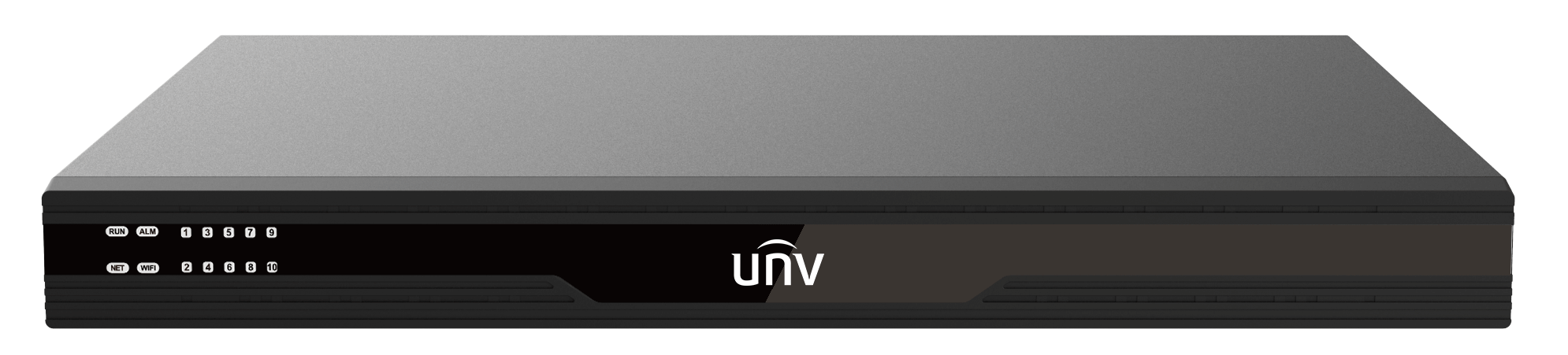

UNV - DC5506-E-V2 - UNV 6-Channel High Definition Video Decoder
Part number:
DC5506-E-V2
Price:
UNV 6-Channel High Definition Video Decoder
Features:
- Provide 4/6/10 HDMI output interfaces
- Provide 2 HDMI input interface
- Up to 3840x2160@60Hz via HDMI output interfaces
- Up to 1920x1080@60Hz via HDMI input interfaces
- Up to decoding at 8MP resolution
- DC5504-E-V2 Support 4-ch@4K/16-ch@1080P/36-ch@720P/64-ch@D1 decoding ability
- DC5506-E-V2 Support 6-ch@4K/24-ch@1080P/54-ch@720P/96-ch@D1 decoding ability
- DC5510-E-V2 Support 10-ch@4K/40-ch@1080P/90-ch@720P/160-ch@D1 decoding ability
- Decode video stream in H.265/ H.264/ MPEG4/ MPEG2/ MJPEG
- 1/2/3/4/6/7/9/16 display split
- Standard ONVIF video stream supported
- Support multicast
- Support up to 4/6/10 video-wall display units
| Video Output | |||
| Output channel | 4 | 6 | 10 |
| HDMI output | 3840x2160(4K)@60HZ、3840x2160(4K)@30HZ、1920x1080(1080P)@60HZ、1600x1200(UXGA)@60HZ、 1440x900(WXGA+)@60HZ、1280x1024(SXGA)@60HZ、1280x720(720P)@60HZ、1024x768(XGA)@60HZ | ||
| Video input | |||
| Input channel | 2*HDMI | ||
| HDMI input | 1920x1080(1080P)@60HZ 、 1920x1080(1080P)@50HZ 、 1600x1200(UXGA)@60HZ 、 1440x900(WXGA)@60HZ 、 1280x1024(SXGA)@60HZ、1280x720(720P)@60HZ、1280x720(720P)@50HZ、1024x768(XGA)@60HZ | ||
| Video Decoding | |||
| Video Stream Format | H.265, H.264, MPEG4, MPEG2, MJPEG | ||
| Decoding Capability | 4x3840x2160@30、16x1080P@30、 36x720P@30、64xD1 | 6x3840x2160@30、24x1080P@30、 54x720P@30、96xD1 | 10x3840x2160@30、 40x1080P@30、90x720P@30、 160xD1 |
| Display split | 1/2/3/4/6/7/9/16 | ||
| External Interface | |||
| Audio Input | 2-ch (Reservation) | ||
| Audio Output | 1-ch (3.5mm) | ||
| Alarm Input | 6(Reservation) | ||
| Alarm Output | 3(Reservation) | ||
| USB Interface | 1*USB 3.0 | ||
| Serial Interface | 1*RS-232, 1*RS485 | ||
| Network Interface | 1*RJ-45 , 10M/100M/1000M adaptive Ethernet Interfaces | ||
| General | |||
| Dimensions(W× H×D)(mm) | 440mm × 339 mm × 44mm | ||
| Weight | 3.28kg | 3.30kg | 3.37kg |
| Working Temperature | -10~55°C | ||
| Working Humidity | 10% ~ 90%(No-condensing) | ||
| Power Supply | 100V ~ 240V AC; 50Hz/60Hz | ||
| Consumption | 20W | 24W | 31W |
