UNV - DEU1016-C - 16 HDDs 3U Disk Enclosure

Product Overview

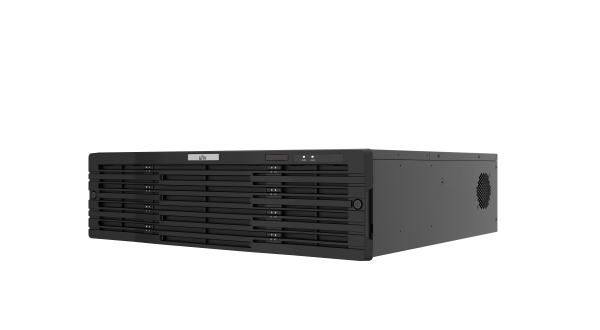

The Uniview DEU1016-C is a high-density 3U disk enclosure designed for rack-mounted surveillance storage systems. Its compact 477mm-depth chassis accommodates up to 16 SATA hard drives and supports sequential disk startup for improved power protection.

Key Configuration

Model: DEU1016-C | Form Factor: 3U rackmount | Drive Bays: 16× SATA | Maximum Capacity: up to 24TB per disk | Interface: 1× miniSAS, 1× RS232 | Power: AC 100–240V | Dimensions: 482×477×131mm

Key Features

• · High-density enclosure supporting up to 16 surveillance hard drives
• · Supports SATA disks up to 24TB each
• · Space-saving 3U chassis with 477mm depth for standard rack installations
• · Sequential disk startup helps protect against impulse current during system boot
• · One miniSAS interface for storage-system connectivity
• · One RS232 interface for system communication and management
• · AC 100–240V power input
• · Operating temperature range from -10°C to 55°C
• · Power consumption below 160W with 16 hard drives installed
• · Designed for standard rack-mounted surveillance storage environments

Technical Context

The DEU1016-C provides centralized expansion storage for compatible surveillance recording systems. Its 16-drive architecture supports high-capacity video retention, while the miniSAS connection enables integration with an external recorder or storage controller.

Installation Notes

Install the enclosure in a ventilated standard 3U rack space and use compatible SATA hard drives. Maintain an ambient temperature between -10°C and 55°C, allow adequate airflow around the chassis, and connect the miniSAS interface to the compatible host storage system.
