UNV - EK-BQ2P16UDLT412 - 16 Channel Surveillance Kit with 12 Dual Light Cameras, PoE NVR, NO HDD, NDAA
Product Overview

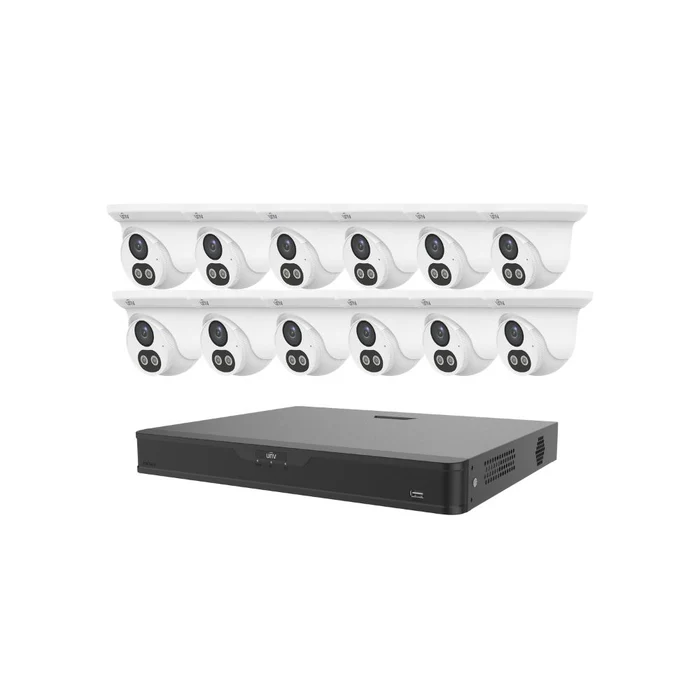

The Uniview EK-BQ2P16UDLT412T4 is a complete 16-channel 4K IP surveillance kit with twelve 4MP IPC3614LB-AF28KU-DL Ultra Motion Detection turret cameras and a pre-installed 4TB hard drive. The system includes an NVR302-16B-P16-IQ NVR with 16 built-in PoE ports, AI smart detection, 4K HDMI output, and dual-light cameras with infrared and warm-light illumination up to 30m. Plug-and-play PoE, built-in microphones, IP67 protection, and edge microSD storage support professional indoor and outdoor deployments.
Key Configuration
Model: EK-BQ2P16UDLT412T4 | System Capacity: 16 channels | Included Cameras: 12 × IPC3614LB-AF28KU-DL, 4MP, 2.8mm turret cameras | Recorder: NVR302-16B-P16-IQ, 16-channel 4K NVR with 16 PoE ports | Storage: 4TB HDD installed, 2 SATA bays | Video Output: 4K HDMI and VGA
Key Features
- · Complete 16-channel 4K IP surveillance system with 12 included cameras
- · 4MP cameras provide 2560 × 1440 video at up to 25 fps
- · Fixed 2.8mm lenses provide wide-angle coverage
- · Dual-light illumination combines IR and warm light up to 30m
- · AI smart detection supports face, human body, vehicle, intrusion, and motion events
- · 16 built-in PoE ports provide plug-and-play camera power and network connectivity
- · Pre-installed 4TB HDD provides ready-to-record storage
- · 4K HDMI and VGA outputs support local multi-monitor viewing
- · IP67 turret camera housings support outdoor installation
- · Built-in microphones and camera microSD slots up to 128GB support audio and edge storage
Technical Context
The NVR's integrated PoE ports carry power and video data over a single Ethernet cable for simplified installation. Dual-light cameras can use infrared illumination for routine nighttime monitoring and warm light for color night imaging. Ultra 265, H.265, and H.264 compression help manage network bandwidth and recording storage, while ONVIF Profiles S, G, and T support compatible third-party devices.
Installation Notes
Connect the twelve cameras to the NVR's built-in PoE ports and verify that the installed 4TB HDD is initialized before recording. The cameras are rated IP67 for outdoor use and include built-in microphones. Additional compatible cameras or storage can be added within the NVR's 16-channel capacity and two-SATA-bay design.
| Camera System | |
| Camera Model | IPC3614LB-AF28KU-DL (UMD) |
| Quantity | 12 cameras |
| Camera Type | Dual Light fixed turret IP camera |
| Camera Video and Lens | |
| Resolution | 4 MP (2560 × 1440) |
| Image Sensor | 1/3" CMOS |
| Lens | 2.8 mm fixed lens, F1.6 |
| Field of View | Horizontal: 97° Vertical: 52.2° Diagonal: 107.5° |
| Frame Rate | 4 MP at 25 fps 3 MP at 30 fps 1080p at 30 fps 720p at 30 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Day/Night Mode | ICR automatic switching |
| WDR | DWDR |
| Minimum Illumination | 0.01 lux in color mode, F1.6, AGC on 0 lux with IR illumination |
| Dual Light and Detection | |
| Infrared Illumination | Up to 30 m (98 ft) |
| Warm Light Illumination | Up to 30 m (98 ft) |
| Basic Detection | Motion detection, tampering detection, audio detection, human body detection, and Ultra Motion Detection (UMD) |
| DORI - Detect | 63.0 m (206.7 ft) |
| DORI - Observe | 25.2 m (82.7 ft) |
| DORI - Recognize | 12.6 m (41.3 ft) |
| DORI - Identify | 6.3 m (20.7 ft) |
| Camera Audio, Storage, and Network | |
| Audio | Built-in microphone |
| Edge Storage | MicroSD card slot supporting up to 128 GB |
| Network Interface | 1 × RJ-45 10/100 Mbps |
| Interoperability | ONVIF Profiles S/G/T |
| Camera Power | PoE IEEE 802.3af or 12 VDC Maximum 2.8 W |
| Camera Mechanical and Environmental | |
| Housing | Metal and plastic turret housing |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% RH |
| Dimensions | Ø126 × 93.6 mm Ø5.0 × 3.7 in |
| Weight | 0.29 kg (0.64 lb) |
| Surge Protection | 4 kV |
| NVR Specifications | |
| NVR Model | NVR302-16B-P16-IQ |
| IP Video Input | 16 channels |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128 Mbps |
| Recording Resolution | Up to 12 MP |
| Video Compression | Ultra 265, H.265, H.264 |
| Video Output | 1 × HDMI, up to 4K resolution 1 × VGA HDMI and VGA simultaneous output |
| Audio I/O | 1 × RCA audio input, 1 × RCA audio output, two-way audio |
| NVR Smart Functions | |
| Smart Detection | Face detection, face comparison, Smart Intrusion Prevention (SIP), and Ultra Motion Detection (UMD) |
| VCA Search | Face search, vehicle search, human body search, people counting report, heat map, and AcuSearch |
| Camera Compatibility | ONVIF-compatible cameras and RTSP protocols |
| PoE Plug & Play | Supported through 16 independent PoE network interfaces |
| ANR Technology | Supports Automatic Network Replenishment to improve recording reliability during network disconnection |
| Cloud Upgrade | Supported |
| NVR Storage and Interfaces | |
| Hard Disk Bays | 2 × SATA |
| Maximum Hard Disk Capacity | Up to 10 TB per drive |
| Included Storage | 4 TB |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps |
| PoE Ports | 16 × RJ-45 10/100 Mbps Maximum 30 W per port 240 W total PoE budget IEEE 802.3at/af |
| USB | 1 × USB 2.0 front panel 1 × USB 3.0 rear panel |
| Alarm I/O | 8 alarm inputs and 2 alarm outputs |
| RS-485 | 1 port |
| Remote Users | Up to 128 users |
| NVR Electrical and Environmental | |
| Power Supply | AC 100–240 V |
| Power Consumption | ≤12 W without hard disk |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Dimensions | 380 × 322 × 53 mm 15.0 × 12.7 × 2.1 in |
| Weight | ≤2.7 kg (6.0 lb) without hard disk |
| Certifications | CE, FCC, UL, RoHS, WEEE |
