Product Overview

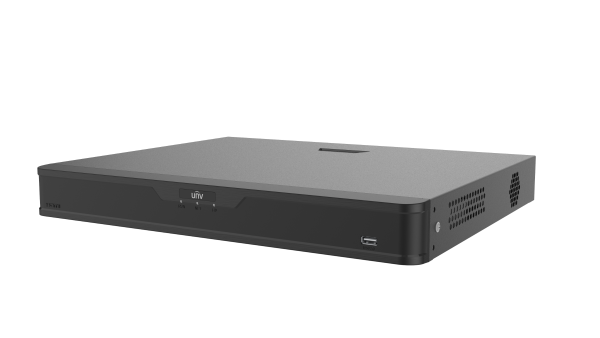

The Uniview XVR302-16Q4 is a 16-channel hybrid digital video recorder supporting TVI, AHD, CVI, CVBS, and IP cameras. It combines 4K display output, H.265/H.264 compression, intelligent video analytics, and flexible storage for professional surveillance installations.
Key Configuration
Model: XVR302-16Q4 | Analog Inputs: 16 BNC | IP Video Inputs: 8, expandable to 24 | Recording: up to 8MP Lite | Storage: 2 SATA interfaces, up to 16TB per HDD | Network: 1× Gigabit Ethernet | Outputs: HDMI 4K, VGA, CVBS
Key Features
- · Supports TVI, AHD, CVI, CVBS, and IP camera inputs with adaptive access
- · H.265/H.264 video compression for efficient recording and storage use
- · Supports analog recording up to 8MP Lite and IP camera streams up to 8MP
- · HDMI output up to 4K at 30Hz with simultaneous VGA output
- · Supports audio over coaxial cable with compatible TVI cameras
- · Two-way audio with selected Uniview analog cameras
- · Smart functions include face detection, Ultra Motion Detection, intrusion, cross-line, enter-area, and leave-area detection
- · Face search, behavior search, and people-counting reports
- · Supports ANR, NAS, ONVIF Profile S, P2P, HTTPS, and cloud upgrades
- · NDAA compliant and designed for 1U installation
Technical Context
The XVR302-16Q4 supports up to 80Mbps incoming bandwidth and 160Mbps outgoing bandwidth, with local decoding for up to 16 analog playback channels. It includes two SATA interfaces, a Gigabit Ethernet port, front USB 2.0 and rear USB 3.0, four alarm inputs, and one alarm output.
Installation Notes
Install the recorder in a ventilated 1U equipment space and use compatible surveillance-grade hard drives, rated up to 16TB each. Connect analog cameras through BNC, IP cameras through the network interface, and use appropriate coaxial cabling for audio-over-coax and long-distance transmission.
| Product Information | |
| Model | XVR302-16Q4 |
| Product Type | 16-channel hybrid digital video recorder |
| Video Formats | H.265 and H.264 |
| Camera Compatibility | TVI, AHD, CVI, CVBS and IP cameras with adaptive access |
| Video and Audio Input | |
| Analog Video Input | 16 × BNC |
| IP Video Input | 16 channels |
| BNC Audio Input | 16 channels |
| RCA Audio Input | 1 channel |
| Supported Analog Resolutions | AHD up to 8MP at 15fps, 5MP at 20fps, 4MP at 30fps, 1080P at 30fps and 720P at 30fps TVI up to 8MP at 15fps, 3K at 20fps, 5MP at 20fps, 4MP at 30fps, 1080P at 30fps and 720P at 30fps CVI up to 8MP at 15fps, 5MP at 25fps, 4MP at 30fps, 1080P at 30fps and 720P at 30fps CVBS supported |
| Video and Audio Output | |
| Video Outputs | 1 × CVBS, 1 × HDMI and 1 × VGA |
| Display Output | HDMI and VGA simultaneous output |
| HDMI Output | Up to 4K (3840 × 2160) at 30Hz |
| VGA Output | Up to 1920 × 1080 at 60Hz |
| Audio Output | 1 × RCA |
| Audio Sample Rate | 8kHz, 16-bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Two-Way Audio | 1 channel with an IP camera or compatible analog camera |
| Recording and Playback | |
| Recording Resolutions | 8MP Lite, 3K Lite, 5MP Lite, 4MP Lite, 1080P, 720P and D1 |
| Main Stream | 8MP Lite at 8fps, 3K Lite at 12fps, 5MP at 6fps, 5MP Lite at 12fps, 4MP at 15fps, 4MP Lite at 15fps, 1080P at 15fps and 720P at 30fps |
| Sub Stream | D1 up to 30fps |
| Third Stream | CIF up to 30fps |
| Local Playback | Up to 16-channel synchronous playback |
| IP Decoding Capability | 2 × 8MP at 30fps, 2 × 6MP at 30fps, 3 × 5MP at 30fps, 4 × 4MP at 30fps, 5 × 3MP at 30fps, 8 × 1080P at 30fps, 16 × 720P at 30fps or 32 × D1 at 30fps |
| Analog Upgrade over Coaxial Cable | Supported |
| Audio over Coaxial Cable | Supported |
| Snapshot | FTP, schedule and event snapshots; up to 24-channel snapshots at 3840 × 2160 resolution |
| Storage | |
| SATA | 2 SATA interfaces |
| Hard Disk Capacity | Up to 16TB for each HDD |
| Disk Group | Supported |
| ANR | Supported |
| NAS | Supported |
| Network | |
| Network Interface | 1 × RJ45 10/100/1000Mbps self-adaptive Ethernet port |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | Up to 32 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, DNS, DDNS, SMTP and HTTPS |
| Browser Support | IE10, IE11, Chrome 45+, Edge 79+ and Firefox 52+ |
| Plugin-Free Browser Support | Chrome 57+, Edge 16+, Firefox 58+ and Safari 11+ |
| Smart Functions | |
| Smart Detection | Ultra Motion Detection, face detection, Smart Intrusion Prevention, cross-line detection, enter-area detection and leave-area detection |
| Additional Analytics | Defocus detection, scene-change detection, object removed, object left behind, auto tracking and people flow counting |
| VCA Search | Face search, behavior search and people-counting reports |
| Smart Channels | 2 channels for face detection, 4 channels for SIP and 16 channels for UMD |
| External Interfaces | |
| USB | 1 × USB 2.0 on the front panel and 1 × USB 3.0 on the rear panel |
| RS485 | 1 |
| RS232 | Not available |
| Alarm Input | 1 |
| Alarm Output | Not available |
| Buzzer | Supported |
| Power and Mechanical | |
| Power Supply | DC 12V/3.3A |
| Power Consumption | 12W without HDD |
| Cooling | Radiator |
| Dimensions | 380 × 325.9 × 53mm (15.0" × 12.8" × 2.1") |
| Form Factor | 1U |
| Weight | 1.9kg (4.2lb) without HDD |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Operating Humidity | Up to 95% RH, non-condensing |
| Compatibility and Compliance | |
| ONVIF | Profile S supported |
| U-Code | Basic and advanced modes supported for analog and IP cameras |
| Dual-Light Camera Control | Supported for compatible UNV analog cameras under TVI output mode |
| Certifications | CE, FCC, UL, RoHS and WEEE |
| GUI Languages | 38 languages, including English, Ukrainian, Russian, German, French, Spanish, Portuguese, Italian, Polish, Arabic, Japanese, Korean and Chinese |
