Wi-Tek - SP5012FM-L2 V2 - L2 Managed Superic Industrial Switch
Product Overview

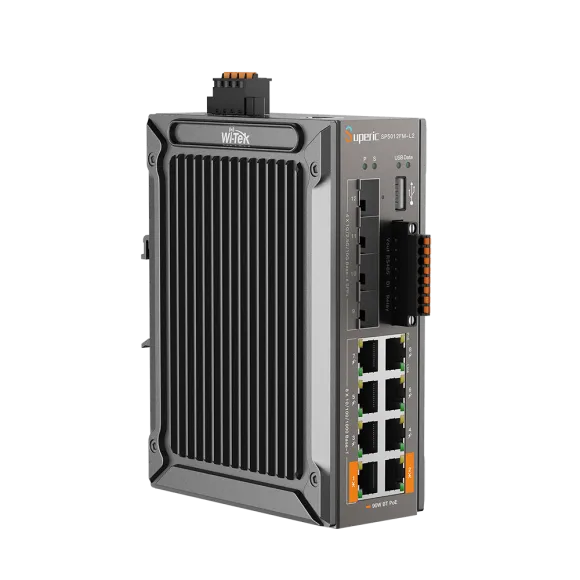

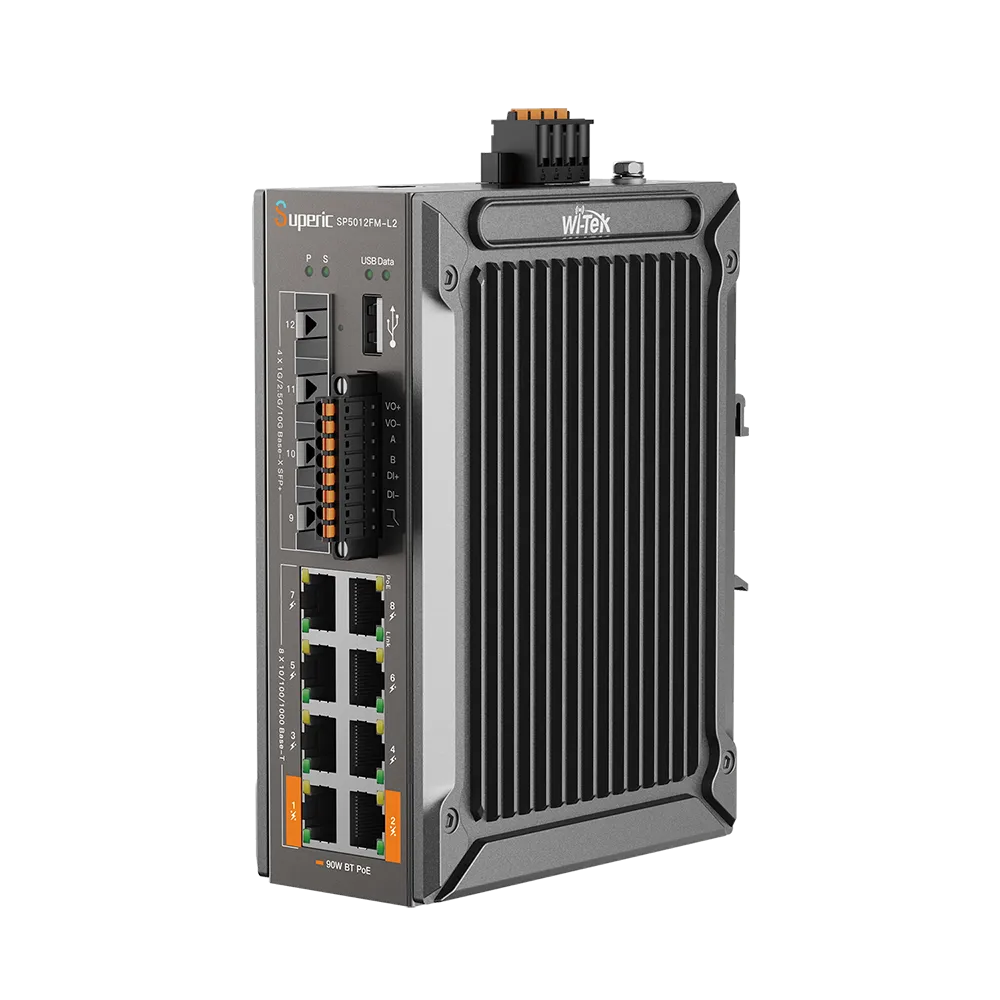

The Wi-Tek SP5012FM-L2 V2 is an industrial L2+ managed PoE switch with eight 10/100/1000 Mbps RJ45 ports and four 1000/2500/10000 Mbps SFP uplink ports. It provides mixed-power PoE delivery with up to 90 W on ports 1–2, a 240 W total PoE budget, 96 Gbps switching capacity, redundant 44–57 V DC inputs, and industrial protection for high-bandwidth and mission-critical network applications.
Key Configuration
Model: SP5012FM-L2 V2 | Ethernet Ports: 8 × 10/100/1000 Mbps RJ45 PoE ports | Uplink Ports: 4 × 1000/2500/10000 Mbps SFP ports | Management: 1 × console port with Digital IN, relay, USB, and RS485 interfaces | PoE Output: Ports 1–2 up to 90 W each; ports 3–8 up to 30 W each; 240 W total budget | Power: Redundant dual 44–57 V DC input
Key Features
- · Eight 10/100/1000 Mbps RJ45 ports provide Gigabit Ethernet connectivity
- · Four 1000/2500/10000 Mbps SFP ports support high-speed fiber uplinks
- · Includes a console port with Digital IN, relay, USB, and RS485 interfaces
- · Ports 1–2 support IEEE 802.3af/at/bt PoE up to 90 W per port
- · Ports 3–8 support IEEE 802.3af/at PoE up to 30 W per port
- · Provides a maximum PoE power budget of 240 W
- · Offers a 96 Gbps switching capacity and 71.4 Mpps packet-forwarding rate
- · Supports VLAN, QinQ, STP/RSTP/MSTP, ERPS, IGMP, QoS, ACL, 802.1X, IPv6, static routing, and DHCP functions
- · Supports 10Gbps link aggregation for high-bandwidth and redundant uplink configurations
- · Redundant 44–57 V DC power inputs, IP40 enclosure, fanless cooling, and -40°C to 75°C operation support harsh environments
Technical Context
The four SFP ports support up to 10Gbps connectivity for high-capacity backbone links and aggregation networks. L2+ functions provide traffic segmentation, loop prevention, multicast handling, quality of service, authentication, access control, IPv6 networking, and ERPS ring redundancy. Link aggregation can combine multiple uplinks to increase throughput and provide redundancy for mission-critical infrastructure.
Installation Notes
The SP5012FM-L2 V2 supports DIN-rail, wall-mounted, or desktop installation and is designed for industrial, CCTV, factory automation, transportation, and smart-city applications. Use the redundant 44–57 V DC inputs according to the system power design, provide suitable grounding, and keep the operating temperature between -40°C and 75°C.
| General | |
| Model | SP5012FM-L2 V2 |
| Product Type | Industrial L2+ Managed PoE Switch |
| Hardware Version | V2 |
| Operating Temperature | -40°C to 75°C |
| Interfaces | |
| Downlink Ports | 8 × 10/100/1000 Mbps RJ45 ports |
| Uplink Ports | 4 × 1000M/2.5G/10Gbps SFP+ ports |
| Management Port | 1 × Console port |
| Additional Interfaces | Digital input, relay output, RS-485, USB, temperature and humidity sensor interface |
| PoE | |
| PoE Ports | Ports 1-8 |
| PoE Standard | Ports 1-2: IEEE 802.3af/at/bt Ports 3-8: IEEE 802.3af/at |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-), 4/5(+), 7/8(-) |
| PoE Power | Ports 1-2: 90 W maximum per port Ports 3-8: 30 W maximum per port 240 W maximum PoE power budget |
| Performance | |
| Memory | 512 MB |
| Flash Memory | 512 MB |
| Forwarding Mode | Store and forward |
| Switching Capacity | 96 Gbps |
| Packet Forwarding Rate | 71.4 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 10 kB |
| Power Supply | |
| Input Power | Power 1 (Main): 44-57 V DC Power 2 (Backup): 44-57 V DC |
| Power Consumption | Idle: 18 W 100% traffic rate with PoE: 258 W |
| Protection | Reverse polarity protection Over-voltage protection Over-current protection |
| Network Features | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1W, IEEE 802.1S, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3az |
| Port Aggregation | Static aggregation LACP dynamic aggregation 1G and 2.5G aggregation 10G aggregation supported only by SP5012FM-L2 V2. |
| VLAN | Up to 64 VLAN groups and up to 8 ports per group MAC-based VLAN IP-based VLAN Protocol-based VLAN GVRP QinQ: port-based and VLAN-based |
| Spanning Tree | IEEE 802.1D STP IEEE 802.1W RSTP IEEE 802.1S MSTP BPDU Guard G.8032 ERPS |
| Multicast | IGMP Snooping Group Address support |
| Routing | Static routing DHCP Client DHCP Snooping DHCP Option 82 |
| Loop and Storm Protection | Loop detection Broadcast storm control Port mirroring |
| Security and QoS | |
| Access Control Lists | IP Standard ACL IP Extended ACL MAC Extended ACL L2/L3 support |
| Authentication | RADIUS/TACACS+ 802.1X port authentication MAC authentication RADIUS authentication |
| Security Features | ARP message filtering IP Source Guard IP/MAC binding Port isolation IPv6 support |
| QoS | 8 priority queues 802.1p CoS and DSCP priority Strict Priority and WRR queue scheduling Ingress and egress rate limiting Egress queue rate limiting |
| Management and Maintenance | |
| Management Protocols | SNMP IPv6 RMON groups 1, 2, 3 and 9 NTP/SNTP Syslog IPv6 management |
| Management Access | Console Telnet SSH HTTP HTTPS |
| Maintenance Features | Ping and Traceroute TFTP Client TFTP and web-based firmware upgrade Configuration export and import Optical transceiver DDM PoE management Relay warning Serial server |
| Industrial Monitoring | Digital input monitoring Relay control Temperature and humidity monitoring |
| LED Indicators | |
| Power Indicator | Green on: Device power is normal Off: Device is powered off or has failed |
| System Indicator | Off: System initialization or abnormal status Blinking: System is operating normally |
| Link Indicators | Off: Port link is down On: Port link is up Blinking: Data transmission |
| PoE Indicators | Off: PoE is not operating On: PoE is operating |
| Fiber Port Indicators | Off: Fiber link is down Green on: Fiber link is up Green blinking: Data transmission |
| Physical Characteristics | |
| Fan Quantity | Fanless |
| Enclosure | IP40 metal case |
| Switch Dimensions (W × D × H) | 56 × 115 × 158 mm |
| Package Dimensions | 272 × 202 × 94 mm |
| Net Weight | 1.18 kg |
| Package Weight | 1.53 kg |
| Installation | DIN-rail, wall-mount and desktop |
| Reset Button | Hold for more than 5 seconds to restore factory defaults |
| Reliability and Environment | |
| Ethernet Port Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 2 kV |
| Power Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 4 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: 8 kV Air discharge: 15 kV |
| Operating Environment | -40°C to 75°C 5% to 90% relative humidity, non-condensing |
| Storage Environment | -40°C to 85°C 5% to 95% relative humidity, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
| Package contents: Switch, 2 Phoenix terminals, wall-mounted ear tip, temperature/humidity sensor and quick installation guide. | |
