Product Overview

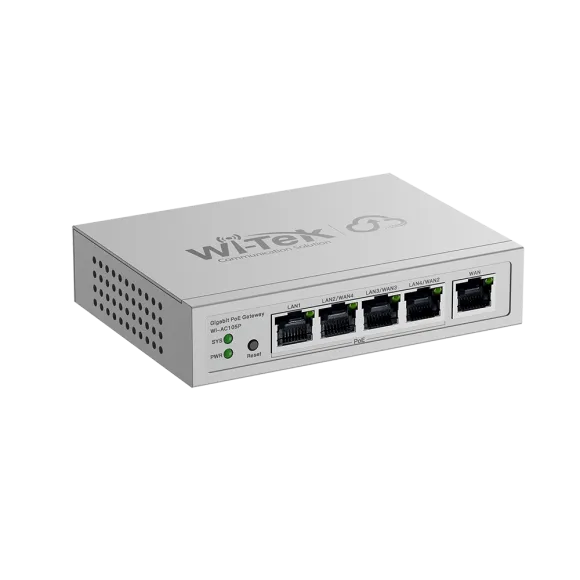

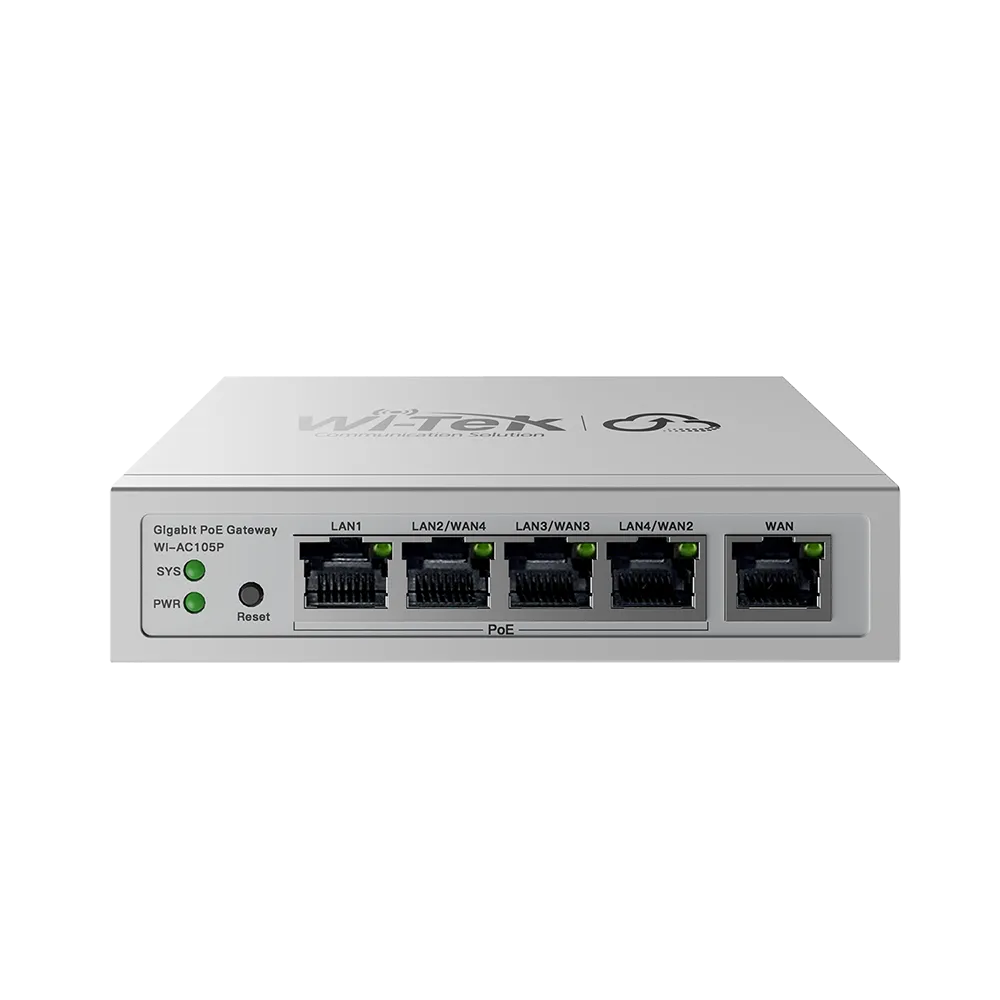

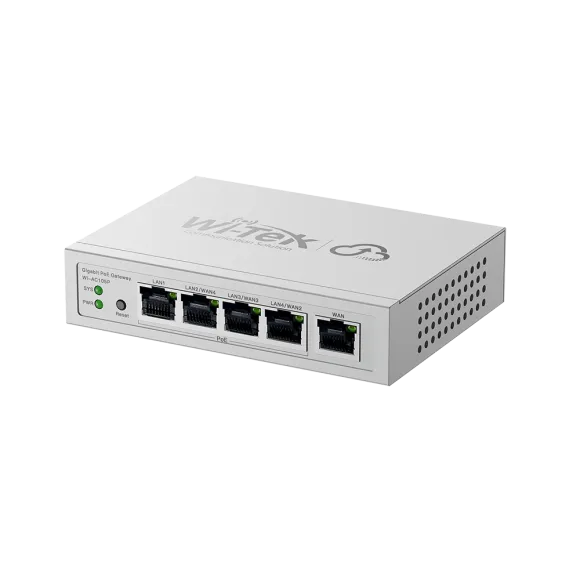

WI-AC105P V2 is a high-performance cloud PoE gateway that combines routing, VPN, multi-WAN, security, bandwidth management, and wireless access point management functions. It provides five Gigabit Ethernet ports, including four 802.3at PoE+ output ports and one WAN port, with a total PoE budget of up to 55W. The gateway is designed for hotel, office, and SMB networks and supports centralized management through Wi-Tek Cloud.
Key Configuration
Model: WI-AC105P V2 | Interfaces: 1×10/100/1000Mbps PoE+ LAN, 3×10/100/1000Mbps PoE+ LAN/WAN, 1×10/100/1000Mbps WAN | PoE: 802.3at, up to 55W total budget | AP Management: Up to 32 APs | Power: DC 54V/1.2A | Maximum Consumption: 63W with PoE load
Key Features
- · Four 10/100/1000Mbps 802.3at PoE+ ports provide power and data connectivity
- · Three configurable LAN/WAN ports support multi-WAN network deployment
- · Up to 55W total PoE power budget for compatible powered devices
- · Unified configuration and management for up to 32 access points
- · Multi-WAN load balancing distributes traffic across multiple Internet connections
- · Supports OpenVPN, IPsec, PPTP, and L2TP VPN protocols
- · Security features include ACL, MAC filtering, ARP protection, NAT, and port mapping
- · Intelligent bandwidth control supports custom flow policies and IP-based bandwidth assignment
- · Supports IEEE 802.1Q VLAN, SD-LAN, ONVIF, captive portal, DHCP, DNS, and DDNS functions
- · Local web management and remote management through the Wi-Tek Cloud platform
Technical Context
Multi-WAN load balancing distributes data streams across available broadband connections to improve utilization and network continuity. The integrated AP management system supports automatic discovery, RF optimization, batch configuration, multi-SSID settings, channel and transmission-power control, firmware upgrades, and client access lists. VPN, VLAN, SD-LAN, and security features help connect and segment business networks.
Installation Notes
The gateway measures 121 × 89 × 27mm and uses a DC 54V/1.2A power supply. Four Ethernet ports provide 802.3at PoE+ output with a total budget of up to 55W. Operating temperature is -20°C to 55°C with 5%-95% non-condensing humidity.
| General | |
| Model | WI-AC105P |
| Hardware Version | V2 |
| Product Type | High-performance cloud PoE gateway |
| Hardware | |
| Interfaces | 1 × 10/100/1000 Mbps PoE+ RJ45 LAN port 3 × 10/100/1000 Mbps PoE+ RJ45 LAN/WAN ports 1 × 10/100/1000 Mbps RJ45 WAN port |
| Memory | 512 MB RAM 16 MB Flash |
| AP Unified Configuration | Supports up to 32 APs |
| Power Supply | 54 V DC / 1.2 A |
| Maximum Power Consumption | 63 W with PoE load |
| Maximum PoE Power Budget | 55 W |
| Maximum PoE Output Per Port | IEEE 802.3at |
| Performance | |
| Recommended Bandwidth - Dynamic IP | Upload: 940 Mbps Download: 940 Mbps |
| Recommended Bandwidth - Static IP | Upload: 940 Mbps Download: 940 Mbps |
| Recommended Bandwidth - PPPoE | Upload: 860 Mbps Download: 880 Mbps |
| Network and Routing | |
| Network Access | PPPoE dial-up, DHCP Client, Static IP |
| Routing | Static routing Policy-based routing Carrier address routing Active/standby mode Source-address-based load balancing Flow-based load balancing Port-based weighted load balancing |
| WAN Load Balancing | Supported |
| Flow Control | Custom flow control policies IP-based automatic bandwidth assignment |
| Traffic Audit | Real-time traffic audit, IP traffic visualization |
| Authentication | Captive portal: One-Key Authentication Pre-Shared Password Local User Authentication Voucher and SMS Authentication RADIUS Authentication |
| Security and VPN | |
| Security Features | ACL DHCP static assignment MAC address filtering Dynamic ARP Static ARP binding NAT Port mapping |
| VPN Protocols | OpenVPN, PPTP, L2TP, IPsec |
| Behavior Management | Time-based and IP-policy-based access control, website filtering |
| Application Recognition | Supported |
| VLAN | IEEE 802.1Q VLAN tagging |
| SD-LAN | Supported |
| ONVIF | Supported |
| AP Management | |
| AP Management Features | Automatic AP discovery RF optimization Batch configuration and overview Multi-SSID configuration SSID hiding Channel settings Transmit power settings AP online upgrade STA blacklist and whitelist |
| Other Protocols | |
| DHCP | DHCP Server, DHCP Client, DHCP Option 43/138 |
| DNS | DNS Server, DDNS |
| Management | |
| Local Management | Web-based management |
| Cloud Management | Remote management via Wi-Tek Cloud |
| Mechanical | |
| Product Dimensions | 121 × 89 × 27 mm |
| Product Weight | 0.9 kg |
| Package Weight | 1.6 kg |
| Environmental | |
| Operating Temperature | -20 to 55 °C (-4 to 131 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating Humidity | 5% to 95%, non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| Package Contents | |
| Included Items | AC gateway × 1 Power adapter × 1 Quick installation guide × 1 |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
