Product Overview

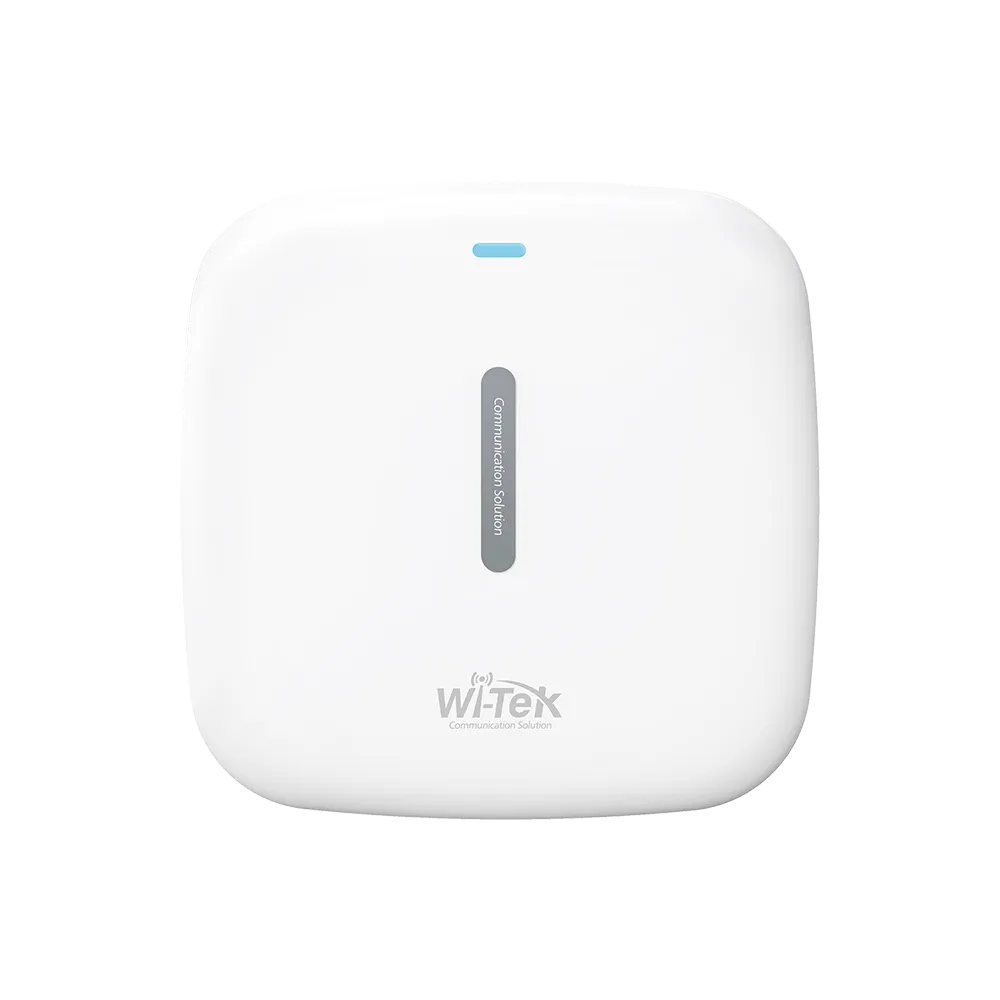

WI-AP218AX V2 is a Wi-Fi 6 dual-band ceiling-mount access point designed for high-density indoor environments such as offices, hotels, stadiums, and supermarkets. It supports IEEE 802.11a/b/g/n/ac/ax with combined wireless speeds up to 1775Mbps, 2×2 MU-MIMO, OFDMA, 1024-QAM, and Gigabit Ethernet connectivity. 802.3at PoE, cloud management, fast roaming, load balancing, and automatic channel and power adjustment support flexible and efficient network deployment.
Key Configuration
Model: WI-AP218AX V2 | Wireless Standard: IEEE 802.11a/b/g/n/ac/ax | Data Rate: 2.4GHz up to 574Mbps, 5GHz up to 1201Mbps | MIMO: 2×2 on 2.4GHz and 5GHz | Antenna: 3dBi on 2.4GHz and 5GHz | Connectivity: 2×10/100/1000Mbps Base-T Ethernet ports | Power: 802.3at PoE or 12V DC/2A | Coverage: Up to 140m²
Key Features
- · Wi-Fi 6 dual-band connectivity with combined speeds up to 1775Mbps
- · 2.4GHz data rates up to 574Mbps and 5GHz data rates up to 1201Mbps
- · 2×2 MU-MIMO and OFDMA technology for efficient high-density connectivity
- · 1024-QAM modulation improves throughput compared with 256-QAM
- · Two Gigabit Ethernet ports with WAN support for 802.3at PoE input
- · Supports 802.3at PoE or 12V DC/2A power supply
- · Supports up to 250 wireless clients, with 80 clients recommended
- · Fast roaming and load balancing improve mobility and client distribution
- · Multiple SSIDs with IEEE 802.1Q VLAN and SSID-to-VLAN mapping
- · Cloud, web-based, and AC management with automatic channel and power adjustment
Technical Context
OFDMA divides wireless channels into smaller resource units, allowing multiple clients to transmit efficiently and reducing latency in congested environments. MU-MIMO enables simultaneous communication with multiple compatible devices, while 1024-QAM carries more data per symbol to increase throughput. Automatic channel and transmission-power adjustment helps reduce interference in multi-access-point deployments.
Installation Notes

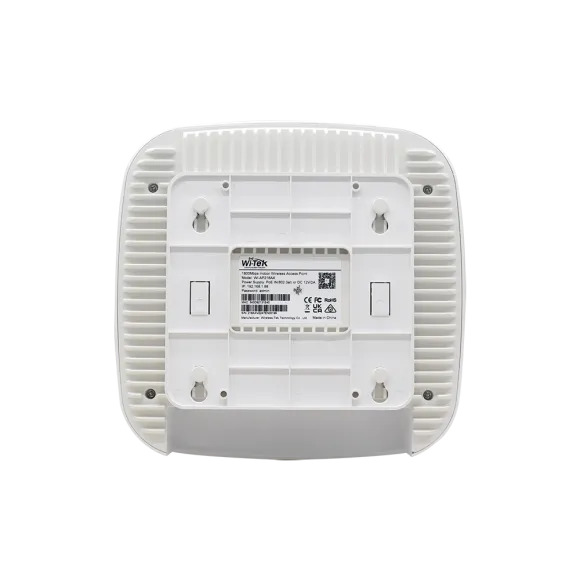

The access point is designed for ceiling-mounted installation and measures 206 × 206 × 41mm. It can receive data and power through one Ethernet cable using 802.3at PoE or operate from a 12V DC/2A input. Operating temperature is -20°C to 55°C with 5%-95% non-condensing humidity.
| General | |
| Model | WI-AP218AX |
| Hardware Version | V2 |
| Product Type | Wi-Fi 6 dual-band indoor ceiling-mount access point |
| Hardware | |
| Memory | 512 MB RAM 128 MB Flash |
| Interfaces | 2 × 10/100/1000 Mbps Base-T Ethernet ports WAN port supports 802.3at PoE input |
| Button | 1 × Reset button |
| Power Supply | 802.3at PoE input or 12 V DC / 2 A |
| Maximum Power Consumption | 16 W |
| Wireless | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Maximum / Recommended Clients | 250 / 80 |
| Data Rates | 2.4 GHz: up to 574 Mbps 5 GHz: up to 1201 Mbps |
| MIMO | 2.4 GHz: 2 × 2 5 GHz: 2 × 2 |
| Antenna Gain | 2.4 GHz: 3 dBi 5 GHz: 3 dBi |
| Frequency | 2.4 GHz: 2.4 GHz to 2.484 GHz 5 GHz: 5.150 GHz to 5.850 GHz |
| Channel Width | 2.4 GHz: 20/40 MHz 5 GHz: 20/40/80/160 MHz |
| Maximum Transmit Power | 23 dBm |
| Coverage Range | 140 m² Measured in an unobstructed ideal environment. Actual coverage depends on client performance and environmental interference. |
| Software Features | |
| Wireless Modes | Fit AP, Repeater, Wireless Router, WISP Default: Fit AP mode |
| LAN Configuration | Static IP, Dynamic IP |
| WAN Configuration | Static IP, Dynamic IP, PPPoE Client |
| Wireless Configuration | Wireless enable/disable, SSID modification, SSID hiding |
| Wireless Security | WPA-TKIP, WPA2-AES, WPA1/WPA2-Mixed, WPA-Enterprise, WPA2-Enterprise, WPA2/WPA3-Mixed |
| VLAN | IEEE 802.1Q VLAN, SSID-to-VLAN mapping |
| Wi-Fi Schedule | Yes |
| RF Parameters | Adjustable country Automatic channel width selection Automatic frequency selection Adjustable transmission power Maximum associated stations, default 128 Weak signal rejection threshold, default -95 dBm User isolation, disabled by default Wi-Fi Multimedia (WMM) |
| Advanced Features | Multiple SSIDs, up to 8 per radio Ping Watchdog Scheduled reboot DHCP Server NTP Server Diagnostics: Ping, Traceroute |
| Status Monitoring | LAN/WAN information Wireless information System information Radio status Real-time flow chart Wireless terminal stations SSID list DHCP client ARP table Routing table |
| Management | Device discovery tools Local web-based management Remote management via cloud platforms and applications AC management |
| Mechanical | |
| Product Dimensions | 206 × 206 × 41 mm |
| Package Dimensions | 260 × 249 × 76 mm |
| Product Weight | 0.85 kg |
| Package Weight | 1.2 kg |
| Installation | Ceiling-mounted |
| Environmental | |
| Operating Temperature | -20 to 55 °C (-4 to 131 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating Humidity | 5% to 95%, non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| Package Contents | |
| Included Items | Access point × 1 Plastic anchors × 4 Self-tapping screws × 4 Ethernet cable × 1 Quick installation guide × 1 |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
