Product Overview

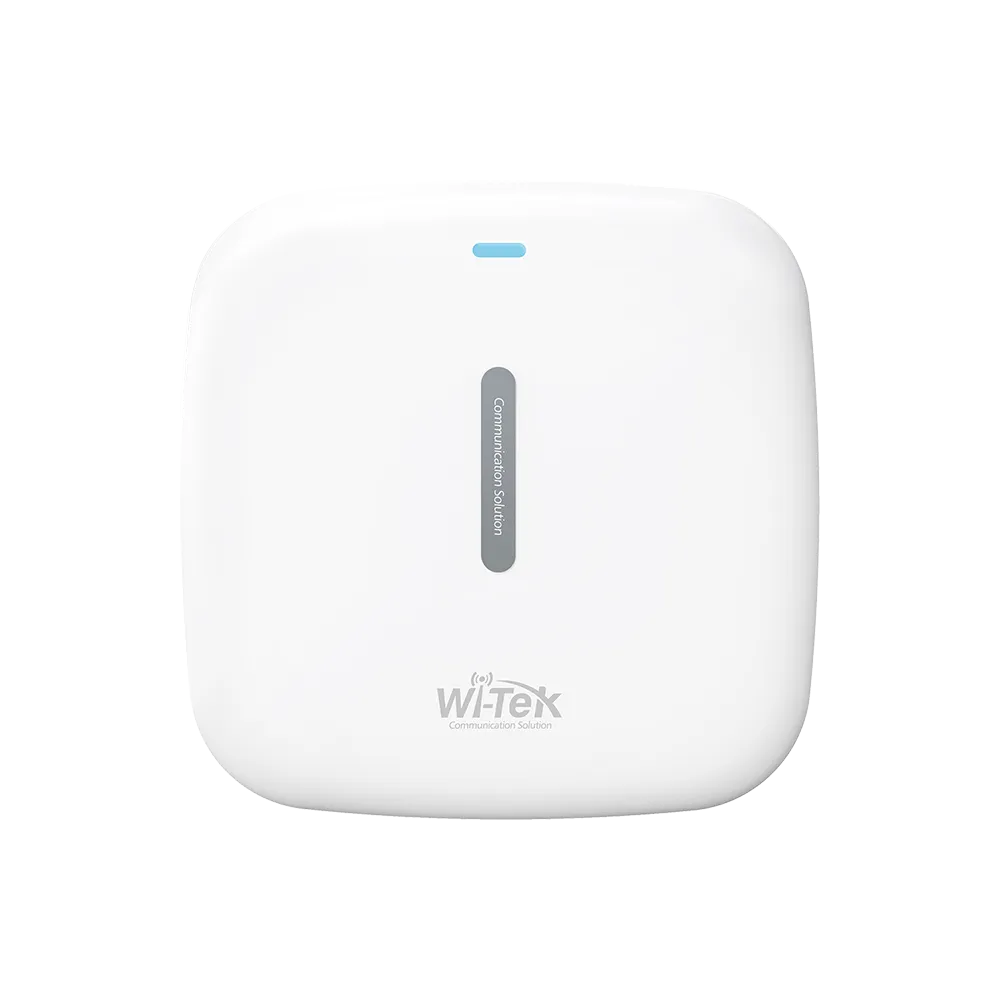

WI-AP219AX V2 is a Wi-Fi 6 dual-band ceiling-mount access point designed for high-density indoor environments such as offices, hotels, stadiums, and supermarkets. It supports IEEE 802.11a/b/g/n/ac/ax with combined wireless speeds up to 5400Mbps, 2×2 MU-MIMO on 2.4GHz, 4×4 MU-MIMO on 5GHz, OFDMA, and 1024-QAM. A 2.5 Gigabit Ethernet port, 802.3at PoE, cloud management, fast roaming, and automatic channel and power adjustment support high-performance network deployment.
Key Configuration
Model: WI-AP219AX V2 | Wireless Standard: IEEE 802.11a/b/g/n/ac/ax | Data Rate: 2.4GHz up to 574Mbps, 5GHz up to 4800Mbps | MIMO: 2×2 on 2.4GHz, 4×4 on 5GHz | Antenna: 4dBi on 2.4GHz and 5GHz | Connectivity: 1×10/100/1000/2500Mbps and 1×10/100/1000Mbps Base-T Ethernet ports | Power: 802.3at PoE or 12V DC/2A | Coverage: Up to 160m²
Key Features
- · Wi-Fi 6 dual-band connectivity with combined speeds up to 5400Mbps
- · 2.4GHz data rates up to 574Mbps and 5GHz data rates up to 4800Mbps
- · 2×2 MU-MIMO on 2.4GHz and 4×4 MU-MIMO on 5GHz
- · OFDMA and 1024-QAM improve efficiency and throughput in dense environments
- · 2.5 Gigabit Ethernet port enhances overall wired network throughput
- · Supports 802.3at PoE or 12V DC/2A power supply
- · Supports up to 500 wireless clients, with 112 clients recommended
- · Fast roaming and load balancing improve mobility and client distribution
- · Multiple SSIDs with IEEE 802.1Q VLAN and SSID-to-VLAN mapping
- · Cloud, web-based, and AC management with automatic channel and power adjustment
Technical Context
OFDMA divides wireless channels into resource units so multiple clients can transmit efficiently with lower latency. MU-MIMO enables simultaneous communication with multiple compatible devices, while 1024-QAM increases the amount of data carried per symbol. The 160MHz channel width on the 5GHz band and the 2.5 Gigabit Ethernet interface help support high-throughput applications and dense client deployments.
Installation Notes

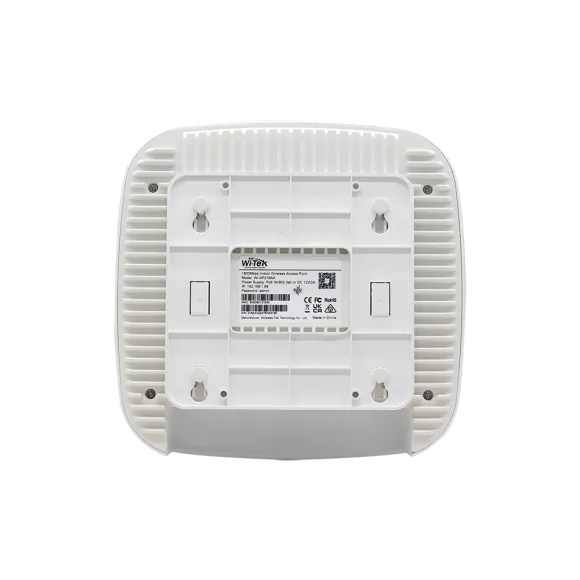

The access point is designed for ceiling-mounted installation and measures 206 × 206 × 41mm. It can receive data and power through Ethernet using 802.3at PoE or operate from a 12V DC/2A input. Operating temperature is -20°C to 55°C with 5%-95% non-condensing humidity.
| General | |
| Model | WI-AP219AX |
| Hardware Version | V2 |
| Product Type | Wi-Fi 6 dual-band indoor ceiling-mount access point |
| Hardware | |
| Memory | 512 MB RAM 128 MB Flash |
| Interfaces | 1 × 10/100/1000/2500 Mbps Base-T Ethernet port 1 × 10/100/1000 Mbps Base-T Ethernet port WAN port supports 802.3at PoE input |
| Button | 1 × Reset button |
| Power Supply | 802.3at PoE input or 12 V DC / 2 A |
| Maximum Power Consumption | 22 W |
| Wireless | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Maximum / Recommended Clients | 500 / 112 |
| Data Rates | 2.4 GHz: up to 574 Mbps 5 GHz: up to 4800 Mbps |
| MIMO | 2.4 GHz: 2 × 2 5 GHz: 4 × 4 |
| Antenna Gain | 2.4 GHz: 4 dBi 5 GHz: 4 dBi |
| Frequency | 2.4 GHz: 2.4 GHz to 2.484 GHz 5 GHz: 5.150 GHz to 5.850 GHz |
| Channel Width | 2.4 GHz: 20/40 MHz 5 GHz: 20/40/80/160 MHz |
| Maximum Transmit Power | 22 dBm |
| Coverage Range | 160 m² Measured in an unobstructed ideal environment. Actual coverage depends on client performance and environmental interference. |
| Software Features | |
| Wireless Modes | Fit AP, Repeater, Wireless Router, WISP Default: Fit AP mode |
| LAN Configuration | Static IP, Dynamic IP |
| WAN Configuration | Static IP, Dynamic IP, PPPoE Client |
| Wireless Configuration | Wireless enable/disable, SSID modification, SSID hiding |
| Wireless Security | WPA-TKIP, WPA2-AES, WPA1/WPA2-Mixed, WPA-Enterprise, WPA2-Enterprise, WPA2/WPA3-Mixed |
| VLAN | IEEE 802.1Q VLAN, SSID-to-VLAN mapping |
| Wi-Fi Schedule | Yes |
| RF Parameters | Adjustable country Automatic channel width selection Automatic frequency selection Adjustable transmission power Maximum associated stations, default 128 Weak signal rejection threshold, default -95 dBm User isolation, disabled by default Wi-Fi Multimedia (WMM) |
| Advanced Features | Multiple SSIDs, up to 8 per radio Ping Watchdog Scheduled reboot DHCP Server NTP Server Diagnostics: Ping, Traceroute |
| Status Monitoring | LAN/WAN information Wireless information System information Radio status Real-time flow chart Wireless terminal stations SSID list DHCP client ARP table Routing table |
| Management | Device discovery tools Local web-based management Remote management via cloud platforms and applications AC management |
| Mechanical | |
| Product Dimensions | 206 × 206 × 41 mm |
| Package Dimensions | 260 × 249 × 76 mm |
| Product Weight | 0.85 kg |
| Package Weight | 1.2 kg |
| Installation | Ceiling-mounted |
| Environmental | |
| Operating Temperature | -20 to 55 °C (-4 to 131 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating Humidity | 5% to 95%, non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| Package Contents | |
| Included Items | Access point × 1 Plastic anchors × 4 Self-tapping screws × 4 Ethernet cable × 1 Quick installation guide × 1 |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
