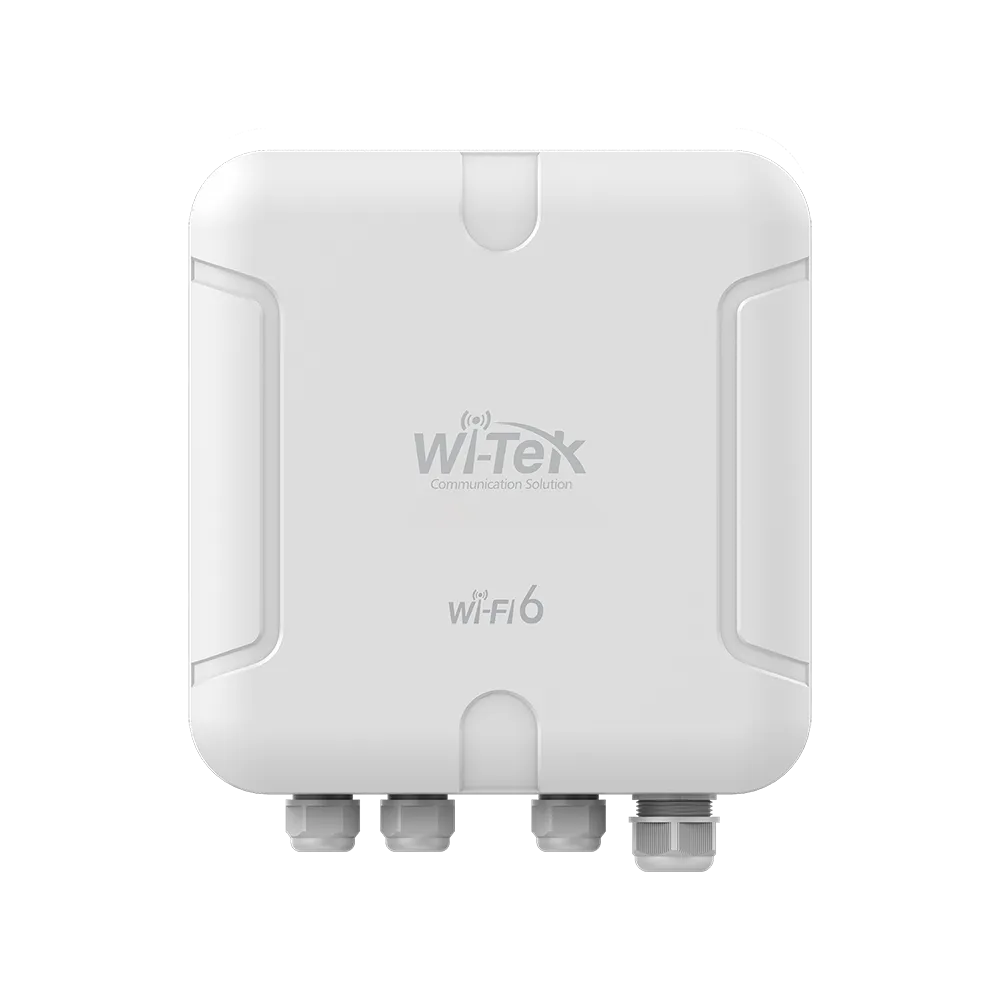

Wi-Tek - WI-AP520AX-D - Outdoor Weatherproof AP
Part number:
Price:
Highlight Features
● Blazing-fast Wi-Fi 6 Speed up to 5.4Gbps
● Built-in High-Gain Directional Antennas
● Flexible Internet Access with 1GE RJ45 Port and 2.5G SFP Slot
● 802.3at PoE Input for Flexible Deployment
● IP67-rated Ingress Protection
● 6kV Lighting Protection and 18kV ESD Protection
● Wide Operating Temperature: -40℃ ~ 70℃

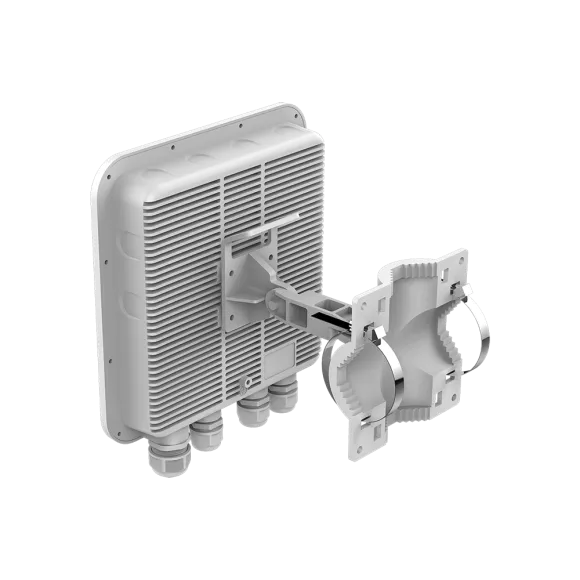

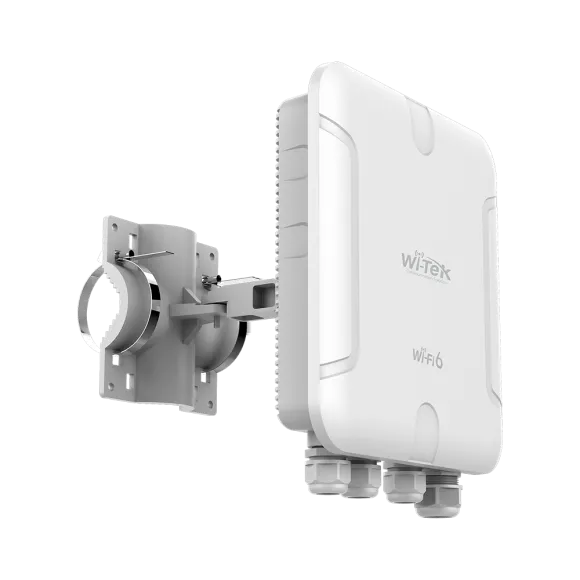

● Adjustable installation angle on horizontal and vertical, making deployment more flexible
● With MU-MIMO and OFDMA, Ensures Multiple Simultaneous Terminals Online
● Support 1024-QAM, Enables Data Rate Increase
● 160MHz Channel Width for Higher Bandwidth and Stable Transmission
● High-density Network Solution
● Cloud Management
| Model | WI-AP520AX-D |
| Hardware Features | |
| Memory | 1GB RAM, 128MB Flash |
| Interface | 1 × 2.5Gbps SFP Slot 1 × 10/100/1000Mbps RJ45 PoE+ Input Port 1 × Reset Button (long press for 8 seconds to restore the factory default configuration) |
| Power Supply | 802.3at PoE IN |
| Power Consumption (max) | 25.5W |
| Wireless Features | |
| Standards | IEEE 802.11a/b/g/n/ac/ax |
| Hardware Version | V1 |
| Max / Recommended Clients | 500 / 130 |
| Data Rates | 2.4GHz: up to 574Mbps 5GHz: up to 4804Mbps |
| MIMO | 2.4GHz: 2x2 MU-MIMO 5GHz: 4x4 MU-MIMO |
| Antenna Gain | 2.4GHz: 8dBi 5GHz: 12dBi |
| Antenna Beamwidth | Horizontal: 65° Vertical: 45° |
| Frequency | 2.4GHz: 2.4GHz-2.484GHz 5GHz: 5.150GHz-5.850GHz *Please follow national regulations to select the appropriate frequency. |
| Channel Width | 2.4GHz: 20/40MHz 5GHz: 20/40/80/160MHz |
| Max. TX Power | ≤23 dBm (2.4GHz) ≤22 dBm (5GHz) |
| Coverage Range | 2.4GHz max / recommended: 300m / 150m 5GHz max / recommended: 150m / 80m Note: Data is acquired in an unobstructed ideal environment. Signal coverage radius depends on client performance and environmental interference. |
| RF Parameter | Adjustable Count Auto Channel Width Selection Automatic Frequency Selection Adjustable Transmission Power Max Associated STA Weak Signal Rejection Threshold User Isolation Supports Wi-Fi Multimedia (WMM) |
| Software Features | |
| Wireless Mode | Fit AP / Repeater / Wireless Router / WISP Mode (Default: Fit AP mode) |
| Network | LAN: Static IP, Dynamic IP WAN: Static IP, Dynamic IP, PPPoE Client |
| Wireless | Wireless Disable or Enable Modify default SSID SSID Hiding |
| Wireless Security | WPA-TKIP, WPA2-AES, WPA1/WPA2-Mixed, WPA2/WPA3-Mixed, WPA/WPA2-Enterprise |
| VLAN | Supports IEEE 802.1Q VLAN Supports SSID-to-VLAN mapping |
| Wi-Fi Schedule | Yes |
| Advanced | Multiple SSID (Up to 8 per radio) Ping Watchdog Scheduled Reboot DHCP Server NTP Server Diagnosis: PING, TRACERT |
| Status Monitoring | Base Info: LAN/WAN Info, Wireless Info, System Info Radio Status Real Time Flow Chart Wireless Terminal Station SSID List DHCP Client ARP Table Routing Table |
| Management | Quickly scan devices by discovery tools Web-based local management Supports remote management by cloud platforms and applications Supports AC management |
| Reliability | |
| Ingress Protection | IP67 |
| Lightning Protection | 6kV |
| ESD Protection | Contact discharge ±18KV Air discharge ±18KV |
| Environment | |
| Operating Temperature | -40°C-70°C (-40°F-158°F) |
| Storage Temperature | -40°C-70°C (-40°F-158°F) |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Humidity | 5%~95% (non-condensing) |
| Others | |
| Certification | CE, FCC, ROHS, UKCA, RCM |
| Product Dimension (excluding mounting kits) | 308 × 320 × 69mm |
| Mounting Kit Dimension | 229 × 170 × 170mm |
| Weight (excluding mounting kits) | 3.19kg |
