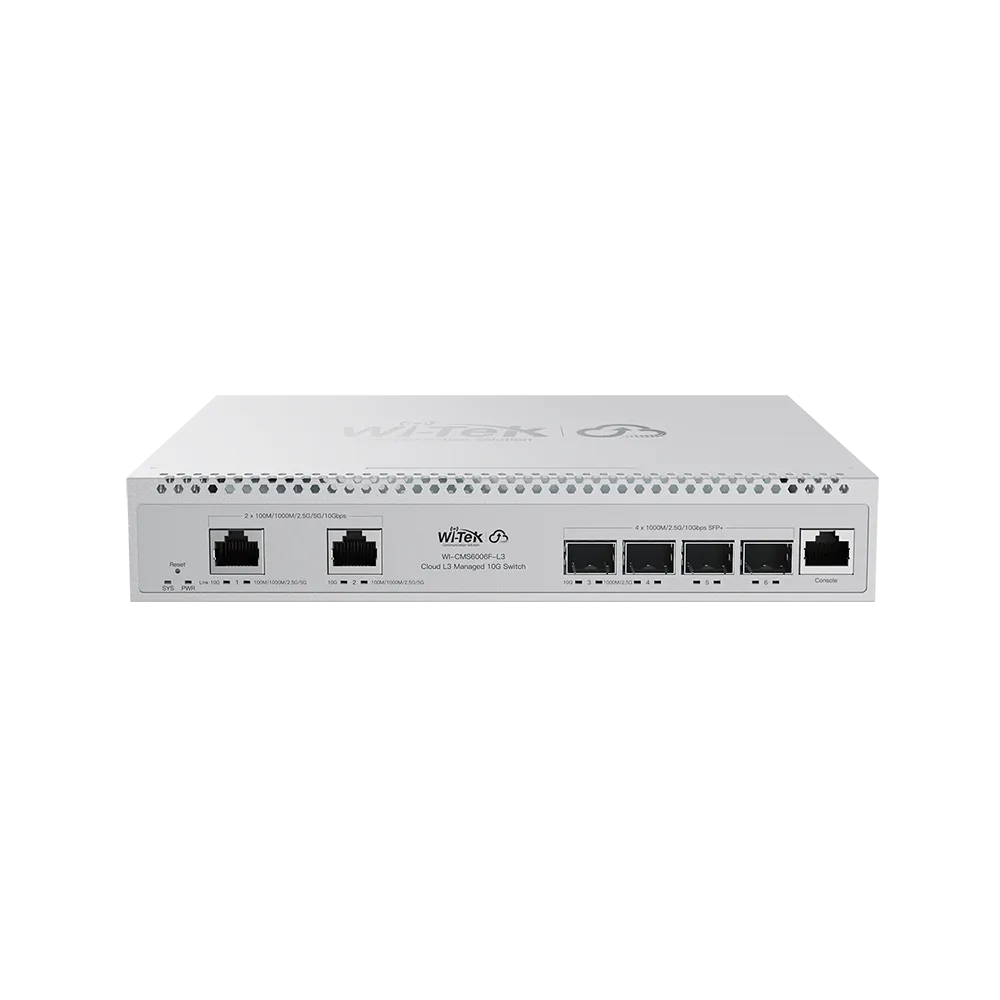

Wi-Tek - WI-CMS6006F-L3 - Cloud L3 Managed Non-PoE Switch

Product Overview

This Wi-Tek Cloud L3 Managed Non-PoE Switch is designed for compact aggregation and core network deployments that require 10Gbps copper and fiber connectivity, Layer 3 routing, advanced security, traffic management, and cloud-based maintenance. It provides two 10Gbps RJ45 ports, four 10Gbps SFP+ slots, intelligent fan control, and flexible magnetic, wall-mount, or desktop installation options.

Key Configuration

Product Type: Cloud L3 Managed Non-PoE Aggregation/Core Switch | RJ45 Ports: 2 x 10Gbps | SFP+ Slots: 4 x 10Gbps | PoE: Non-PoE | L3 Features: Static Routing, RIP, OSPF, DHCP Server/Relay | Security: ACL, DoS Defend, DHCP Snooping, 802.1X, IP-MAC-Port Binding | Network Features: QoS Policies, VLAN Protocols | Cooling: Intelligent Fan Control | Mounting: Magnetic, wall-mount, desktop installation | Management: Web, CLI, Telnet, SNMP, RMON, Cloud Management

Key Features

 · Provides two 10Gbps RJ45 ports for high-speed copper connectivity

 · Includes four 10Gbps SFP+ slots for high-speed fiber uplinks

 · Non-PoE design is suited for aggregation and core switching roles

 · L3 features include Static Routing, RIP, OSPF, and DHCP Server/Relay

 · Security functions include ACL, DoS Defend, DHCP Snooping, 802.1X, and IP-MAC-Port Binding

 · Rich QoS policies support flexible resource allocation

 · Multiple VLAN protocols help separate traffic and improve network reliability

 · Supports Web, CLI, Telnet, SNMP, and RMON management

 · Intelligent fan control helps manage cooling efficiently

 · Supports magnetic, wall-mount, and desktop installation

 · Cloud management enables easy and flexible remote maintenance

Technical Context

This switch is intended for managed aggregation and core environments where compact form factor, 10Gbps uplinks, and Layer 3 functionality are required. The combination of 10Gbps RJ45 and 10Gbps SFP+ connectivity allows it to bridge copper and fiber network segments in high-performance deployments.

Layer 3 routing, VLAN support, QoS policies, and security controls help segment traffic, prioritize services, and protect network reliability in enterprise, campus, hospitality, and surveillance backbone networks.

Installation Notes

This Cloud L3 managed non-PoE switch can be installed magnetically, wall-mounted, or placed on a desktop depending on the site layout. Plan RJ45/SFP+ port allocation, fiber modules, VLAN structure, routing design, and cooling clearance before deployment.
