Wi-Tek - WI-CPE110-KIT V2 - 2.4GHz 1KM Wireless Transmitter
Product Overview

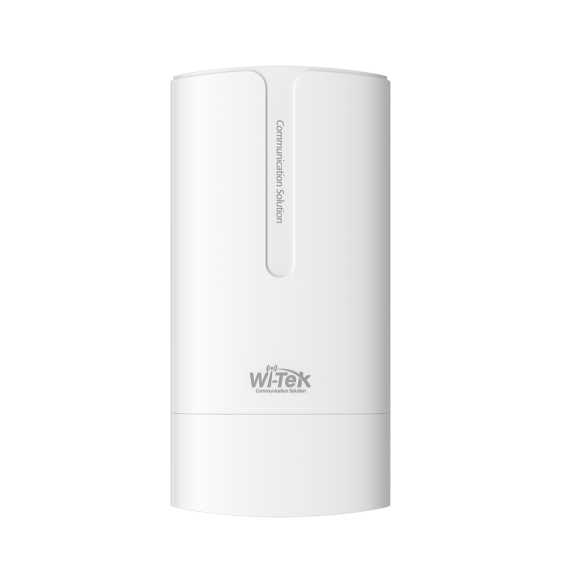

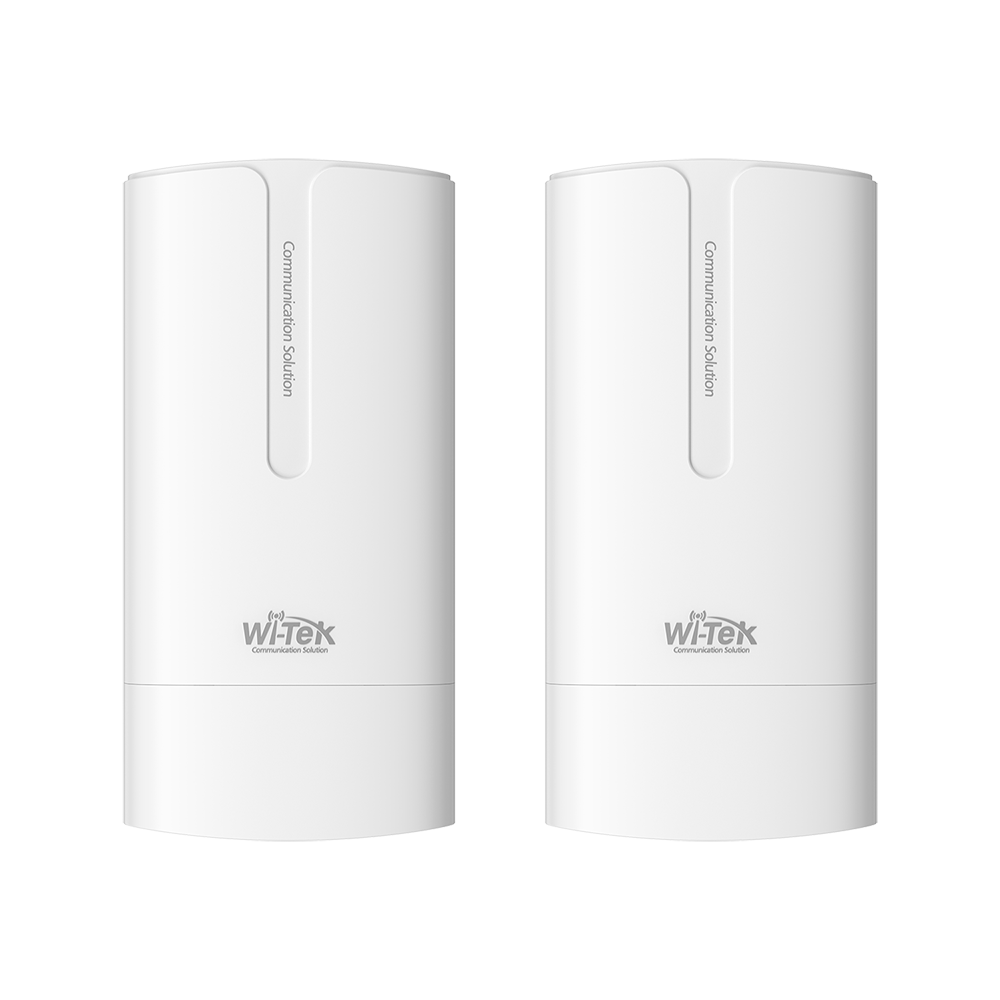

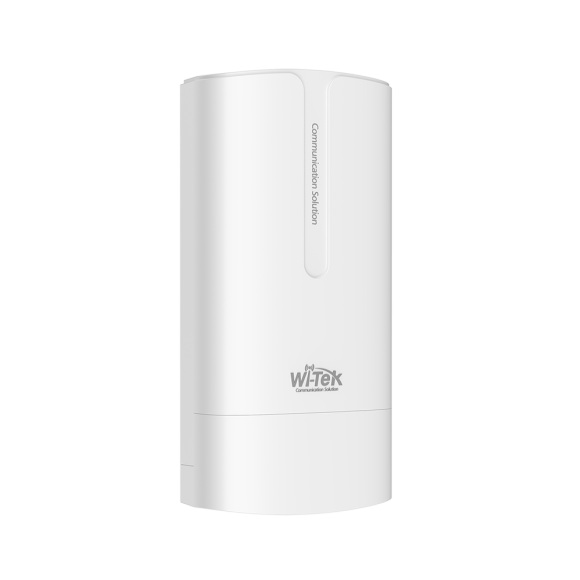

WI-CPE110-KIT V2 is an outdoor wireless bridge kit containing two 2.4 GHz transmitters for point-to-point or point-to-multipoint network links. It provides wireless rates up to 300 Mbps, a recommended transmission distance of 1 km, built-in 8 dBi directional antennas, and IP65 protection for outdoor CCTV and network deployments.
Key Configuration
Model: WI-CPE110-KIT V2 | Wireless Standard: IEEE 802.11b/g/n, 2.4 GHz | Wireless Rate: 300 Mbps max | Interfaces: 1 x 10/100 Mbps WAN PoE IN RJ-45, 1 x 10/100 Mbps LAN RJ-45 per unit | Antenna: Built-in 8 dBi directional | Power: 24 V passive PoE or 12 V DC | Protection: IP65
Key Features
- · Provides wireless rates up to 300 Mbps at 2.4 GHz
- · Supports wireless transmission distances up to 1 km
- · Includes a built-in 8 dBi directional antenna in each transmitter
- · Provides 1 x 10/100 Mbps WAN PoE IN port and 1 x 10/100 Mbps LAN port per unit
- · Supports 2x2 MU-MIMO and IEEE 802.11b/g/n standards
- · Supports base station and CPE operating modes for PTP and PTMP applications
- · Supports 24 V passive PoE or 12 V DC power supply
- · Provides automatic pairing with DIP switch and reset button controls
- · Supports local Web management and remote Wi-Tek Cloud management
- · Supports operation from -30°C to 60°C with IP65 ingress protection
Technical Context
The paired transmitters create a wireless Ethernet bridge between two network locations, reducing the need for wired links in open areas. Base station and CPE modes support point-to-point or point-to-multipoint deployment, while adjustable transmit power up to 21 ± 2 dBm, 2x2 MU-MIMO, and a directional 8 dBi antenna help maintain a stable outdoor connection.
Installation Notes

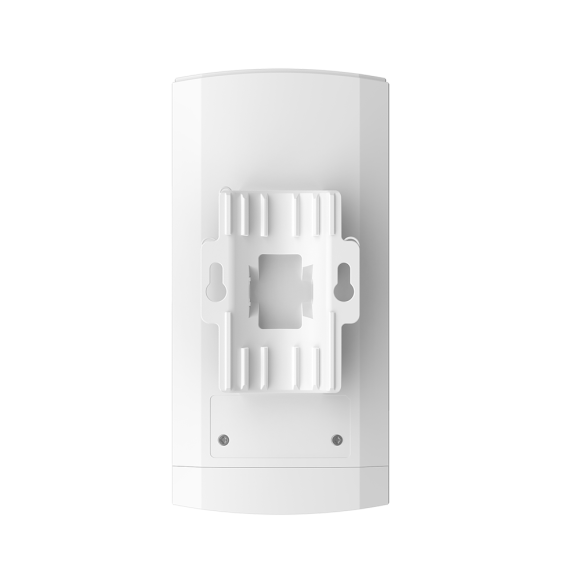

Install the transmitters on a wall or pole with clear line of sight between the two locations. Each unit measures 180 x 88 x 59 mm and supports 24 V passive PoE at 0.5 A or 12 V DC at 1 A. The outdoor housing is made from UV-stabilized plastic and supports -30°C to 60°C operation, with air ESD protection of ±8 kV, contact ESD protection of ±6 kV, and 2 kV lightning protection.
| General | |
| Product | WI-CPE110-KIT |
| Hardware Version | V2 |
| Wireless Application | 2.4 GHz, 300 Mbps, 1 km long-range outdoor wireless transmission |
| Networking Modes | Point-to-point (PTP), point-to-multipoint (PTMP) |
| Wireless | |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency Range | 2.401 GHz to 2.483 GHz, Channels 1 to 13 Please follow national regulations when selecting the appropriate frequency. |
| Maximum Wireless Rate | 300 Mbps at 2.4 GHz |
| Spatial Streams | 2 × 2 MU-MIMO |
| Antenna | Built-in 8 dBi directional antenna |
| Half-Power Beamwidth | Horizontal: 65° Vertical: 65° |
| Maximum Transmit Power | 21 ± 2 dBm, adjustable |
| Recommended Distance | 1 km |
| Interfaces | |

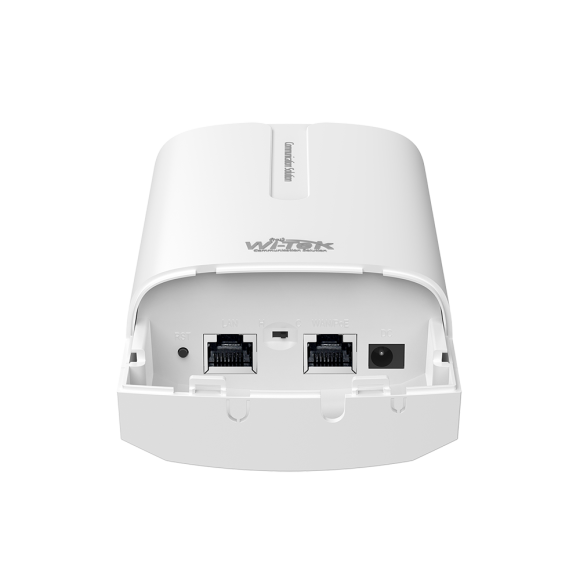

| WAN Port | 1 × 10/100 Mbps WAN PoE IN RJ45 port |
| LAN Port | 1 × 10/100 Mbps LAN RJ45 port |
| Power | |
| Power Supply | 24 V passive PoE at 0.5 A 12 V DC at 1 A |
| PoE Pin Assignment | 4/5 positive, 7/8 negative |
| Power Consumption | < 4 W |
| Controls and Indicators | |
| LED Indicators | Power, WAN, LAN, Wi-Fi, 4 × wireless signal indicators |
| DIP Switch | H: Base station mode for point-to-point and point-to-multipoint transmission C: CPE mode for connection to a wireless base station |
| Reset Button | Short press: Search for and pair with a wireless transmitter Long press over 5 seconds: Restore factory default configuration |
| Software Features | |
| Operating Modes | Base Station, CPE, Repeater, WISP |
| WAN Configuration | Dynamic IP, Static IP |
| Wireless Configuration | Wireless enable/disable, SSID hiding |
| Wireless Security | Open, WPA-TKIP, WPA2-AES, WPA/WPA2-Mixed, WPA-Enterprise, WPA2-Enterprise |
| Radio Parameters | WMM, weak signal rejection threshold, wireless channel, transmit power control, Auto/20/40 MHz channel bandwidth |
| System Tools | Wi-Fi connection filter, speed test, Ping Watchdog, scheduled reboot, NTP, Ping, Traceroute |
| Management | Local web management, remote Wi-Tek Cloud management |
| Mechanical | |
| Dimensions | 180 × 88 × 59 mm |
| Weight | 0.22 kg × 2 |
| Installation | Wall-mounted, pole-mounted |
| Material | Outdoor UV-stabilized plastic |
| Environmental | |
| Ingress Protection | IP65 |
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 5% to 95%, non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| ESD Protection | Air discharge: ±8 kV Contact discharge: ±6 kV |
| Lightning Protection | 2 kV |
| Package Contents | |
| Package Dimensions | 260 × 190 × 100 mm |
| Package Weight | 0.96 kg |
| Included Accessories | Wireless transmitter × 2 24 V PoE adapter × 2 Ethernet cable × 2 Plastic tie accessory × 2 Quick installation guide × 1 |
