Wi-Tek - WI-CPE111-KIT V3 - 2.4GHz 2KM Wireless Transmitter

Product Overview

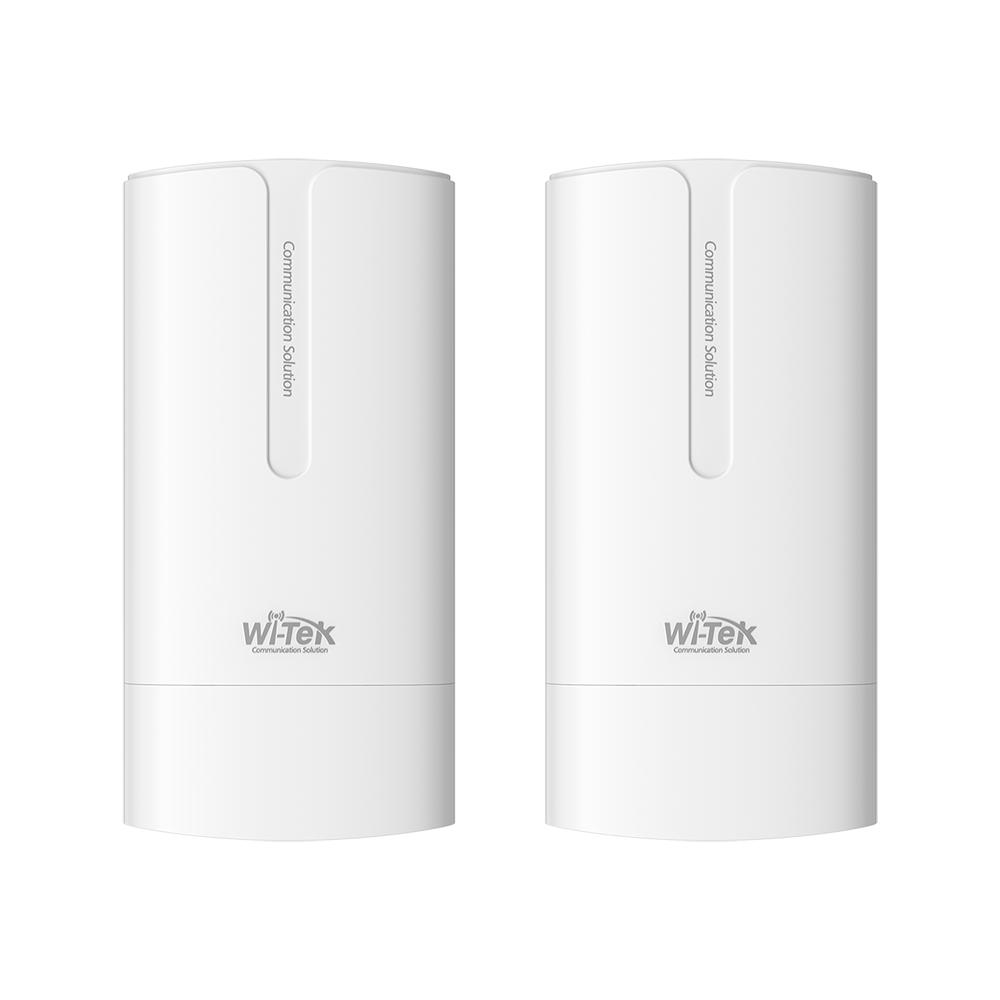

WI-CPE111-KIT V3 is an outdoor 2.4 GHz wireless bridge kit designed for CCTV video surveillance and data transmission. The two-unit kit supports point-to-point and point-to-multipoint networking, wireless rates up to 300 Mbps, transmission distances up to 2 km, and reliable outdoor operation with IP65 protection.

Key Configuration

Model: WI-CPE111-KIT V3 | Wireless Standard: IEEE 802.11b/g/n, 2.4 GHz | Wireless Rate: 300 Mbps max | Interfaces: 2 x 10/100 Mbps RJ-45 ports per unit | Antenna: Built-in 8 dBi directional antenna | Power: 24 V passive PoE | Protection: IP65

Key Features

• · Provides wireless rates up to 300 Mbps at 2.4 GHz
• · Supports wireless transmission distances up to 2 km
• · Includes a built-in 8 dBi directional antenna in each unit
• · Provides 2 x 10/100 Mbps RJ-45 ports per unit
• · Supports 2x2 MIMO with 20/40 MHz channel width
• · Supports base station, CPE, repeater, and WISP modes
• · Supports point-to-point and point-to-multipoint networking
• · Supports 24 V passive PoE input for combined power and data delivery
• · Supports DIP matching mode and remote Wi-Tek Cloud management
• · Provides IP65 protection and operation from -40°C to 70°C

Technical Context

The kit creates a wireless Ethernet bridge between outdoor network locations, reducing the need for long cable runs in CCTV and other open-area deployments. Its directional 8 dBi antennas, adjustable transmit power up to 20 dBm, 2x2 MIMO, and PTP/PTMP modes support flexible link planning and stable wireless communication.

Installation Notes

Mount the two units outdoors with a clear line of sight and use the included pole-mount kits. Each unit measures 167 x 88 x 52 mm and supports 24 V passive PoE input; maximum power consumption is 8 W. The IP65 enclosure supports -40°C to 70°C operation, with ±6 kV ESD protection and storage temperatures from -40°C to 85°C.
