Wi-Tek - WI-CPE511H-KIT V2 - 5GHz 3KM Wireless Transmitter
Product Overview

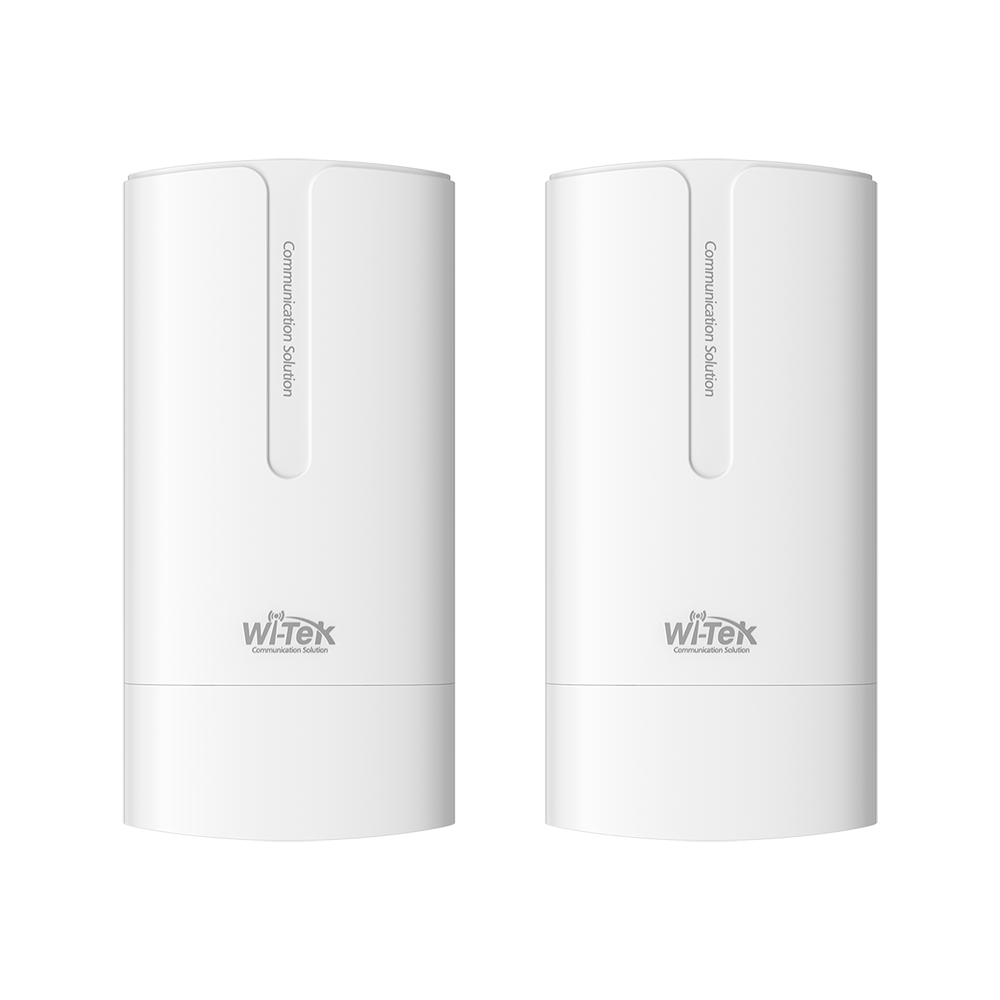

WI-CPE511H-KIT V2 is an outdoor 5 GHz wireless bridge kit containing two transmitters for point-to-point or point-to-multipoint network links. It provides wireless rates up to 867 Mbps, a recommended transmission distance of 3 km, built-in 12 dBi directional antennas, and IP65 protection for outdoor CCTV and network deployments.
Key Configuration
Model: WI-CPE511H-KIT V2 | Wireless Standard: IEEE 802.11a/n/ac, 5 GHz | Wireless Rate: 867 Mbps max | Interfaces: 1 x 10/100 Mbps WAN PoE IN RJ-45, 1 x 10/100 Mbps LAN RJ-45 per unit | Antenna: Built-in 12 dBi directional | Power: 24 V passive PoE | Protection: IP65
Key Features
- · Provides wireless rates up to 867 Mbps at 5 GHz
- · Supports wireless transmission distances up to 3 km
- · Includes a built-in 12 dBi directional antenna in each unit
- · Provides 1 x 10/100 Mbps WAN PoE IN port and 1 x 10/100 Mbps LAN port per unit
- · Supports 2x2 MU-MIMO and IEEE 802.11a/n/ac standards
- · Supports base station and CPE operating modes for PTP and PTMP applications
- · Supports 24 V passive PoE input at 0.5 A
- · Provides automatic pairing with DIP switch, LED display, and pairing button controls
- · Supports local Web management and remote Wi-Tek Cloud management
- · Supports operation from -40°C to 70°C with IP65 ingress protection
Technical Context
The paired transmitters create a high-speed wireless Ethernet bridge between outdoor network locations, reducing the need for long cable runs in CCTV and other open-area deployments. The 5 GHz radio, 2x2 MU-MIMO, adjustable transmit power up to 19 dBm, and directional 12 dBi antennas support stable long-distance links with flexible PTP or PTMP topology.
Installation Notes
Mount the two units on a wall or pole with clear line of sight between the locations. Each unit measures 180 x 88 x 59 mm and supports 24 V passive PoE at 0.5 A, with power consumption below 5 W. The UV-stabilized outdoor enclosure supports -40°C to 70°C operation, IP65 protection, ±8 kV air and ±6 kV contact ESD protection, and 2 kV lightning protection.
| General | |
| Product | WI-CPE511H-KIT |
| Hardware Version | V2 |
| Wireless Application | 5 GHz, 867 Mbps, 3 km long-range outdoor wireless transmission |
| Networking Modes | Point-to-point (PTP), point-to-multipoint (PTMP) |
| Wireless | |
| Wireless Standards | IEEE 802.11a/n/ac |
| Frequency Range | 5.150 GHz to 5.850 GHz Channels 36 to 64, 100 to 144, 149 to 165 Please follow national regulations when selecting the appropriate frequency. |
| Maximum Wireless Rate | 867 Mbps at 5 GHz |
| Spatial Streams | 2 × 2 MU-MIMO |
| Antenna Gain | Built-in 12 dBi directional antenna |
| Half-Power Beamwidth | Horizontal: 33° Vertical: 33° |
| Maximum Transmit Power | 19 dBm, adjustable |
| Recommended Distance | 3 km |
| Interfaces | |
| WAN Port | 1 × 10/100 Mbps WAN PoE IN RJ45 port |
| LAN Port | 1 × 10/100 Mbps LAN RJ45 port |
| Controls and Indicators | |
| LED Indicators | Power, WAN, LAN, Wi-Fi |
| DIP Switch | H: Base station mode for point-to-point and point-to-multipoint transmission C: CPE mode for connection to a wireless base station |
| LED Display | Displays the current operating mode and pairing group number |
| Quick Pairing Buttons | Press and hold the + or - button for 3 seconds to adjust the pairing group number. Use + to increase or - to decrease the pairing group number. |
| Reset Button | Long press over 5 seconds: Restore factory default configuration |
| Power | |
| Power Supply | 24 V passive PoE at 0.5 A |
| PoE Pin Assignment | 4/5 positive, 7/8 negative |
| Power Consumption | < 5 W |
| Software Features | |
| Operating Modes | Base Station, CPE, Repeater, WISP |
| WAN Configuration | Dynamic IP, Static IP |
| Wireless Configuration | Wireless enable/disable, SSID hiding |
| Wireless Security | Open, WPA-TKIP, WPA2-AES, WPA/WPA2-Mixed, WPA-Enterprise, WPA2-Enterprise |
| Radio Parameters | WMM Weak signal rejection threshold Wireless channel Transmit power control Auto/20/40/80 MHz channel bandwidth |
| System Tools | Wi-Fi connection filter, Speed Test, Ping Watchdog, scheduled reboot, NTP, Ping, Traceroute |
| Management | Local web management, remote Wi-Tek Cloud management |
| Mechanical | |
| Dimensions | 180 × 88 × 59 mm |
| Weight | 0.26 kg × 2 |
| Installation | Wall-mounted, pole-mounted |
| Material | Outdoor UV-stabilized plastic |
| Environmental | |
| Ingress Protection | IP65 |
| Operating Temperature | -40 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Operating Humidity | 5% to 95%, non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| ESD Protection | Air discharge: ±8 kV Contact discharge: ±6 kV |
| Lightning Protection | 2 kV |
| Package Contents | |
| Package Dimensions | 260 × 190 × 100 mm |
| Package Weight | 1.06 kg |
| Included Items | Wireless transmitter × 2 24 V PoE adapter × 2 Ethernet cable × 2 Plastic tie accessory × 2 Quick installation guide × 1 |
