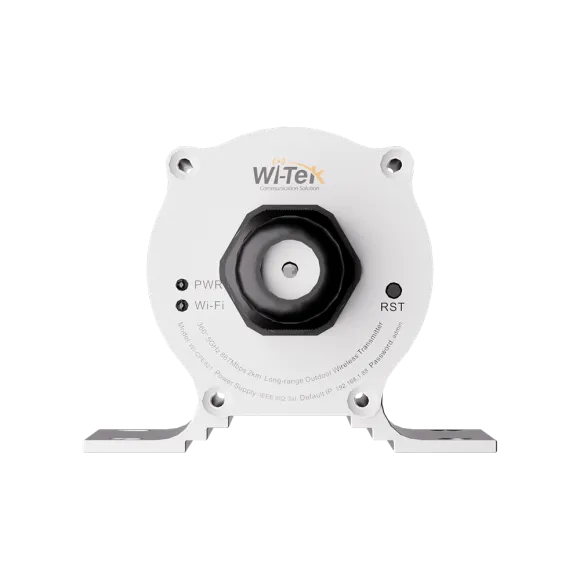

Wi-Tek - WI-CPE821 - 5GHz 2KM Omni Wireless Transmitter

Product Overview

The Wi-Tek WI-CPE821 is a 5GHz 867 Mbps omnidirectional wireless transmitter designed for long-range CCTV and PTMP wireless network applications. It provides 360-degree wireless transmission, supports distances up to 2 km, and includes a built-in 12 dBi dual-polarized omnidirectional antenna for wide-area point-to-multipoint coverage.

Key Configuration

Model: WI-CPE821 | Product Type: 5GHz Omnidirectional Wireless Transmitter | Wireless Speed: Up to 867 Mbps | Wireless Standard: IEEE 802.11a/n/ac | Transmission Range: Up to 2 km | Ethernet: 1 x 1000 Mbps port | Frequency Range: 5.150GHz-5.850GHz | Antenna: Built-in 12 dBi dual-polarized omnidirectional | Power: IEEE 802.3at PoE input | Protection: IP65

Key Features

 · Provides 360-degree omnidirectional wireless transmission for PTMP applications

 · Delivers up to 867 Mbps wireless speed over IEEE 802.11a/n/ac

 · Supports long-range wireless transmission up to 2 km

 · Includes one 1000 Mbps Ethernet port for high-speed wired connectivity

 · Supports open frequency operation from 5.150GHz to 5.850GHz

 · Adjustable transmission power up to 26dBm supports flexible deployment tuning

 · Built-in 12 dBi dual-polarized omnidirectional antenna supports wide-area coverage

 · Wi-Tek Cloud supports centralized management, ONVIF camera discovery, and network topology viewing

Technical Context

The WI-CPE821 is built for CCTV wireless backhaul and point-to-multipoint network designs where multiple remote devices need to connect through a central omnidirectional transmitter. Its 5GHz operation, 867 Mbps wireless rate, and adjustable transmit power help support stable long-range links across open outdoor environments.

Cloud-based ONVIF IP camera discovery and network topology visualization make the device useful for surveillance deployments where installers need centralized visibility into connected cameras and wireless infrastructure.

Installation Notes

The WI-CPE821 supports IEEE 802.3at PoE input and is designed for outdoor use with IP65 ingress protection. Its operating temperature range of -30 to 60 °C supports deployment in demanding exterior CCTV and wireless network environments.
