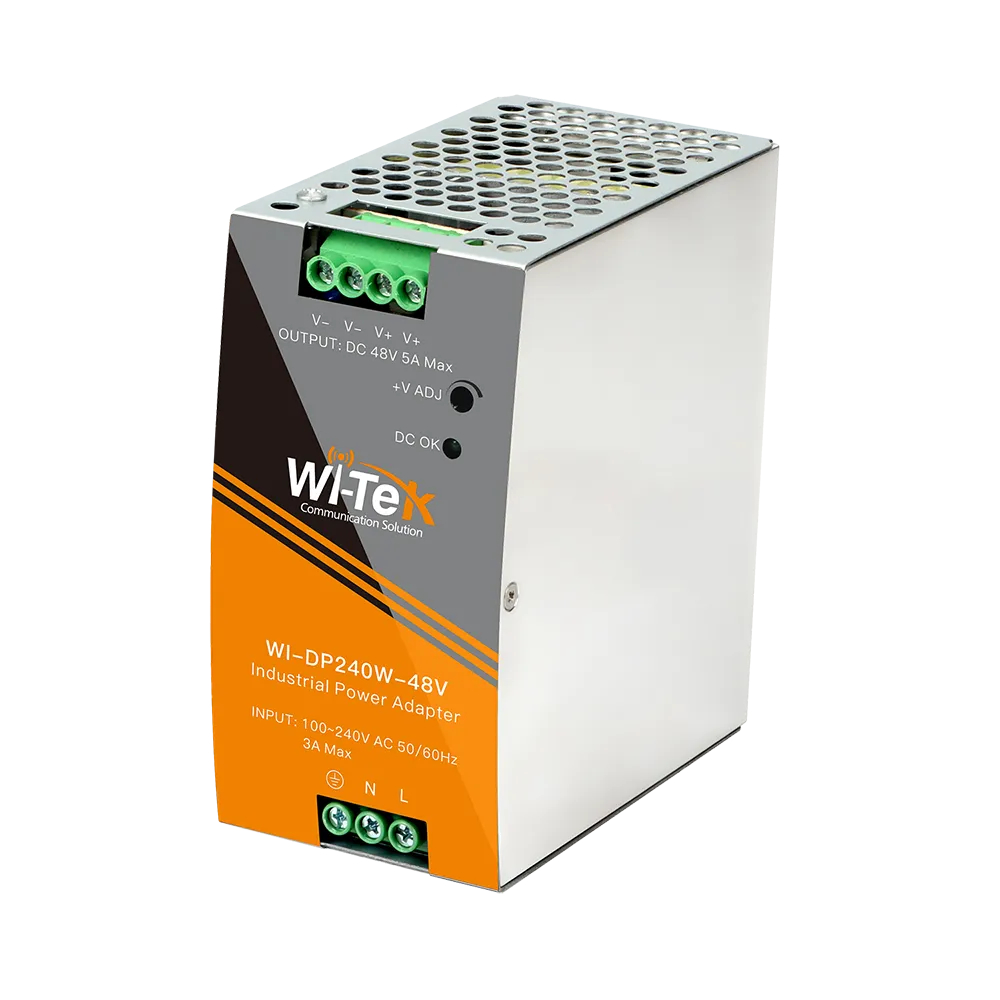

Wi-Tek - WI-DP240W-48V - 48V DIN-rail Power Adapter
Product Overview
WI-DP240W-48V is a DIN-rail power adapter designed to provide stable DC power for industrial switches and other equipment. It delivers an adjustable 48-55 V DC output at up to 5 A, with a maximum rated power of 240 W, and supports wide-range AC or DC input.
Key Configuration
Model: WI-DP240W-48V | Output: 48 V DC, 0-5 A, 240 W max | Input: 90-264 V AC, 47-63 Hz, or 127-370 V DC | Adjustment: 48-55 V DC | Installation: DIN-rail mounting | Protection: Short circuit, overload, over-voltage, and over-temperature protection
Key Features
- · Provides 48 V DC output with adjustable voltage from 48 V to 55 V
- · Delivers up to 5 A rated output current and 240 W maximum power
- · Supports universal 90-264 V AC input for global mains compatibility
- · Supports 127-370 V DC input
- · Provides typical efficiency of 88%
- · Maintains maximum ripple and noise of 150 mVp-p
- · Includes overload protection from 105%-130% of rated output power with automatic hiccup-mode recovery
- · Includes over-voltage and over-temperature protection
- · Supports operation from -20°C to 70°C with 20%-95% non-condensing humidity
Technical Context
The adjustable DC output allows the adapter to match the voltage requirements of industrial switches and other DC equipment. Overload and over-voltage protection use automatic hiccup-mode recovery, while over-temperature protection shuts down the output and requires repowering after the fault condition is removed, helping protect connected equipment during abnormal operation.
Installation Notes
The adapter is intended for DIN-rail installation and measures 63 x 113 x 125 mm, with a product weight of 1 kg. Provide clearances of at least 40 mm above, 20 mm below, and 5 mm on each side; increase side clearance to 10-15 mm when adjacent equipment is a heat source. Derating may be required under low input voltage or at elevations above 2000 m.
| General | |
| Model | WI-DP240W-48V |
| Product Type | DIN-rail Power Adapter |
| Installation | DIN-rail |
| Output | |
| DC Output Voltage | 48 V DC |
| Rated Current | 5 A maximum |
| Current Range | 0-5 A |
| Rated Power | 240 W maximum |
| Output Voltage Adjustment Range | 48-55 V DC |
| Voltage Tolerance | ±2.0% |
| Line Regulation | 0.5% |
| Load Regulation | 1.0% |
| Ripple and Noise | 150 mV peak-to-peak maximum |
| Output Terminals | V+, V+, V-, V- |
| Input | |
| AC Input Voltage Range | 90-264 V AC |
| DC Input Voltage Range | 127-370 V DC |
| Input Frequency Range | 47-63 Hz |
| AC Input Current | 2.5 A at 115 V AC 1.3 A at 230 V AC |
| Efficiency | 88% typical |
| Inrush Current | 20 A at 115 V AC 35 A at 230 V AC |
| Leakage Current | <1 mA at 240 V AC |
| Timing Characteristics | |
| Setup and Rise Time | 1500 ms setup time, 100 ms rise time at 115 V AC and full load 3000 ms setup time, 100 ms rise time at 230 V AC and full load |
| Hold-Up Time | 16 ms at 230 V AC and full load 12 ms at 115 V AC and full load |
| Protection | |
| Overload Protection | 105-130% of rated output power Protection type: Hiccup mode Automatically recovers after the fault condition is removed |
| Over-Voltage Protection | 56-65 V Protection type: Hiccup mode; automatically recovers after the fault condition is removed |
| Over-Temperature Protection | Output voltage shutdown; power cycling is required for recovery |
| Short-Circuit Protection | Supported |
| Environmental | |
| Operating Temperature | -20°C to 70°C Refer to the derating curve. |
| Operating Relative Humidity | 20% to 95%, non-condensing |
| Storage Temperature | -40°C to 85°C |
| Storage Relative Humidity | 10% to 95%, non-condensing |
| Installation Clearance | Top: 40 mm Bottom: 20 mm Left and right: 5 mm Increase the side clearance to 10-15 mm when an adjacent device is a heat source. |
| Physical Characteristics | |
| Dimensions (W × H × D) | 63 × 113 × 125 mm |
| Product Weight | 1 kg |
| Cooling | Natural convection |
| Status Indicator | DC OK LED indicates normal operation when connected |
| Package Contents | |
| Package Includes | Power adapter × 1 |
| Unless otherwise specified, parameters are measured at 230 V AC input, rated load and 25°C ambient temperature. | |
