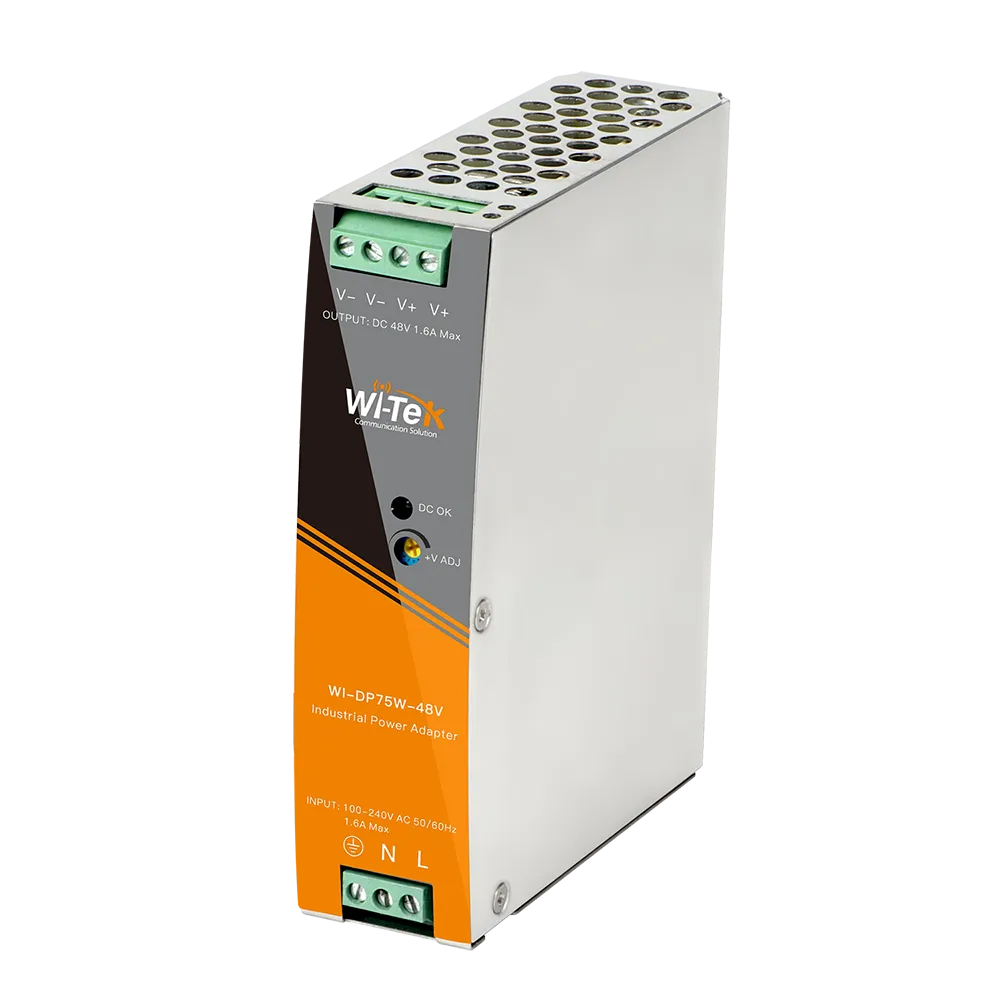

Wi-Tek - WI-DP75W-48V - 48V DIN-rail Power Adapter
Product Overview
WI-DP75W-48V is a DIN-rail power adapter designed to provide stable DC power for industrial equipment and switches. It delivers an adjustable 48-55 V DC output at up to 1.6 A, with a maximum rated power of 76.8 W, and supports universal AC input from 90-264 V.
Key Configuration
Model: WI-DP75W-48V | Output: 48 V DC, 0-1.6 A, 76.8 W max | Input: 90-264 V AC, 47-63 Hz, or 127-370 V DC | Adjustment: 48-55 V DC | Installation: DIN-rail mounting | Protection: Short circuit, overload, over-voltage, and over-temperature protection
Key Features
- · Provides 48 V DC output with adjustable voltage from 48 V to 55 V
- · Delivers up to 1.6 A rated output current and 76.8 W maximum power
- · Supports universal 90-264 V AC input for use with global mains voltages
- · Supports 127-370 V DC input
- · Provides typical efficiency of 88.00%
- · Includes short circuit and overload protection with automatic recovery after fault removal
- · Includes over-voltage and over-temperature protection with shutdown and restart recovery
- · Supports operation from -20°C to 70°C with 20%-95% non-condensing humidity
Technical Context
The adjustable DC output allows the power adapter to be matched to the voltage requirements of industrial switches and other DC equipment. Short circuit, overload, over-voltage, and over-temperature protection help limit damage during abnormal operating conditions, while the 150 mVp-p maximum ripple and noise specification supports stable power delivery.
Installation Notes
The adapter is intended for DIN-rail installation and weighs 0.51 kg. Provide installation clearances of at least 40 mm above, 20 mm below, and 5 mm on each side; increase side clearance to 10-15 mm when adjacent equipment is a heat source. Derating may be required at low input voltage or at elevations above 2000 m.
| General | |
| Model | WI-DP75W-48V |
| Product Type | DIN-rail Power Adapter |
| Installation | DIN-rail |
| Output | |
| DC Output Voltage | 48 V DC |
| Rated Current | 1.6 A maximum |
| Current Range | 0-1.6 A |
| Rated Power | 76.8 W maximum |
| Output Voltage Adjustment Range | 48-55 V DC |
| Voltage Tolerance | ±2.0% |
| Line Regulation | 0.5% |
| Load Regulation | 1.0% |
| Ripple and Noise | 150 mV peak-to-peak maximum |
| Output Terminals | V+, V+, V-, V- |
| Input | |
| AC Input Voltage Range | 90-264 V AC |
| DC Input Voltage Range | 127-370 V DC |
| Input Frequency Range | 47-63 Hz |
| AC Input Current | 1.45 A at 115 V AC 0.9 A at 230 V AC |
| Efficiency | 88.00% typical |
| Inrush Current | 20 A at 115 V AC 35 A at 230 V AC |
| Leakage Current | <1 mA at 240 V AC |
| Timing Characteristics | |
| Setup and Rise Time | 1200 ms setup time, 60 ms rise time at 230 V AC and full load 2000 ms setup time, 60 ms rise time at 115 V AC and full load |
| Hold-Up Time | 60 ms at 230 V AC and full load 12 ms at 115 V AC and full load |
| Protection | |
| Overload Protection | 105-130% of rated output power Protection type: Hiccup mode Automatically recovers after the fault condition is removed |
| Over-Voltage Protection | 56-65 V Protection type: Output voltage shutdown; power cycling is required for recovery |
| Over-Temperature Protection | Output voltage shutdown; power cycling is required for recovery |
| Short-Circuit Protection | Supported |
| Environmental | |
| Operating Temperature | -20°C to 70°C Refer to the derating curve. |
| Operating Relative Humidity | 20% to 95%, non-condensing |
| Storage Temperature | -40°C to 85°C |
| Storage Relative Humidity | 10% to 95%, non-condensing |
| Installation Clearance | Top: 40 mm Bottom: 20 mm Left and right: 5 mm Increase the side clearance to 10-15 mm when an adjacent device is a heat source. |
| Physical Characteristics | |
| Dimensions (W × H × D) | 39.5 × 125 × 100.5 mm |
| Product Weight | 0.51 kg |
| Cooling | Natural convection |
| Status Indicator | DC OK LED indicates normal operation when connected |
| Package Contents | |
| Package Includes | Power adapter × 1 |
| Unless otherwise specified, parameters are measured at 230 V AC input, rated load and 25°C ambient temperature. | |
