Product Overview

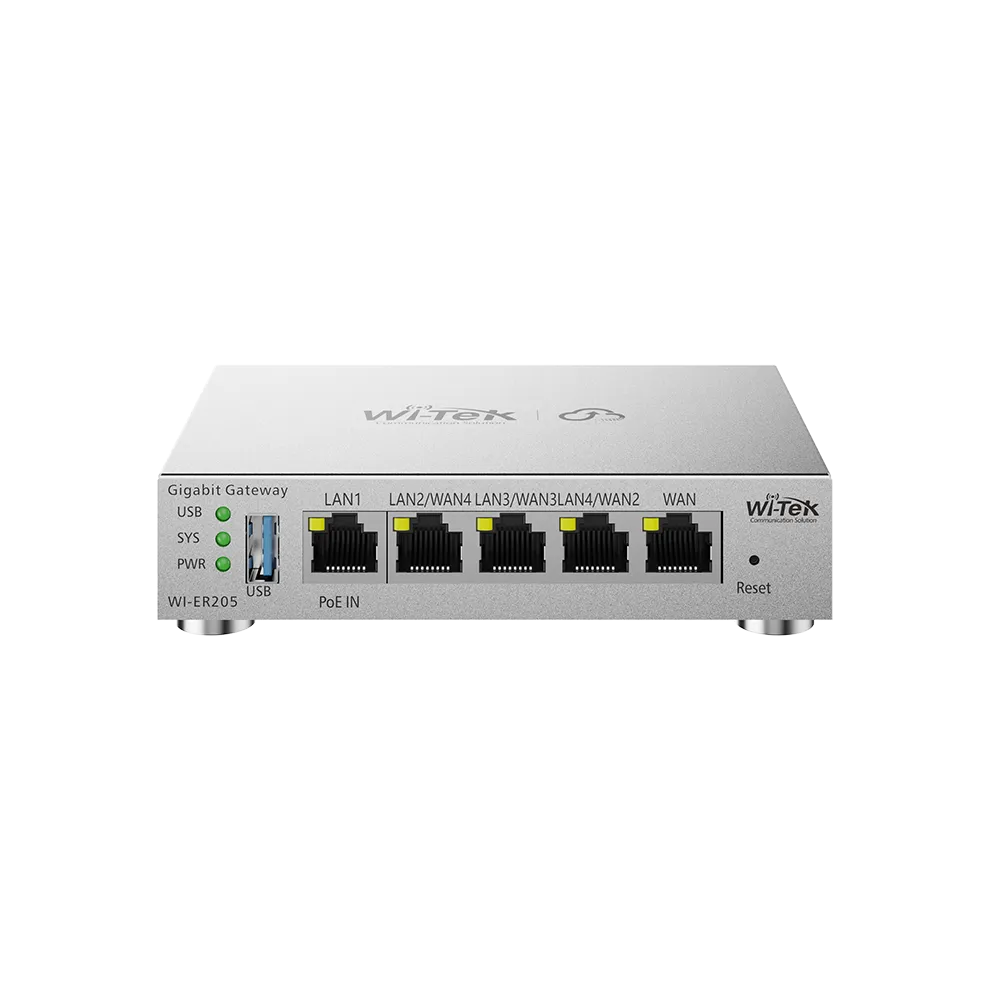

WI-ER205 is a compact cloud-managed Gigabit gateway with an integrated access point management system for hotel, office, and SMB networks. It provides multi-WAN connectivity, VPN protocols, security policies, bandwidth control, and unified management for up to 32 access points. Magnetic installation, 802.3af/at PoE input, and USB tethering support flexible deployment in different network environments.
Key Configuration
Model: WI-ER205 | Interfaces: 1×10/100/1000Mbps PoE+ IN LAN, 3×10/100/1000Mbps LAN/WAN, 1×10/100/1000Mbps WAN, 1×USB 2.0 | AP Management: Up to 32 APs | Recommended Bandwidth: Up to 922Mbps upload/download | Power: 802.3af/at PoE input or USB-C 5V/3A | Dimensions: 129 × 85 × 28mm
Key Features
- · Gigabit Ethernet connectivity with one PoE+ input LAN port, three LAN/WAN ports, and one WAN port
- · Magnetic installation supports flexible on-site deployment
- · Supports 802.3af/at PoE input or USB-C 5V/3A power
- · USB 2.0 port supports USB tethering through an Android smartphone
- · Unified configuration and management for up to 32 access points
- · Multi-WAN load balancing distributes traffic across multiple Internet connections
- · Supports OpenVPN, IPsec, PPTP, and L2TP VPN protocols
- · Security features include ACL, MAC filtering, ARP protection, NAT, and port mapping
- · Supports IEEE 802.1Q VLAN, SD-LAN, ONVIF, captive portal, DHCP, DNS, and DDNS functions
- · Local web management and remote management through the Wi-Tek Cloud platform
Technical Context
Multi-WAN load balancing distributes traffic across available Internet connections to improve link utilization. The integrated AP management system supports automatic discovery, RF optimization, batch configuration, multi-SSID settings, channel and transmission-power control, firmware upgrades, and client access lists. VPN, VLAN, SD-LAN, and security functions help connect and segment business networks.
Installation Notes
The compact gateway measures 129 × 85 × 28mm and supports magnetic installation. It can be powered through the PoE+ input or a USB-C 5V/3A connection. Operating temperature is -20°C to 50°C with 5%-95% non-condensing humidity.
| General | |
| Model | WI-ER205 |
| Product Type | High-performance cloud magnetic PoE-in gateway |
| Installation | Magnetic-mounted |
| Hardware | |
| Interfaces | 1 × 10/100/1000 Mbps RJ45 PoE+ IN LAN port 3 × 10/100/1000 Mbps RJ45 LAN/WAN ports 1 × 10/100/1000 Mbps RJ45 WAN port 1 × USB 2.0 port |
| USB Tethering | Supports USB tethering via Android smartphone |
| Memory | 256 MB RAM 16 MB Flash |
| AP Unified Configuration | Supports up to 32 APs |
| Power Supply | 802.3af/at PoE input or USB Type-C input, 5 V / 3 A |
| Maximum Power Consumption | 5 W |
| Performance | |
| Recommended Bandwidth - Dynamic IP | Upload: 922 Mbps Download: 922 Mbps |
| Recommended Bandwidth - Static IP | Upload: 925 Mbps Download: 925 Mbps |
| Recommended Bandwidth - PPPoE | Upload: 930 Mbps Download: 930 Mbps |
| Network and Routing | |
| Network Access | PPPoE dial-up, DHCP Client, Static IP |
| Routing | Static routing Policy-based routing Carrier address routing Active/standby mode Source-address-based load balancing Flow-based load balancing Port-based weighted load balancing |
| WAN Load Balancing | Supported |
| Flow Control | Custom flow control policies IP-based automatic bandwidth assignment |
| Traffic Audit | Real-time traffic audit, IP traffic visualization |
| Authentication | Captive portal: One-Key Authentication Pre-Shared Password Local User Authentication Voucher Authentication SMS Authentication RADIUS Authentication |
| Security and VPN | |
| Security Features | ACL DHCP static assignment MAC address filtering Dynamic ARP Static ARP binding NAT Port mapping |
| VPN Protocols | OpenVPN, PPTP, L2TP, IPsec |
| Behavior Management | Time-based and IP-policy-based access control, website filtering |
| Application Recognition | Supported |
| VLAN | IEEE 802.1Q VLAN tagging |
| SD-LAN | Supported |
| ONVIF | Supported |
| AP Management | |
| AP Management Features | Automatic AP discovery RF optimization Batch configuration and overview Multi-SSID configuration SSID hiding Channel settings Transmit power settings AP online upgrade STA blacklist and whitelist |
| Other Protocols | |
| DHCP | DHCP Server, DHCP Client, DHCP Option 43/138 |
| DNS | DNS Server, DDNS |
| Management | |
| Local Management | Web-based management |
| Cloud Management | Remote management via Wi-Tek Cloud |
| Mechanical | |
| Product Dimensions | 129 × 85 × 28 mm |
| Product Weight | 0.25 kg |
| Package Weight | 0.51 kg |
| Mounting | Magnetic mounting |
| Environmental | |
| Operating Temperature | -20 to 50 °C (-4 to 122 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating Humidity | 5% to 95%, non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| Package Contents | |
| Included Items | AC gateway × 1 Ethernet cable × 1 Power adapter × 1 Magnetic accessories × 4 Quick installation guide × 1 |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
