Wi-Tek - WI-LTE113-O - 4G LTE Cat6 PoE Router with Gigabit RJ45 Port

Product Overview

This 4G LTE Cat 6 network device converts cellular connectivity into a Gigabit RJ45 wired network connection, making it suitable for locations where wired internet is unavailable or difficult to deploy. It includes a built-in SIM card slot, supports multiple mobile network standards, and provides cloud management and SD-LAN functions for flexible remote network deployment.

Key Configuration

Product Type: 4G LTE Cat 6 to Gigabit RJ45 Network Device | Cellular Slot: Built-in 3G/4G SIM card slot | Network Support: LTE-TDD, LTE-FDD, WCDMA, CDMA, GSM | Cellular Speed: Up to 300 Mbps download / 50 Mbps upload | Wired Output: Gigabit RJ45 | Power: 802.3af/at PoE or 24V PoE | Protection: 16KV lightning protection, IP65 weatherproof housing

Key Features

 · Converts 4G Cat 6 cellular connectivity into a Gigabit RJ45 wired network port

 · Built-in 3G/4G SIM card slot supports mobile network deployment

 · Supports LTE-TDD, LTE-FDD, WCDMA, CDMA, and GSM network standards

 · Adjustable frequency bands improve compatibility with operators worldwide

 · Provides up to 300 Mbps download and 50 Mbps upload over 4G LTE Cat 6

 · Supports cloud management and SD-LAN functions

 · Supports 802.3af/at PoE or 24V PoE with Gigabit Ethernet connectivity

 · IP65 weatherproof housing and 16KV lightning protection support outdoor use

Technical Context

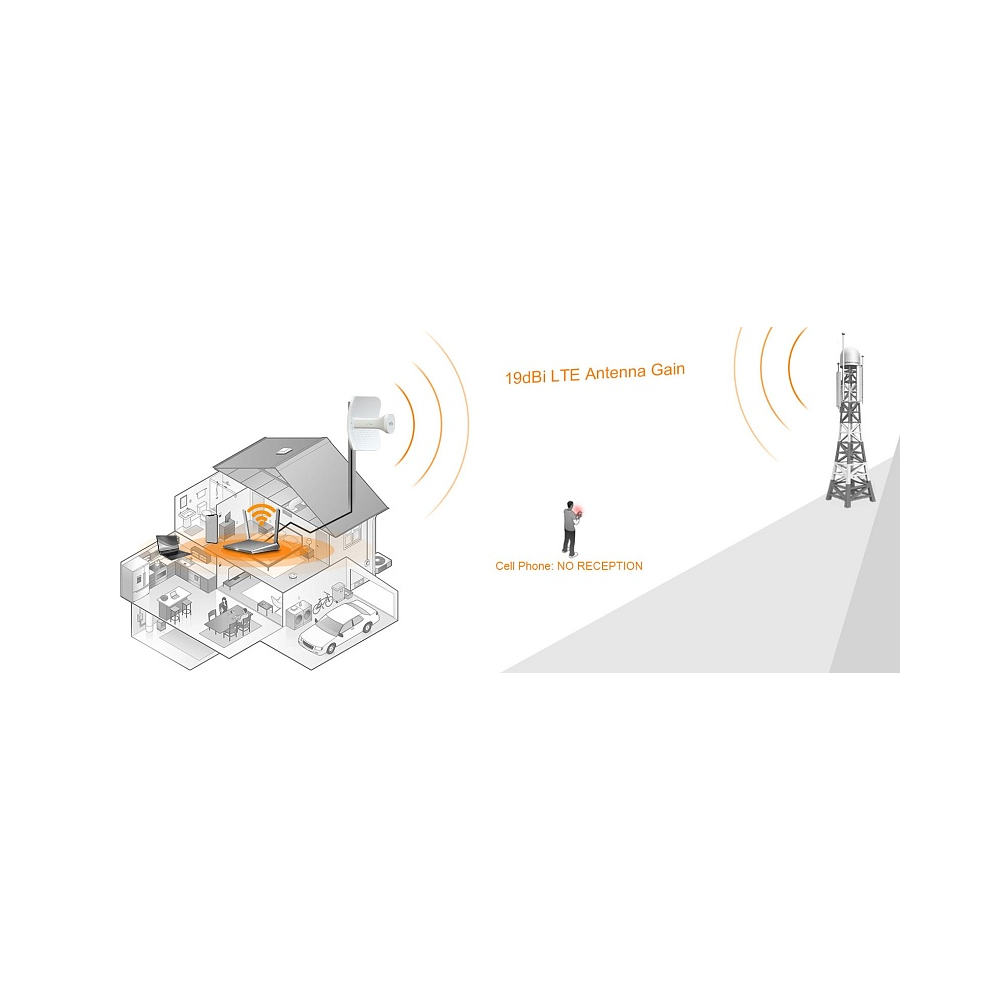

The device is designed to bridge cellular broadband service into a wired Ethernet network, allowing cameras, routers, switches, or other network equipment to connect through a Gigabit RJ45 interface when fixed broadband is not practical.

Support for multiple cellular standards and adjustable frequency bands helps the unit operate across different carrier environments, while cloud management and SD-LAN functions provide additional control for distributed network installations.

Installation Notes

The IP65-rated weatherproof housing and 16KV lightning protection make the device suitable for outdoor installations. It can be powered through 802.3af/at PoE or 24V PoE, reducing cabling complexity for remote or exterior deployments.
