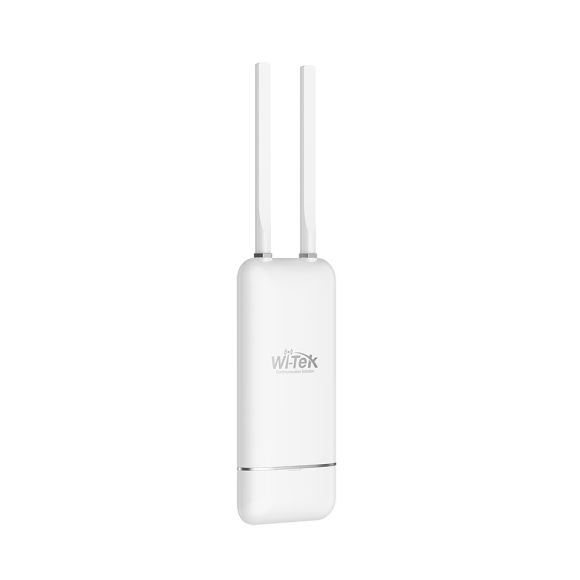

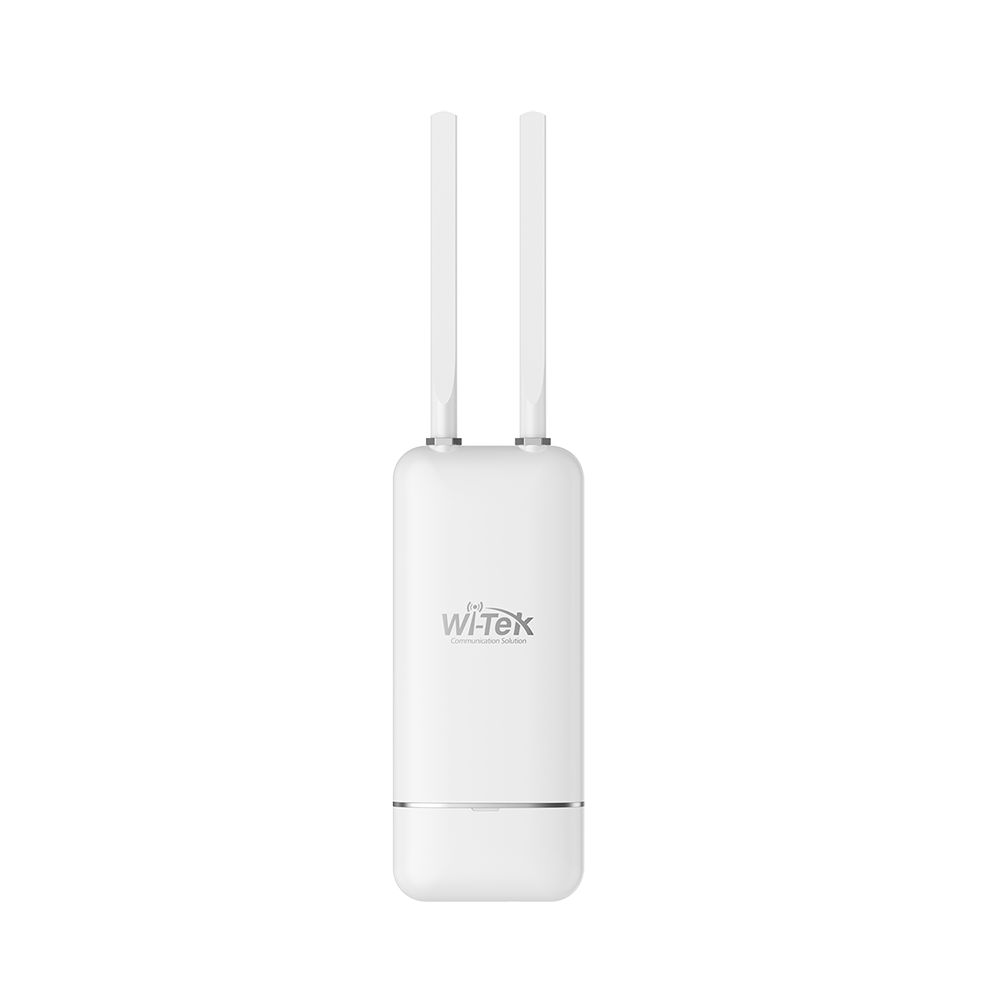

Wi-Tek - WI-LTE117-O V2 - Outdoor Waterproof 4G LTE Router

Product Overview

The Wi-Tek WI-LTE117-O V2 is an outdoor waterproof 4G LTE router designed to provide cellular internet access, Wi-Fi connectivity, and PoE output support for remote network deployments. It supports 4G Cat4 speeds up to 150 Mbps download and 50 Mbps upload, delivers 300 Mbps wireless performance at 2.4GHz, and includes IP65-rated ingress protection for outdoor installation.

Key Configuration

Model: WI-LTE117-O V2 | Product Type: Outdoor Waterproof 4G LTE Router | Cellular: 4G Cat4, 150 Mbps DL / 50 Mbps UL | Wi-Fi: 300 Mbps at 2.4GHz | Ethernet Ports: 2 x 10/100 Mbps | PoE Input: 802.3at PoE | DC Input: 48-54V DC | PoE Output: Up to 2 x 802.3af PoE | Protection: IP65-rated ingress protection

Key Features

 · Provides outdoor 4G LTE routing for remote network connectivity

 · Supports 4G Cat4 speeds up to 150 Mbps download and 50 Mbps upload

 · Delivers up to 300 Mbps wireless performance at 2.4GHz

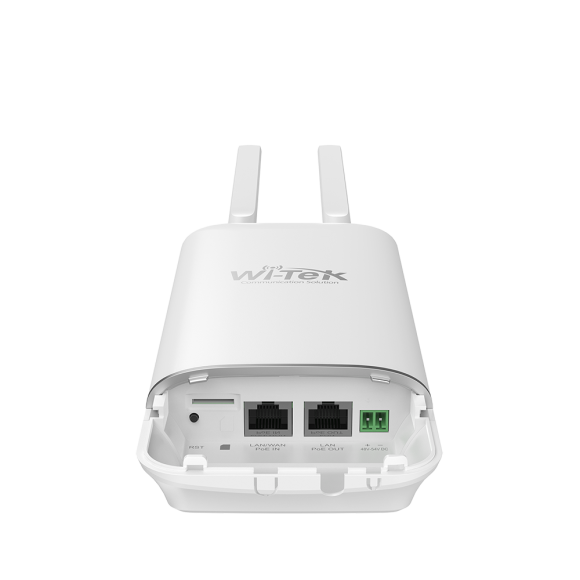

 · Includes two 10/100 Mbps Ethernet ports for wired device connections

 · Supports 802.3at PoE input or 48-54V DC input for flexible power supply

 · Provides up to two 802.3af PoE outputs for connected devices

 · Supports failover and network backup for improved connection continuity

 · Cloud and web management support remote configuration and monitoring

Technical Context

The WI-LTE117-O V2 is built for deployments where wired broadband may be unavailable or unreliable. Its 4G LTE connection can act as the primary network link or as a backup path, while failover and network backup functions help maintain connectivity when service conditions change.

Support for SD-LAN technology, cloud management, and web management makes the router suitable for distributed outdoor networks, surveillance sites, temporary installations, and remote PoE device deployments.

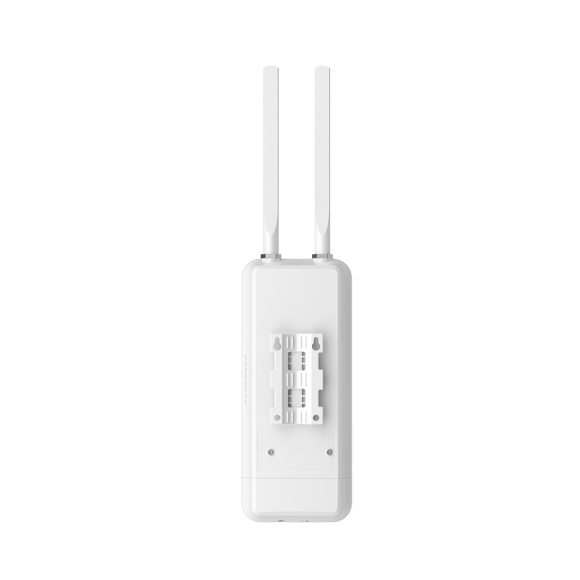

Installation Notes

The WI-LTE117-O V2 is designed for outdoor use with IP65-rated ingress protection. It can be powered by 802.3at PoE input or 48-54V DC input, and its PoE output capability can power up to two 802.3af PoE devices when deployed with a compatible power design.
