Product Overview

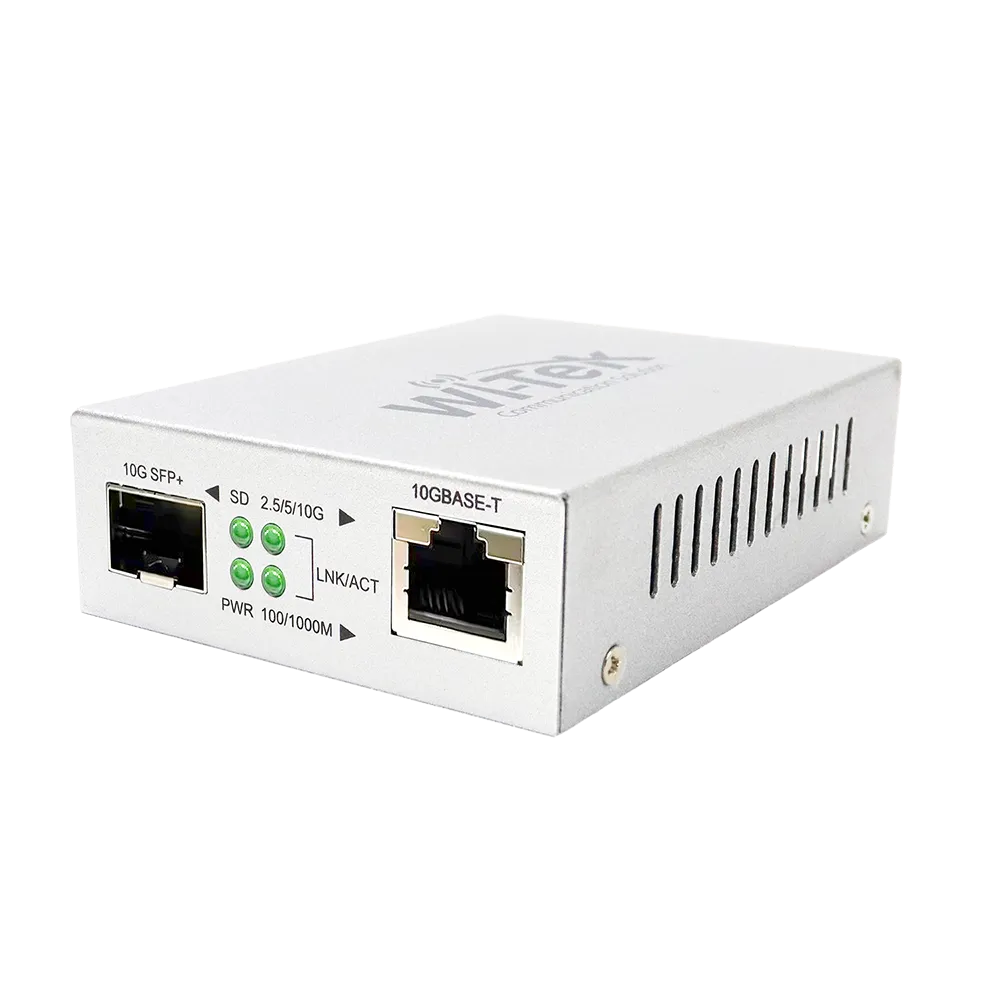

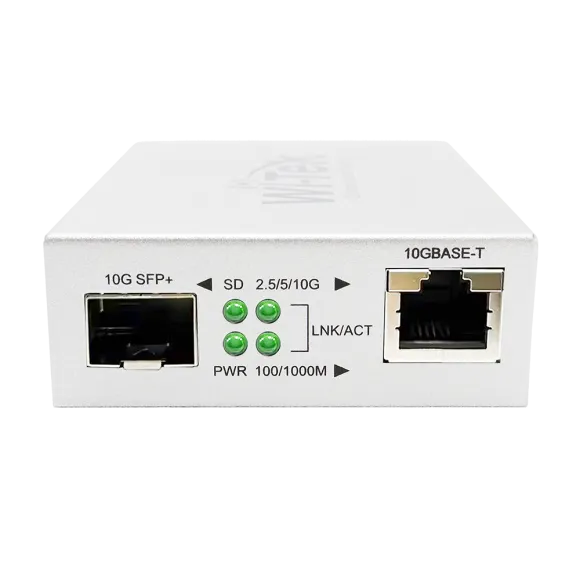

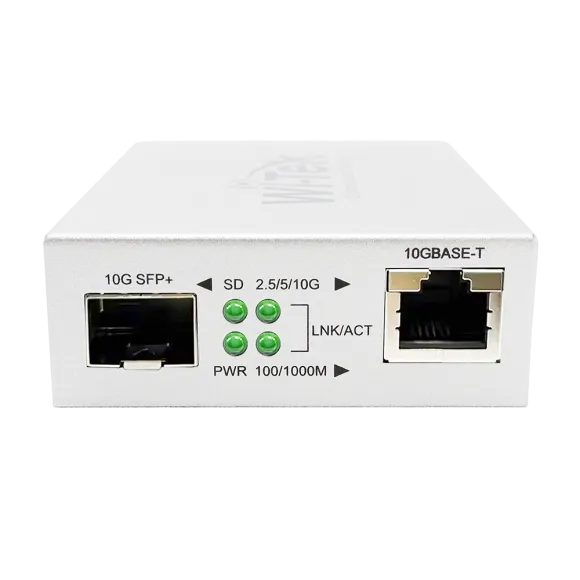

WI-MC301 is a fanless 10G SFP+ fiber media converter that transforms Ethernet electrical signals into optical signals for long-distance network transmission. It provides one multi-rate RJ-45 port supporting 100 Mbps, 1G, 2.5G, 5G, and 10 Gbps, plus one 1G/10G SFP+ slot for flexible optical module selection.
Key Configuration
Model: WI-MC301 | Copper Interface: 1 x 100M/1G/2.5G/5G/10Gbps RJ-45 | Optical Interface: 1 x 1G/10Gbps SFP+ slot | Power: DC 12 V/1 A, 7 W max | Installation: Desktop | Cooling: Fanless | Dimensions: 93.7 x 70 x 26 mm
Key Features
- · Converts Ethernet electrical signals to fiber-optic signals and back
- · Supports 100 Mbps, 1G, 2.5G, 5G, and 10 Gbps RJ-45 operation
- · Provides 1 x 1G/10Gbps SFP+ optical module slot
- · Allows flexible selection of optical modules according to the required fiber type and distance
- · Supports IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3bz, 802.3ae, 802.3an, and 802.3x standards
- · Provides line-rate forwarding for high-speed Ethernet and fiber links
- · Supports plug-and-play operation without configuration
- · Uses fanless cooling for quiet operation
- · Supports desktop installation with power and optical-link status indicators
- · Supports operation from -10°C to 50°C with 10%-90% non-condensing humidity
Technical Context
The independent SFP+ slot allows the converter to use optical modules matched to the required fiber type and transmission distance. When paired with another converter using 10G optical modules, the RJ-45 interfaces can adaptively operate at 2.5G, 5G, or 10 Gbps; 100 Mbps and 1 Gbps links require matching speeds at both ends.
Installation Notes
Install the converter on a desktop and connect a compatible SFP+ optical module to the fiber link. Supply the device from a DC 12 V/1 A source and connect the RJ-45 port to the Ethernet network. The fanless enclosure measures 93.7 x 70 x 26 mm and includes power and optical-link indicators for status monitoring.
| General | |
| Model | WI-MC301 |
| Product Type | 10G SFP+ fiber media converter |
| Function | Conversion between Ethernet electrical signals and optical fiber signals |
| Interfaces | |
| RJ45 Port | 1 × 100M/1G/2.5G/5G/10Gbps RJ45 port |
| Optical Port | 1 × 1G/10Gbps SFP+ slot |
| Supported Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3bz IEEE 802.3ae IEEE 802.3an IEEE 802.3x |
| Wavelength | Depends on the installed SFP module |
| Transmission Distance | Depends on the installed SFP module |
| Power | |
| Power Supply | 12 V DC, 1 A |
| Maximum Power Consumption | 7 W |
| LED Indicators | |
| PWR | Solid on: Device is powered normally Off: Device is powered off or has failed |
| SD | Solid on: SFP module detected Off: Port is not connected to a network device |
| 2.5G/5G/10G Network Link & Activity | Solid on: RJ45 link connected at 2.5G/5G/10Gbps Blinking: Data transmission Off: Port disconnected, abnormal connection, or failed negotiation |
| 100/1000M Network Link & Activity | Solid on: RJ45 link connected at 100/1000Mbps Blinking: Data transmission Off: Port disconnected, abnormal connection, or failed negotiation |
| Mechanical | |
| Cooling | Fanless |
| Dimensions | 93.7 × 70 × 26 mm |
| Installation | Desktop |
| Net Weight | 0.19 kg |
| Package Weight | 0.34 kg |
| Environmental | |
| Operating Temperature | -10 to 50 °C (14 to 122 °F) |
| Storage Temperature | -40 to 80 °C (-40 to 176 °F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
| Surge Immunity | IEC 61000-4-5 Common mode: 2 kV Differential mode: 1 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: 6 kV Air discharge: 8 kV |
| Port Rate Compatibility | |
| Single Media Converter | With a 10Gbps optical module, the RJ45 port supports 2.5G/5G/10Gbps. With a 1Gbps optical module, the RJ45 port supports 1Gbps. Other combinations are not supported. |
| Two Media Converters | With 10Gbps optical modules, both RJ45 ports can adaptively operate at 2.5G/5G/10Gbps. At 100Mbps or 1Gbps, both RJ45 ports must use the same speed. With 1Gbps optical modules, both RJ45 ports must operate at the same 100Mbps or 1Gbps speed. |
| Package Contents | |
| Package Dimensions | 108 × 75 × 80 mm |
| Included Items | Fiber media converter × 1 Power adapter × 1 Quick installation guide × 1 |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
