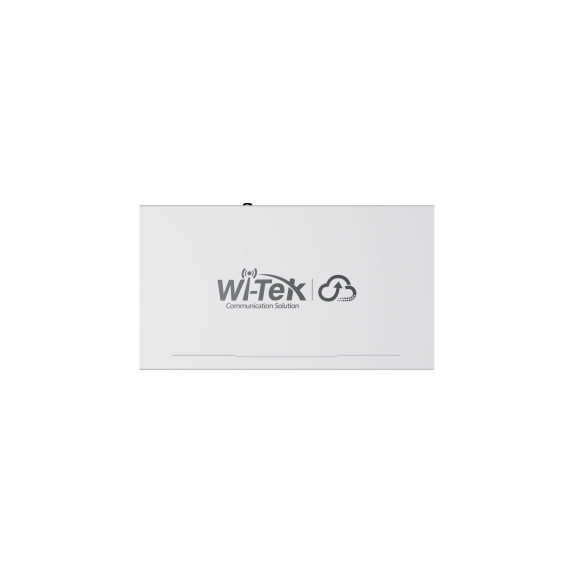

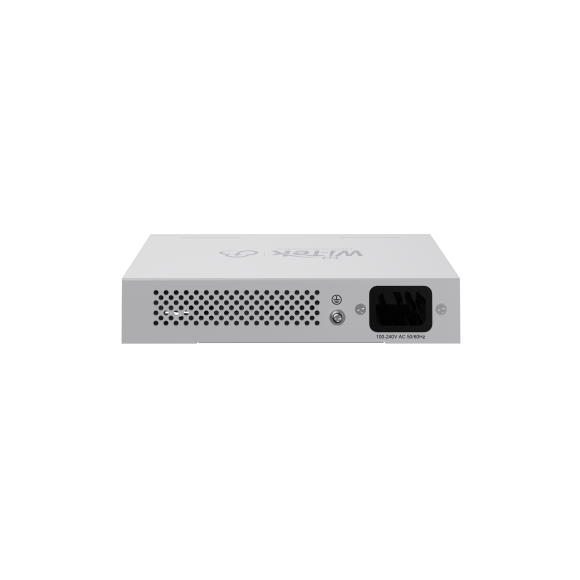

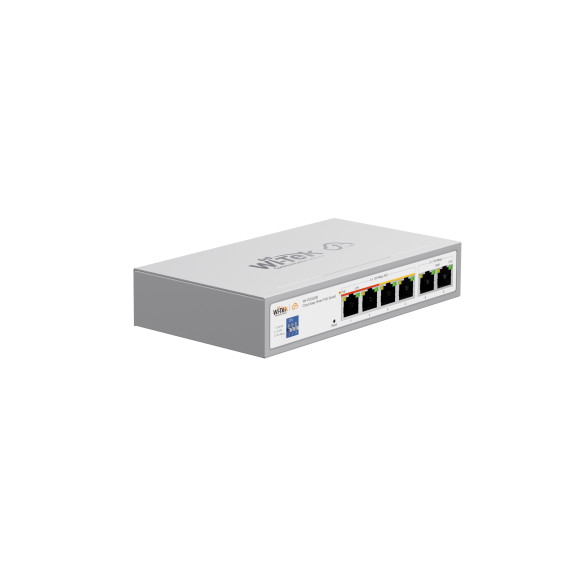

Wi-Tek - WI-PCES206 - 100Mbps Cloud Easy Smart PoE Switch

Product Overview

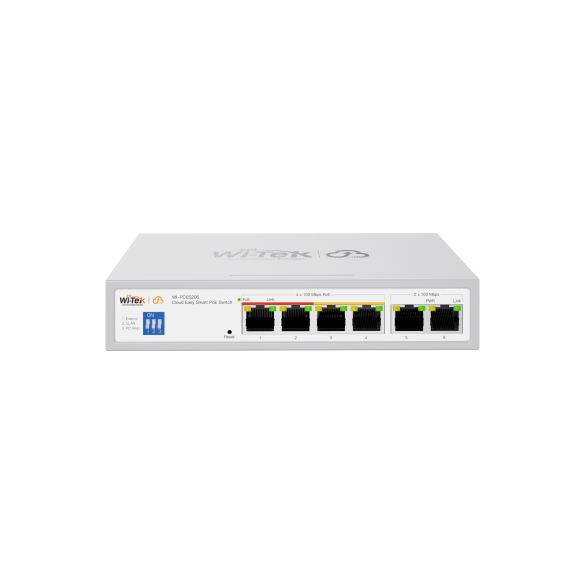

This Wi-Tek 100Mbps Cloud Easy Smart PoE Switch is designed for CCTV and small PoE access deployments that require simple cloud-managed operation, camera discovery, and smart DIP mode functions. It provides four 100Mbps RJ45 PoE ports, two additional 100Mbps RJ45 ports, Hi-PoE support on ports 1-2, and a total PoE power budget of up to 62.7W.

Key Configuration

Product Type: 100Mbps Cloud Easy Smart PoE Switch | PoE Ports: 4 x 100Mbps RJ45 | Additional RJ45 Ports: 2 x 100Mbps | PoE Output: Ports 1-2 support Hi-PoE up to 45W; ports 3-4 support 802.3af/at up to 30W | Total PoE Budget: Up to 62.7W | Smart DIP Modes: Extend Mode, VLAN Mode, PD Alive Mode | Camera Discovery: ONVIF Support | Management: Wi-Tek Cloud, Mobile App Remote Maintenance

Key Features

 · Provides four 100Mbps RJ45 PoE ports for powered network devices

 · Includes two additional 100Mbps RJ45 ports for network connectivity

 · Ports 1-2 support Hi-PoE output up to 45W

 · Ports 3-4 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 62.7W supports small PoE deployments

 · Smart DIP Mode supports Extend mode, VLAN mode, and PD Alive mode

 · Real-time alarm support helps simplify troubleshooting

 · ONVIF support helps automatically identify connected IP cameras

 · Wi-Tek Cloud management supports centralized monitoring

 · Mobile app remote maintenance helps manage the switch from offsite locations

Technical Context

This switch is intended for CCTV networks where a small number of IP cameras or PoE devices need 100Mbps access, higher-power PoE on selected ports, and simplified cloud-based maintenance. ONVIF discovery helps identify IP cameras automatically, making it useful for surveillance-focused deployments.

Smart DIP modes provide quick access to common operating functions: Extend mode for longer-distance transmission, VLAN mode for traffic isolation, and PD Alive mode for detecting and recovering unresponsive powered devices.

Installation Notes

This Cloud Easy Smart PoE switch is suitable for small CCTV and PoE access installations requiring remote maintenance through Wi-Tek Cloud or the mobile app. PoE planning should account for the total 62.7W power budget, with Hi-PoE available on ports 1-2 and standard PoE+ available on ports 3-4.
