Wi-Tek - WI-PCES210G - 100Mbps Cloud Easy Smart PoE Switch

Product Overview

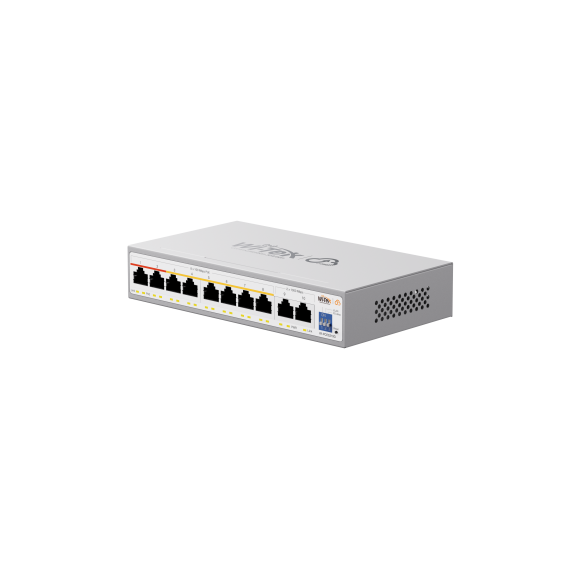

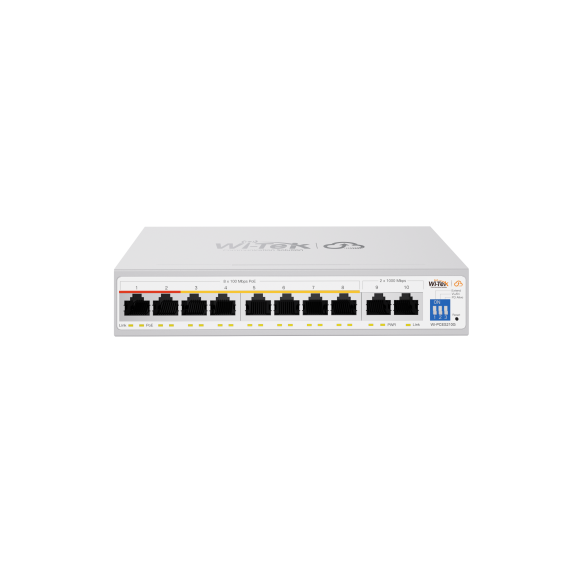

This Wi-Tek 100Mbps Cloud Easy Smart PoE Switch is designed for CCTV and PoE access deployments that require cloud-managed operation, IP camera discovery, real-time alarm support, and smart DIP mode functions. It provides eight 100Mbps RJ45 PoE ports, two 1000Mbps RJ45 ports, Hi-PoE support on ports 1-2, and a total PoE power budget of up to 102.4W.

Key Configuration

Product Type: 100Mbps Cloud Easy Smart PoE Switch | PoE Ports: 8 x 100Mbps RJ45 | Uplink Ports: 2 x 1000Mbps RJ45 | PoE Output: Ports 1-2 support Hi-PoE up to 45W; ports 3-8 support 802.3af/at up to 30W | Total PoE Budget: Up to 102.4W | Smart DIP Modes: Extend Mode, VLAN Mode, PD Alive Mode | Camera Discovery: ONVIF Support | Management: Wi-Tek Cloud, Mobile App Remote Maintenance

Key Features

 · Provides eight 100Mbps RJ45 PoE ports for powered network devices

 · Includes two 1000Mbps RJ45 ports for Gigabit uplink connectivity

 · Ports 1-2 support Hi-PoE output up to 45W

 · Ports 3-8 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 102.4W supports multiple PoE endpoints

 · Smart DIP Mode supports Extend mode, VLAN mode, and PD Alive mode

 · Real-time alarm support helps simplify troubleshooting

 · ONVIF support helps automatically identify connected IP cameras

 · Wi-Tek Cloud management supports centralized monitoring

 · Mobile app remote maintenance helps manage the switch from offsite locations

Technical Context

This switch is intended for CCTV networks where multiple IP cameras or PoE devices need 100Mbps access with Gigabit uplink connectivity. Hi-PoE support on ports 1-2 provides higher power for demanding devices, while ports 3-8 support standard PoE+ endpoints.

Smart DIP modes provide quick access to common operating functions: Extend mode for longer-distance transmission, VLAN mode for traffic isolation, and PD Alive mode for detecting and recovering unresponsive powered devices.

Installation Notes

This Cloud Easy Smart PoE switch is suitable for CCTV and PoE access installations requiring remote maintenance through Wi-Tek Cloud or the mobile app. PoE planning should account for the total 102.4W power budget, with Hi-PoE available on ports 1-2 and standard PoE+ available on ports 3-8.
