Wi-Tek - WI-PCES226GF - 100Mbps Cloud Easy Smart PoE Switch

Product Overview

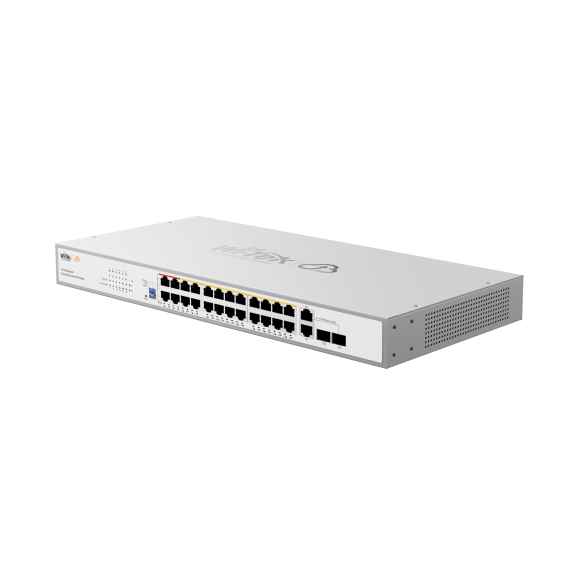

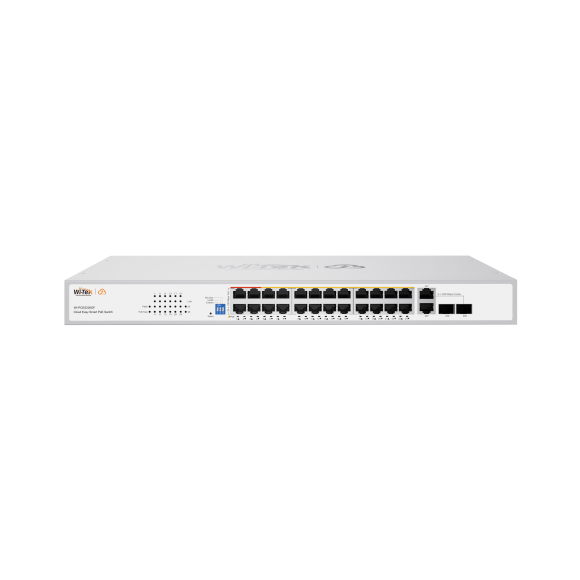

This Wi-Tek 100Mbps Cloud Easy Smart PoE Switch is designed for larger CCTV and PoE access deployments that require high-power PoE support, combo uplink flexibility, cloud-managed operation, IP camera discovery, and smart DIP mode functions. It provides twenty-four 100Mbps RJ45 PoE ports, two 1000Mbps combo SFP ports, PoE++ output on ports 1-4, and a total PoE power budget of up to 285W.

Key Configuration

Product Type: 100Mbps Cloud Easy Smart PoE Switch | PoE Ports: 24 x 100Mbps RJ45 | Combo SFP Ports: 2 x 1000Mbps | PoE Output: Ports 1-4 support 802.3af/at/bt up to 90W; ports 5-24 support 802.3af/at up to 30W | Total PoE Budget: Up to 285W | Smart DIP Modes: Extend Mode, VLAN Mode, PD Alive Mode | Camera Discovery: ONVIF Support | Management: Wi-Tek Cloud, Mobile App Remote Maintenance

Key Features

 · Provides twenty-four 100Mbps RJ45 PoE ports for powered network devices

 · Includes two 1000Mbps combo SFP ports for flexible uplink connectivity

 · Ports 1-4 support IEEE 802.3af/at/bt PoE output up to 90W

 · Ports 5-24 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 285W supports larger PoE deployments

 · Smart DIP Mode supports Extend mode, VLAN mode, and PD Alive mode

 · Real-time alarm support helps simplify troubleshooting

 · ONVIF support helps automatically identify connected IP cameras

 · Wi-Tek Cloud management supports centralized monitoring

 · Mobile app remote maintenance helps manage the switch from offsite locations

Technical Context

This switch is intended for CCTV networks where many IP cameras or PoE devices need 100Mbps access with higher-power PoE++ available for demanding endpoints. The 1000Mbps combo SFP ports provide flexible uplink options for connecting the access switch to upstream network infrastructure.

Smart DIP modes provide quick access to common operating functions: Extend mode for longer-distance transmission, VLAN mode for traffic isolation, and PD Alive mode for detecting and recovering unresponsive powered devices.

Installation Notes

This Cloud Easy Smart PoE switch is suitable for CCTV and PoE access installations requiring remote maintenance through Wi-Tek Cloud or the mobile app. PoE planning should account for the total 285W power budget, with 90W PoE++ available on ports 1-4 and standard PoE+ available on ports 5-24.
