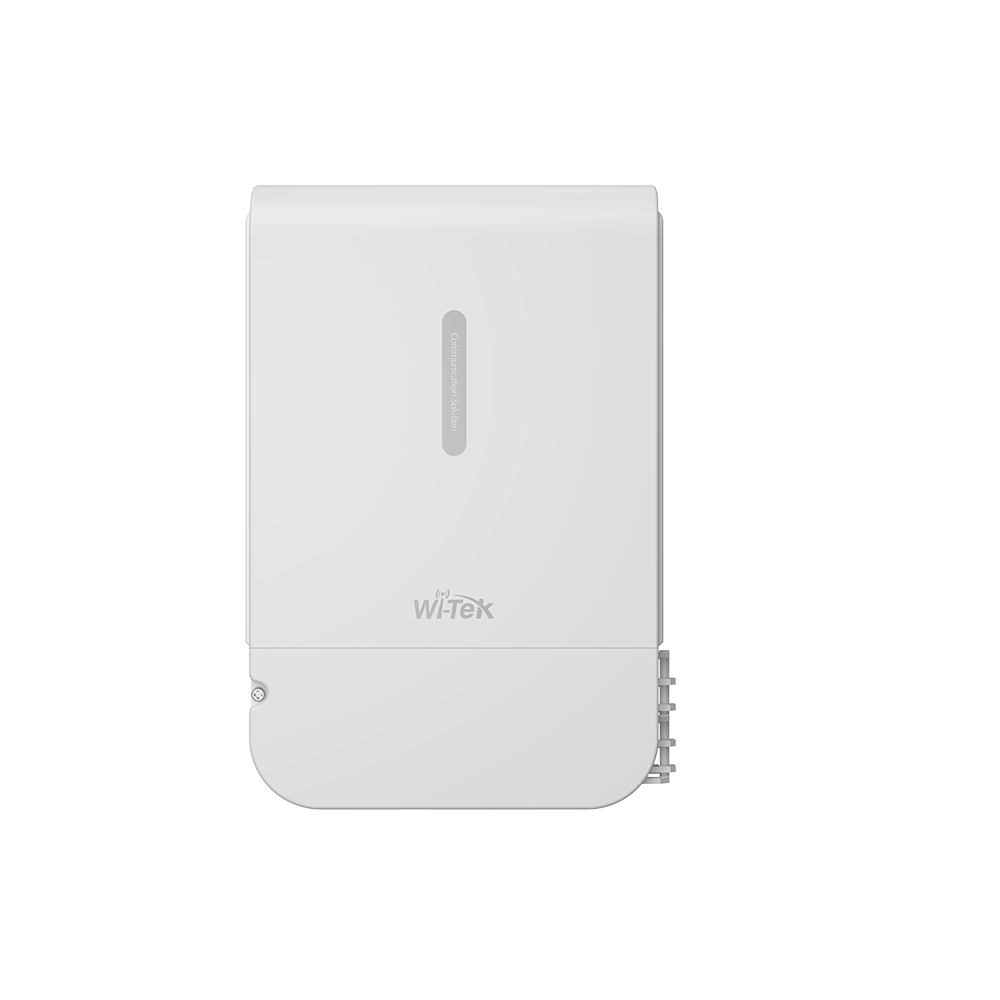

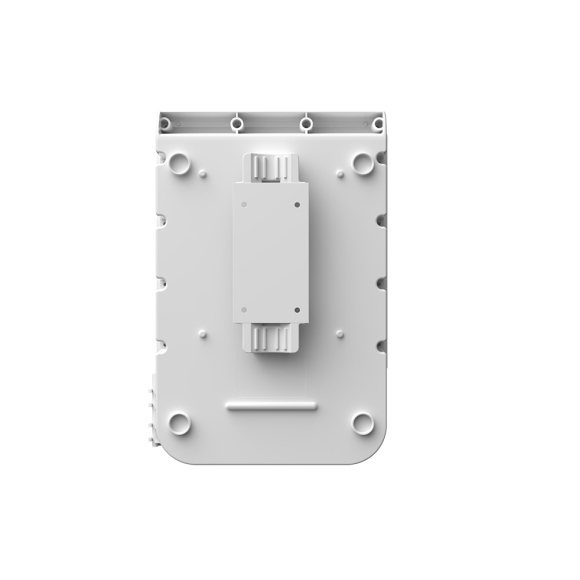

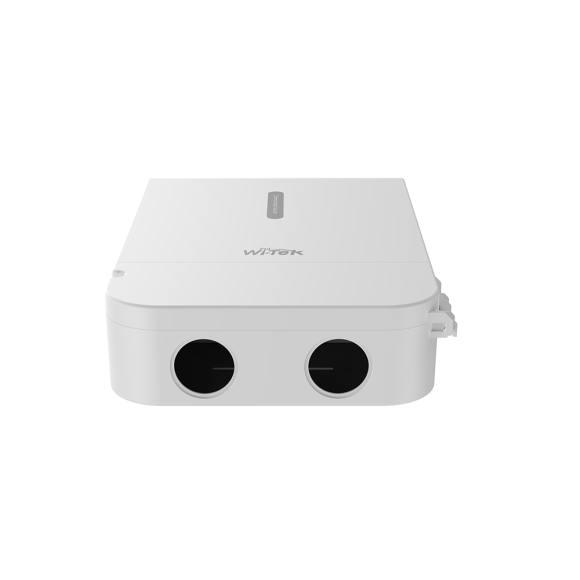

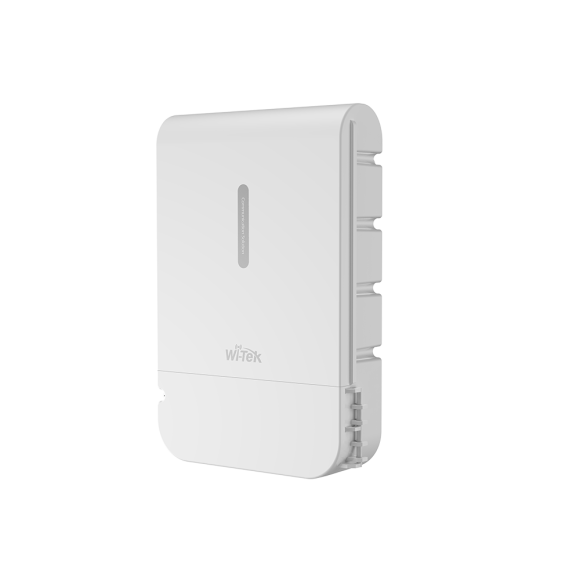

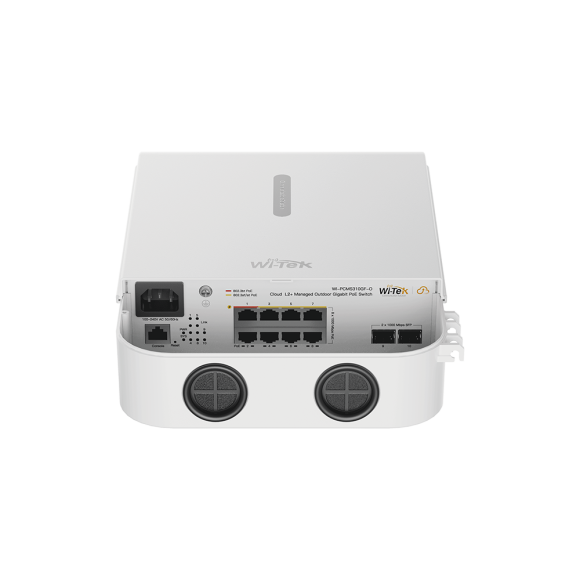

Wi-Tek - WI-PCES306G-O - Cloud Easy Smart 1000Mbps Outdoor Waterproof PoE Switch

Product Overview

This Wi-Tek Cloud Easy Smart 1000Mbps Outdoor Waterproof PoE Switch is designed for outdoor surveillance and network access deployments that require Gigabit PoE connectivity, remote cloud management, and reliable operation in harsh environments. It provides four Gigabit RJ45 PoE ports, two Gigabit RJ45 uplink ports, a total PoE power budget of up to 65W, and an IP65 weatherproof and dustproof enclosure.

Key Configuration

Product Type: Cloud Easy Smart Managed Outdoor Waterproof PoE Switch | PoE Ports: 4 x 1000 Mbps RJ45 | Uplink Ports: 2 x 1000 Mbps RJ45 | PoE Standard: IEEE 802.3af/at | PoE Output: Up to 30W on ports 1-4 | Total PoE Budget: Up to 65W | Protection Rating: IP65 | Management: Wi-Tek Cloud | Camera Discovery: ONVIF Support

Key Features

 · Provides four 1000 Mbps RJ45 PoE ports for IP cameras and other PoE devices

 · Includes two 1000 Mbps RJ45 uplink ports for network connectivity

 · Ports 1-4 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 65W supports multiple powered endpoints

 · IP65 weatherproof and dustproof enclosure supports outdoor installation

 · Port automatic anti-loop helps maintain network continuity

 · Alarm notifications make real-time maintenance easier

 · ONVIF support helps automatically identify connected IP cameras

 · Wi-Tek Cloud management enables remote monitoring and configuration

Technical Context

This switch is intended for outdoor IP surveillance networks where a small number of PoE-powered cameras or edge devices need Gigabit connectivity and centralized monitoring. Its four PoE ports provide power and data over a single Ethernet cable, while the dual Gigabit uplink ports support connection back to the main network.

The IP65-rated enclosure helps protect the switch against dust and weather exposure, making it suitable for outdoor deployment points. Cloud management, alarm notifications, ONVIF discovery, and automatic anti-loop support help simplify remote operation and ongoing maintenance.

Installation Notes

This outdoor PoE switch is suitable for surveillance, access control, and network edge installations requiring weather-resistant Gigabit PoE access. PoE load planning should account for the 65W total power budget and the 30W maximum output available on ports 1-4.
