Wi-Tek - WI-PCES306G V2 - 1000Mbps Cloud Easy Smart PoE/ Ethernet Switch

Product Overview

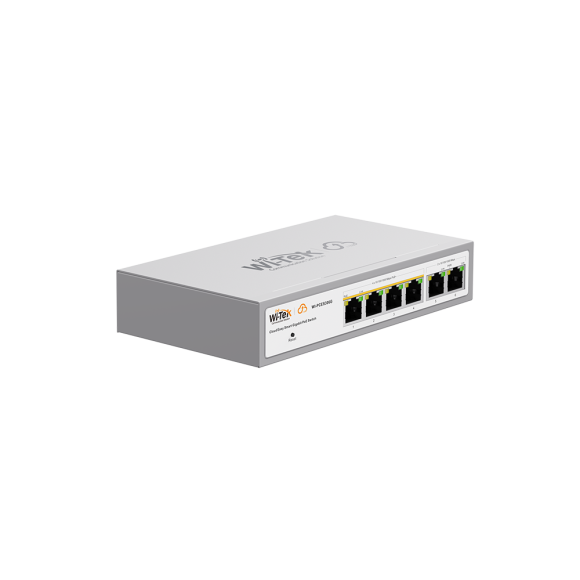

This Wi-Tek 1000Mbps Cloud Easy Smart PoE/Ethernet Switch is designed for managed Gigabit PoE access deployments in surveillance and network environments. It provides four 1000Mbps RJ45 PoE ports, two 1000Mbps RJ45 uplink ports, IEEE 802.3af/at PoE output up to 30W per PoE port, a total PoE power budget of up to 65W, and Wi-Tek Cloud management for real-time monitoring and remote configuration.

Key Configuration

Product Type: 1000Mbps Cloud Easy Smart PoE/Ethernet Switch | PoE Ports: 4 x 1000Mbps RJ45 | Uplink Ports: 2 x 1000Mbps RJ45 | PoE Standard: IEEE 802.3af/at | PoE Output: Up to 30W on ports 1-4 | Total PoE Budget: Up to 65W | Network Features: Automatic Anti-Loop, Link Aggregation, QoS, DHCP Snooping | Camera Discovery: ONVIF Support | Management: Wi-Tek Cloud

Key Features

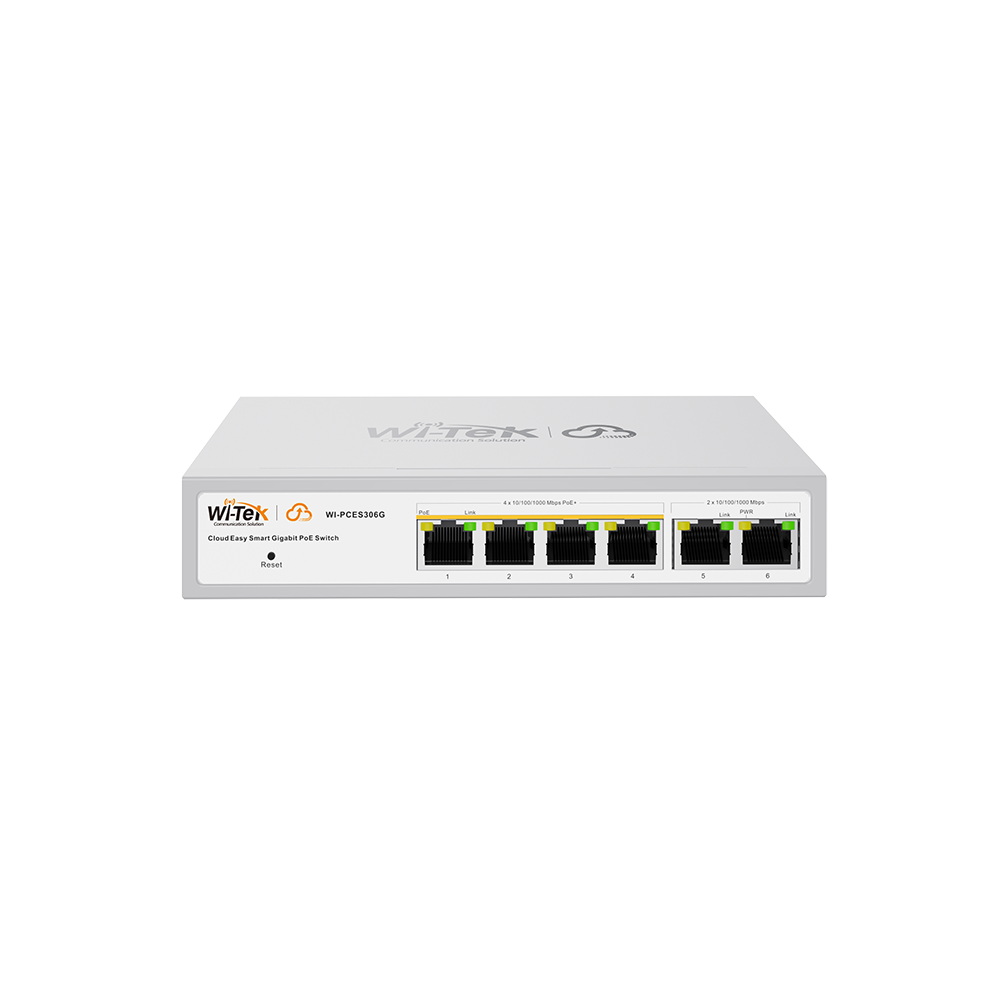

 · Provides four 1000Mbps RJ45 PoE ports for powered network devices

 · Includes two 1000Mbps RJ45 uplink ports for network connectivity

 · Ports 1-4 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 65W supports multiple PoE endpoints

 · Port automatic anti-loop helps maintain network continuity

 · Alarm notifications support real-time maintenance

 · ONVIF support helps automatically identify connected IP cameras

 · Link aggregation helps increase network bandwidth and reliability

 · QoS support helps high-priority services operate normally

 · DHCP Snooping helps prevent unauthorized DHCP servers and improve IP allocation security

 · Wi-Tek Cloud management enables real-time monitoring and remote configuration

Technical Context

This switch is intended for small managed PoE access networks where IP cameras or other PoE devices need Gigabit connectivity, remote visibility, and basic network protection. The four PoE ports deliver power and data over Ethernet, while the two Gigabit uplink ports connect the switch to the broader network.

Cloud management, ONVIF camera discovery, automatic anti-loop, link aggregation, QoS, and DHCP Snooping help simplify surveillance network deployment and improve reliability, bandwidth use, and IP assignment security.

Installation Notes

This Cloud Easy Smart PoE/Ethernet switch is suitable for Gigabit PoE access deployments where remote monitoring and configuration are required. PoE planning should account for the total 65W power budget and the 30W maximum output available on ports 1-4.
