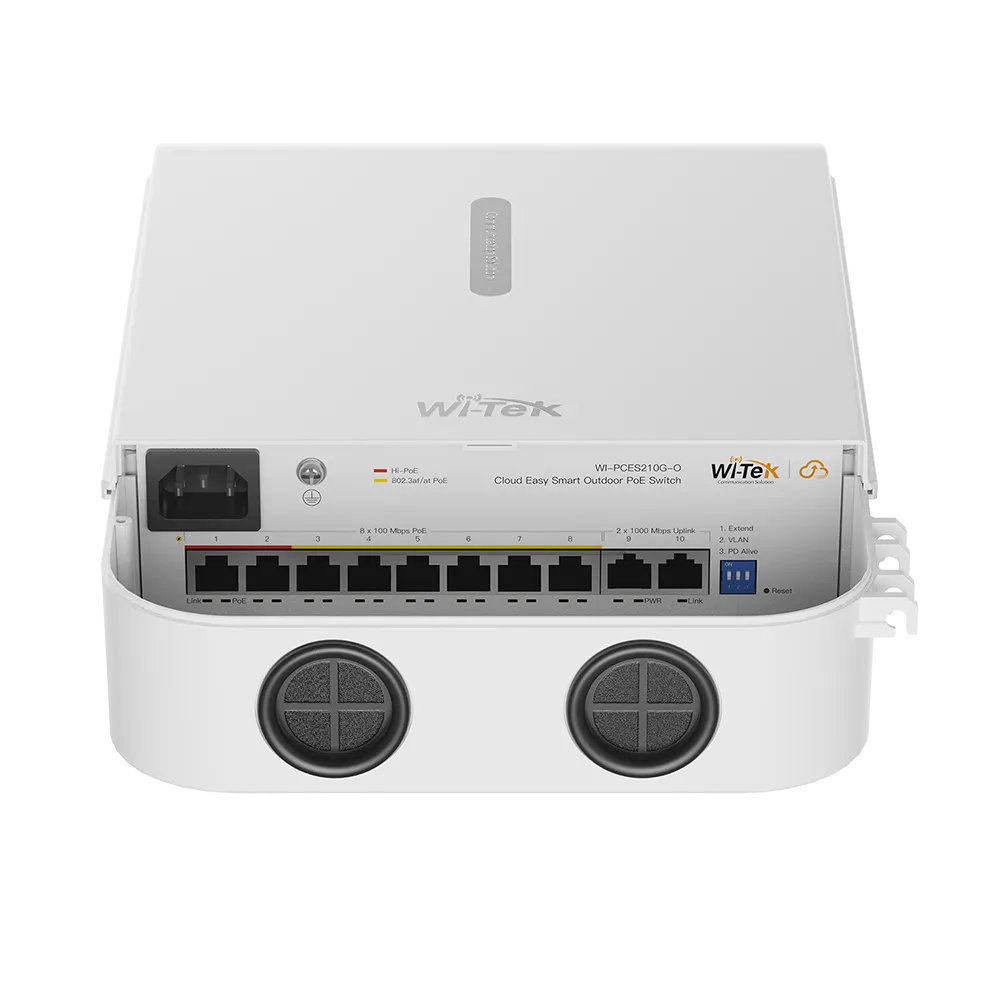

Wi-Tek - WI-PCES309GF-O - Cloud Easy Smart 1000Mbps Outdoor Waterproof PoE Switch
Product Overview
This Wi-Tek Cloud Easy Smart outdoor PoE switch is designed for Gigabit surveillance and network access deployments that require high-power PoE, weatherproof protection, and remote cloud management. It provides eight Gigabit RJ45 PoE ports, one Gigabit RJ45 uplink port, one Gigabit SFP slot, and a total PoE power budget of up to 115W for outdoor IP camera and network device installations.
Key Configuration
Product Type: Cloud Easy Smart Outdoor Waterproof Gigabit PoE Switch | PoE Ports: 8 x 10/100/1000 Mbps RJ45 | Uplink Ports: 1 x 10/100/1000 Mbps RJ45, 1 x 1000 Mbps SFP slot | High-Power PoE: Ports 1-2, IEEE 802.3af/at/bt up to 90W | Standard PoE: Ports 3-8, IEEE 802.3af/at up to 30W | PoE Budget: Up to 115W | Protection: IP65 weatherproof and dustproof | Management: Wi-Tek Cloud
Key Features
· Provides eight Gigabit RJ45 PoE ports for powered network devices
· Includes one Gigabit RJ45 uplink port and one Gigabit SFP slot
· Ports 1-2 support IEEE 802.3af/at/bt PoE output up to 90W
· Ports 3-8 support IEEE 802.3af/at PoE output up to 30W
· Total power budget of up to 115W supports multiple PoE endpoints
· IP65 weatherproof and dustproof design supports harsh outdoor environments
· Port automatic anti-loop helps maintain network continuity
· Wi-Tek Cloud management supports real-time monitoring and remote configuration
Technical Context
The switch is designed for outdoor IP camera and PoE access installations where Gigabit throughput, high-power PoE delivery, and remote visibility are required. ONVIF protocol support allows the switch to automatically identify IP cameras, helping simplify surveillance network setup and maintenance.
Alarm notifications and cloud-based monitoring help administrators maintain real-time awareness of switch status, connected devices, and network conditions, while automatic anti-loop support helps protect network continuity.
Installation Notes
The IP65-rated weatherproof and dustproof enclosure is intended for outdoor deployments in harsh environmental conditions. The Gigabit RJ45 uplink and SFP slot provide flexible uplink options for copper or fiber-connected network designs.
| Model | WI-PCES309GF-O |
| Hardware Version | V1 |
| Interfaces | |
| PoE Ports | Port 1-8 |
| PoE Standard | Port 1-2: 802.3af/at/bt 90W Port 3-8: 802.3af/at 30W |
| Downlink Port | 8 × 10/100/1000Mbps RJ45 PoE Ports |
| Uplink Port | 1 × 10/100/1000Mbps Ethernet Port 1 × 100/1000Mbps SFP Slot |
| PoE | |
| PoE Pin Assignment | Port 1-2: 1/2(-), 3/6(+) and 4/5(+), 7/8(-) Port 3-8: 1/2(-), 3/6(+) |
| PoE Power | 90W max for port 1-2 30W max for port 3-8 110W max. (PoE power budget) |
| Switch Property | |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3bt |
| Memory and Flash | Memory: 128KB Flash: 16MB |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1Mbit |
| Jumbo Frame | 10000Byte |
| Performance | |
| Input Power | 100~240V AC 50/60Hz |
| Power Consumption | Idle: 5W 100% Traffic Rate with PoE: 115W |
| Physical Characteristics | |
| LED Indicators | PWR (Orange) On: The device power on is normal Off: The device is powered off or failed PoE (Orange) On: PoE enabled Off: PoE disabled Link (Orange) On: Port connected Off: Port disconnected Blinking: Data transmission Max On: When total PoE output power > PoE Power Budget × 80%, the LED indicator will be on |
| DIP Switch | 1. Extend: The transmission distance of PoE port can be up to 250m with 10Mbps 2. VLAN: Each PoE port can only send data to Up-link port 3. PD Alive: All PoE ports enable PD Alive function, which can detect and reboot the offline compliant PoE powered devices |
| Reset | Hold for >5 sec. to restore factory default |
| Fan Quantity | Fanless |
| Switch Dimensions | 314 × 210 × 89 mm |
| Package Dimensions | 405 × 253 × 97 mm |
| Weight | Net Weight: 1.43kg Package Weight: 2.14kg |
| Installation | Wall-mounted, Pole-mounted |
| Reliability | |
| Surge Immunity | IEC 61000-4-5 Common mode 4kV Differential mode 2kV |
| ESD Protection | IEC 61000-4-2 Contact discharge 6kV Air discharge 8kV |
| Certification | |
| Certification | CE, FCC, RoHS, UKCA, RCM |
| Environmental | |
| Operating Environment | -30℃-60℃ (-22℉-122℉); 10-90% RH non-condensing |
| Storage Environment | -40℃-70℃ (-40℉-158℉); 5–90% RH non-condensing |
