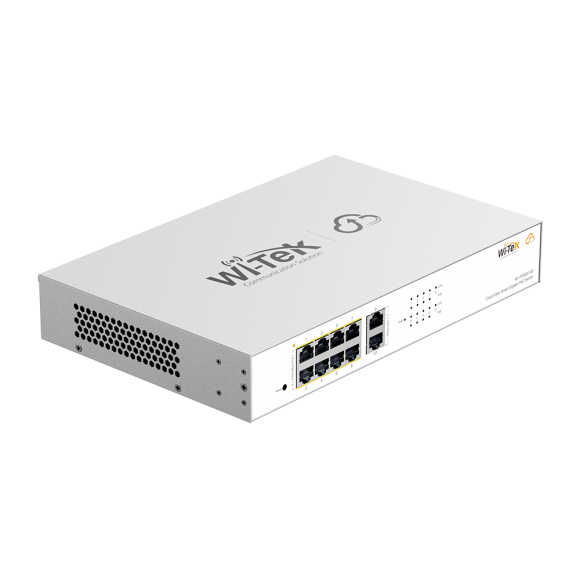

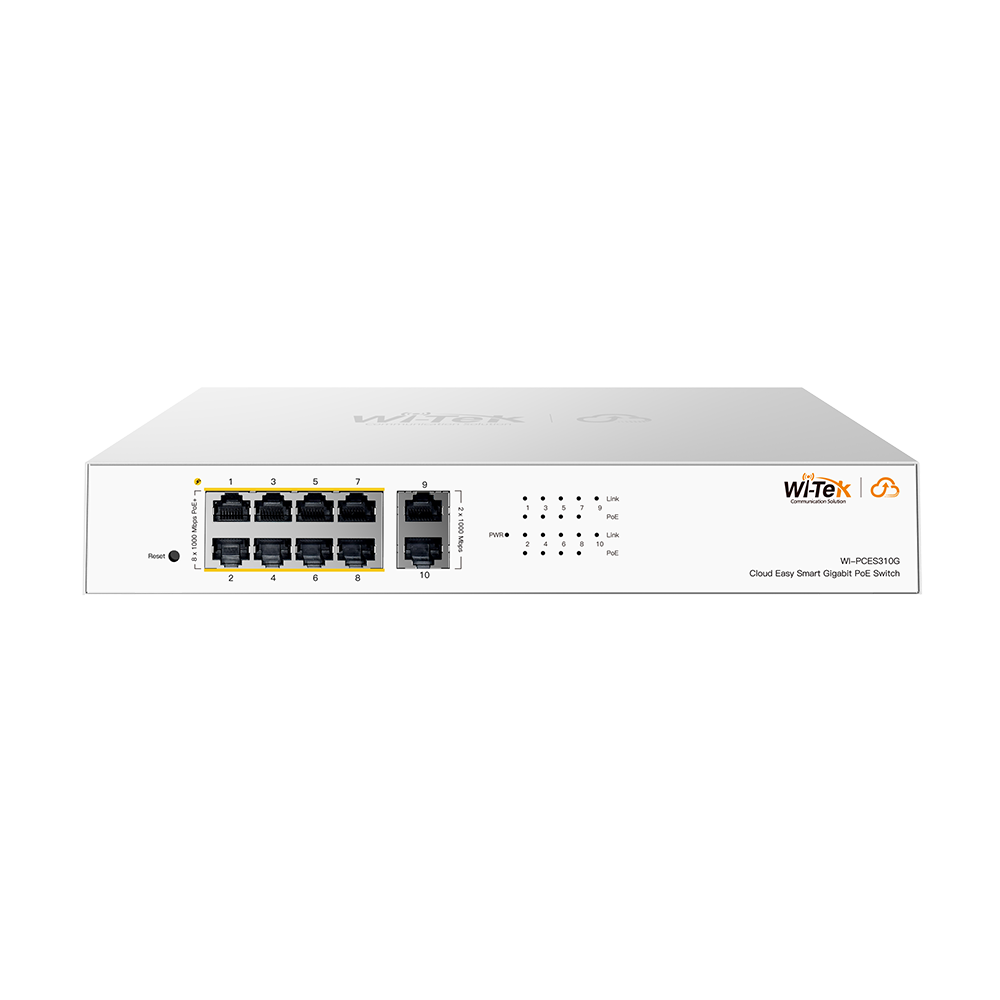

Wi-Tek - WI-PCES310G - 1000Mbps Cloud Easy Smart PoE/ Ethernet Switch

Product Overview

This Wi-Tek 1000Mbps Cloud Easy Smart PoE/Ethernet Switch is designed for Gigabit PoE access deployments that require cloud-based monitoring, remote configuration, and smart network protection features. It provides eight 1000Mbps PoE+ ports, two 1000Mbps Ethernet uplink ports, IEEE 802.3af/at PoE output up to 30W per port, and a total PoE power budget of up to 117W.

Key Configuration

Product Type: 1000Mbps Cloud Easy Smart PoE/Ethernet Switch | PoE Ports: 8 x 1000Mbps PoE+ | Uplink Ports: 2 x 1000Mbps Ethernet | PoE Standard: IEEE 802.3af/at | PoE Output: Up to 30W on ports 1-8 | Total PoE Budget: Up to 117W | Network Features: Automatic Anti-Loop, Link Aggregation, QoS, IGMP Snooping | Camera Discovery: ONVIF Support | Management: Wi-Tek Cloud

Key Features

 · Provides eight 1000Mbps PoE+ ports for powered network devices

 · Includes two 1000Mbps Ethernet uplink ports for network connectivity

 · Ports 1-8 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 117W supports multiple PoE endpoints

 · Port automatic anti-loop helps maintain network continuity

 · Alarm notifications support real-time maintenance

 · ONVIF support helps automatically identify connected IP cameras

 · Link aggregation helps increase network bandwidth and reliability

 · QoS support helps high-priority services operate normally

 · IGMP Snooping helps prevent Layer 2 multicast flooding and improve network performance

 · Wi-Tek Cloud management enables real-time monitoring and remote configuration

Technical Context

This switch is intended for managed Gigabit PoE access networks where IP cameras, access points, or other PoE devices require both power and data over Ethernet. The two Gigabit uplink ports connect the access switch back to the main network while supporting higher reliability features such as link aggregation.

Cloud management, ONVIF camera discovery, automatic anti-loop, QoS, IGMP Snooping, and alarm notifications help improve visibility, multicast handling, service prioritization, and maintenance efficiency in surveillance and network edge deployments.

Installation Notes

This Cloud Easy Smart PoE/Ethernet switch is suitable for Gigabit PoE access deployments where remote monitoring and configuration are required. PoE planning should account for the total 117W power budget and the 30W maximum output available on ports 1-8.
