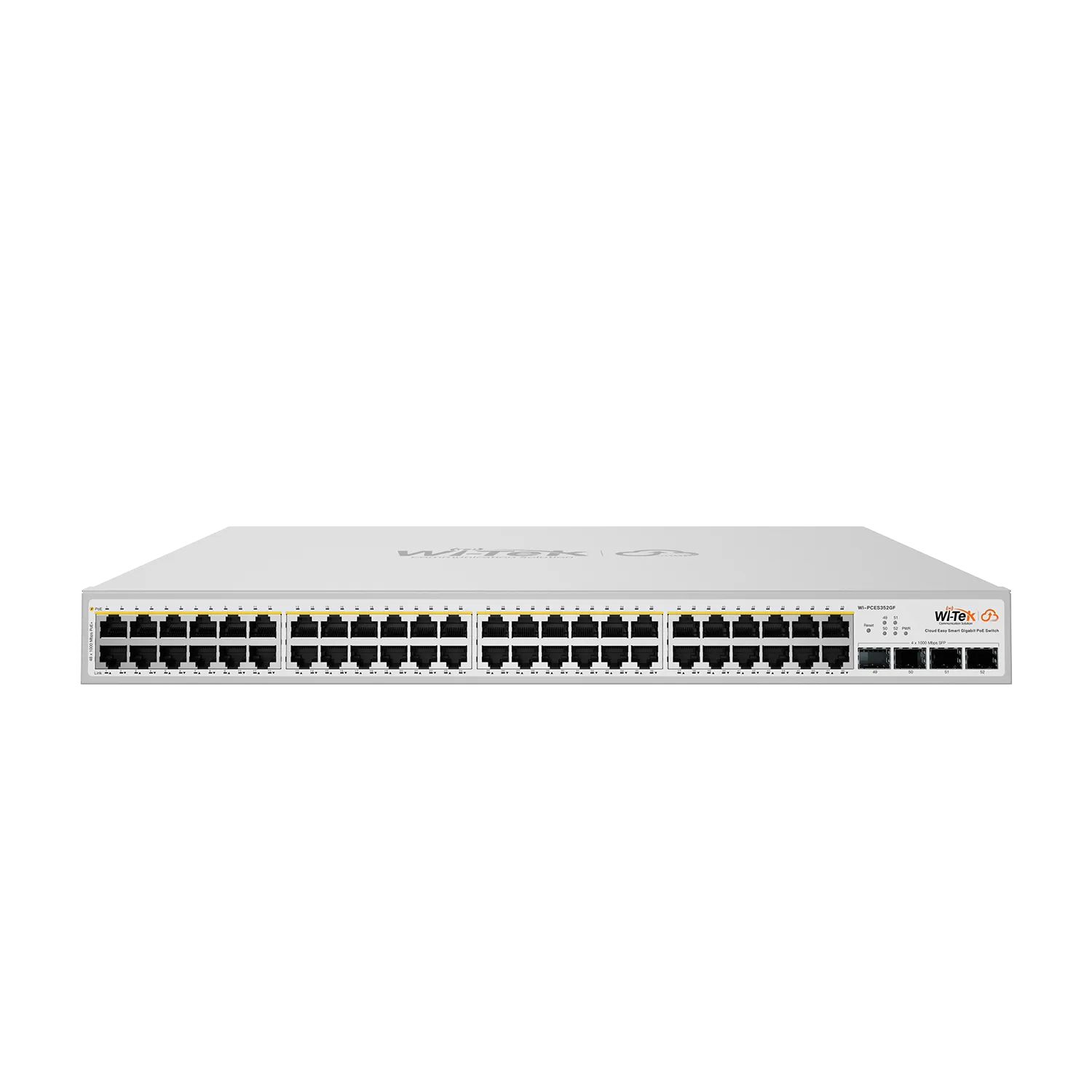

Wi-Tek - WI-PCES352GF - 1000Mbps Cloud Easy Smart PoE/ Ethernet Switch

Product Overview

This Wi-Tek 1000Mbps Cloud Easy Smart PoE/Ethernet Switch is designed for high-density Gigabit PoE access deployments that require cloud-based monitoring, remote configuration, fiber uplinks, and smart network optimization features. It provides forty-eight 1000Mbps RJ45 PoE ports, four 1000Mbps SFP slots, IEEE 802.3af/at PoE output up to 30W per port, and a total PoE power budget of up to 392W.

Key Configuration

Product Type: 1000Mbps Cloud Easy Smart PoE/Ethernet Switch | PoE Ports: 48 x 1000Mbps RJ45 | SFP Slots: 4 x 1000Mbps | PoE Standard: IEEE 802.3af/at | PoE Output: Up to 30W on ports 1-48 | Total PoE Budget: Up to 392W | Network Features: Automatic Anti-Loop, Link Aggregation, QoS, Voice VLAN, IGMP Snooping | Camera Discovery: ONVIF Support | Management: Wi-Tek Cloud

Key Features

 · Provides forty-eight 1000Mbps RJ45 PoE ports for high-density powered device deployments

 · Includes four 1000Mbps SFP slots for fiber uplink connectivity

 · Ports 1-48 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 392W supports large PoE networks

 · Port automatic anti-loop helps maintain network continuity

 · Alarm notifications support real-time maintenance

 · ONVIF support helps automatically identify connected IP cameras

 · Link aggregation helps increase network bandwidth and reliability

 · QoS support helps high-priority services operate normally

 · Voice VLAN helps improve VoIP communication quality

 · IGMP Snooping helps prevent Layer 2 multicast flooding and improve network performance

 · Wi-Tek Cloud management enables real-time monitoring and remote configuration

Technical Context

This switch is intended for managed Gigabit PoE access networks where large numbers of IP cameras, access points, VoIP devices, or other PoE endpoints require power and data over Ethernet. The four SFP slots provide fiber uplink flexibility for backbone integration and longer-distance network connections.

Cloud management, ONVIF camera discovery, automatic anti-loop, link aggregation, QoS, Voice VLAN, IGMP Snooping, and alarm notifications help improve remote visibility, network reliability, voice traffic quality, multicast handling, and service prioritization.

Installation Notes

This Cloud Easy Smart PoE/Ethernet switch is suitable for high-density Gigabit PoE access deployments requiring fiber uplinks and remote cloud management. PoE planning should account for the total 392W power budget and the 30W maximum output available on ports 1-48.
