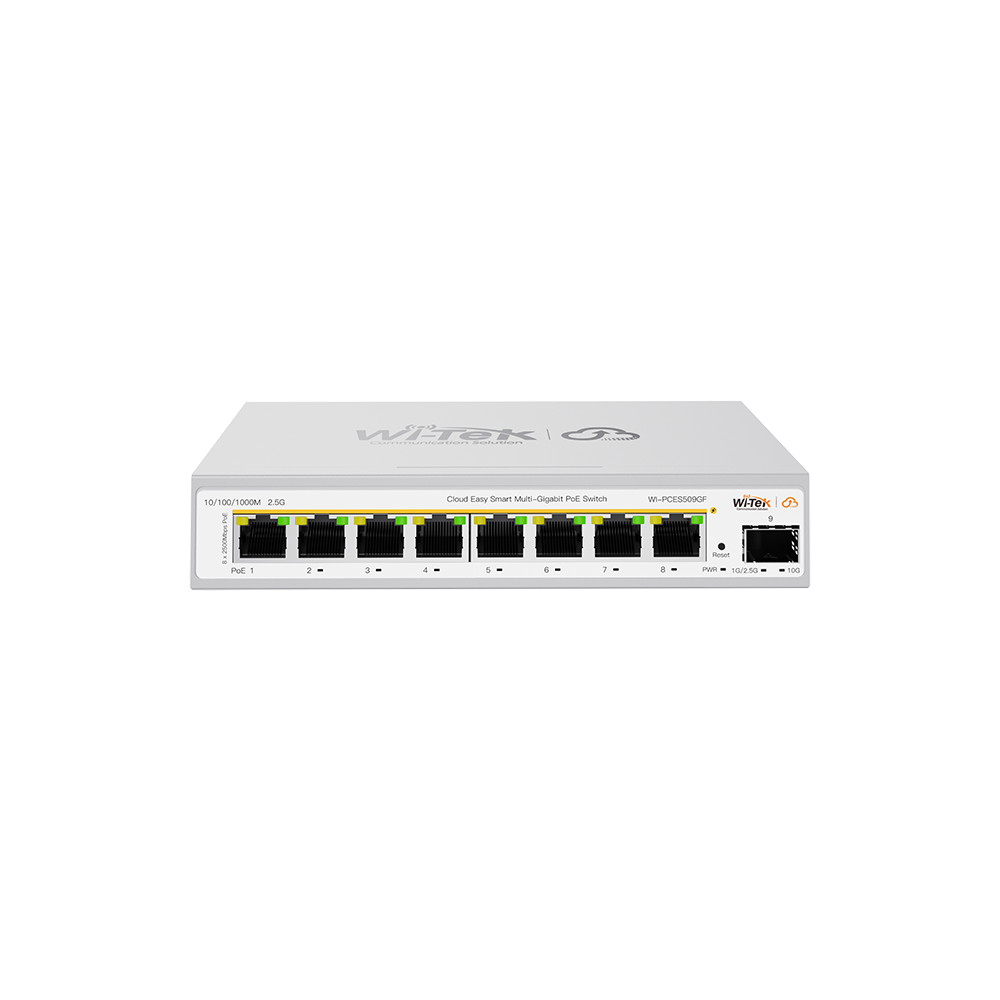

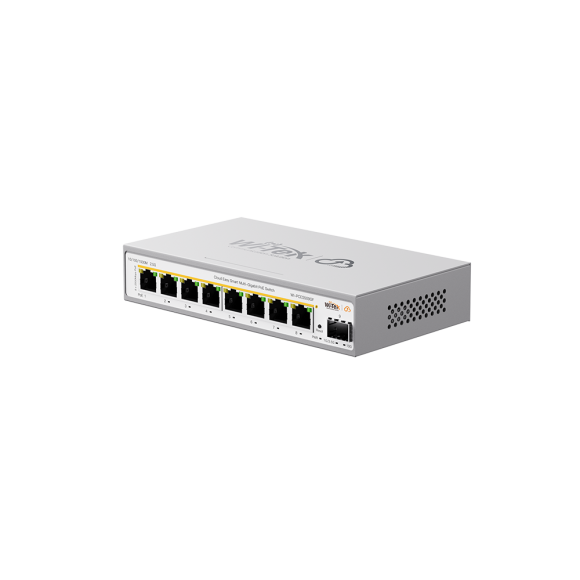

Wi-Tek - WI-PCES509GF - 2.5Gbps Cloud Easy Smart PoE/ Ethernet Switch
Product Overview
The Wi-Tek Cloud Easy Smart 2.5Gbps PoE+ Ethernet Switch is an 8-port access switch with eight 2.5Gbps PoE+ ports and one 10Gbps SFP+ uplink slot. It supports IEEE 802.3af/at power delivery, up to 137 W of total PoE power, cloud management, ONVIF camera identification, and fanless operation for quiet home and office networks.
Key Configuration
Configuration: 8 × 2.5Gbps PoE+ RJ45 ports | Uplink: 1 × 10Gbps SFP+ slot | PoE Standard: IEEE 802.3af/at | PoE Output: Up to 30 W per port | Total PoE Budget: Up to 137 W
Key Features
- · Eight 2.5Gbps RJ45 PoE+ ports provide high-speed network access
- · One 10Gbps SFP+ slot provides a high-bandwidth uplink connection
- · Supports IEEE 802.3af/at PoE standards
- · Delivers up to 30 W of PoE power per port
- · Provides a total PoE power budget of up to 137 W
- · 2.5Gbps downlink speeds overcome the limitations of standard Gigabit Ethernet
- · Supports magnetic and wall-mounted installation
- · Fanless design provides silent operation in homes and offices
- · Real-time alarms assist monitoring and troubleshooting for users with limited networking experience
- · ONVIF camera identification and Wi-Tek Cloud mobile management support remote CCTV maintenance
Technical Context
The 2.5Gbps PoE+ access ports provide additional bandwidth while delivering power and data to compatible network devices over Ethernet cabling. The 10Gbps SFP+ slot provides a high-capacity uplink for connecting the switch to an aggregation or backbone network. ONVIF support helps identify compatible IP cameras, while cloud and mobile app management enable remote monitoring and maintenance.
Installation Notes
The switch supports magnetic and wall-mounted installation, allowing flexible placement in homes, offices, and CCTV environments. Its fanless design is suitable for locations where quiet operation is required. Ensure that the connected PoE devices remain within the total 137 W power budget.
| General | |
| Model | WI-PCES509GF |
| Hardware Version | V1 |
| Interfaces | |
| Downlink Ports | 8 × 10M/100M/1000M/2.5Gbps RJ45 ports |
| Uplink Ports | 1 × 1000M/2.5G/10Gbps SFP slot |
| PoE | |
| PoE Ports | Ports 1–8: IEEE 802.3af/at |
| PoE Standard | IEEE 802.3af/at |
| PoE Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power | 30 W max. per port 130 W max. total PoE power budget |
| Performance | |
| Memory | 8 KB |
| Flash Memory | 16 MB |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.1q IEEE 802.3af IEEE 802.3at |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 60 Gbps |
| Packet Forwarding Rate | 44.64 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 8 Mbit |
| Jumbo Frame | 12 KB |
| Electrical | |
| Input Power | DC 55 V / 2.8 A max. |
| Power Consumption | Idle: 6.64 W 100% traffic rate with PoE: 137 W |
| Physical Characteristics | |
| LED Indicators | PWR: Green on - the device power is normal; Off - the device is powered off or has failed Link: Green on - port connected at 2.5 Gbps; Orange on - port connected at 10/100/1000 Mbps; Blinking - data transmission; Off - port disconnected PoE: Orange on - PoE enabled; Off - PoE disabled SFP Indicator (Port 9): 1 Gbps/2.5 Gbps - On when connected at 1G/2.5G; 10 Gbps - On when connected at 10 Gbps |
| Reset Button | Hold for more than 5 seconds to restore the factory default configuration |
| Fan Quantity | Fanless |
| Switch Dimensions | 168 × 94 × 32 mm |
| Package Dimensions | 405 × 253 × 97 mm |
| Net Weight | 0.48 kg |
| Package Weight | 0.91 kg |
| Installation | Wall-mounted, magnetic-mounted, desktop |
| Reliability | |
| Surge Immunity | IEC 61000-4-5 Common mode: 4 kV Differential mode: 2 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: 6 kV Air discharge: 8 kV |
| Environmental | |
| Operating Environment | -10°C to 50°C (14°F to 122°F); 10%–90% RH, non-condensing |
| Storage Environment | -40°C to 70°C (-40°F to 158°F); 5%–90% RH, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
