Wi-Tek - WI-PCMS310GF-I V2 - Cloud L2+ Industrial PoE+ Switch
Product Overview

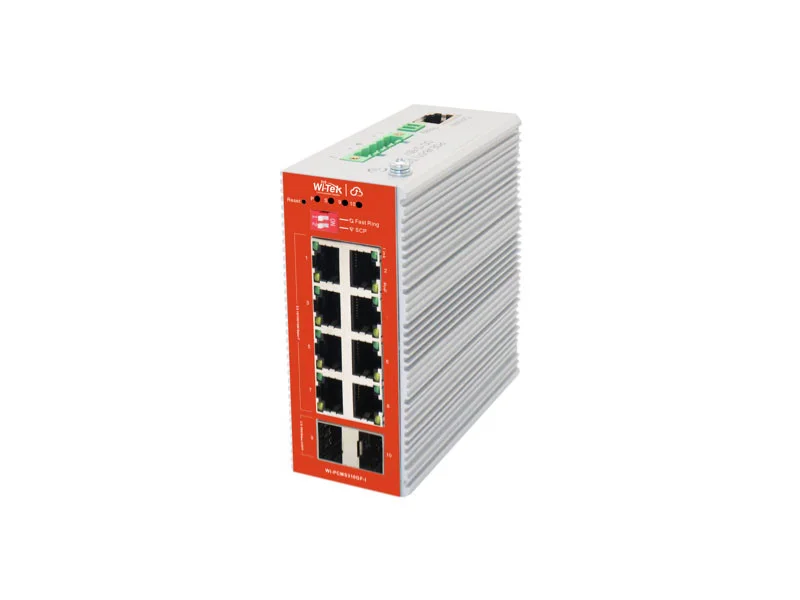

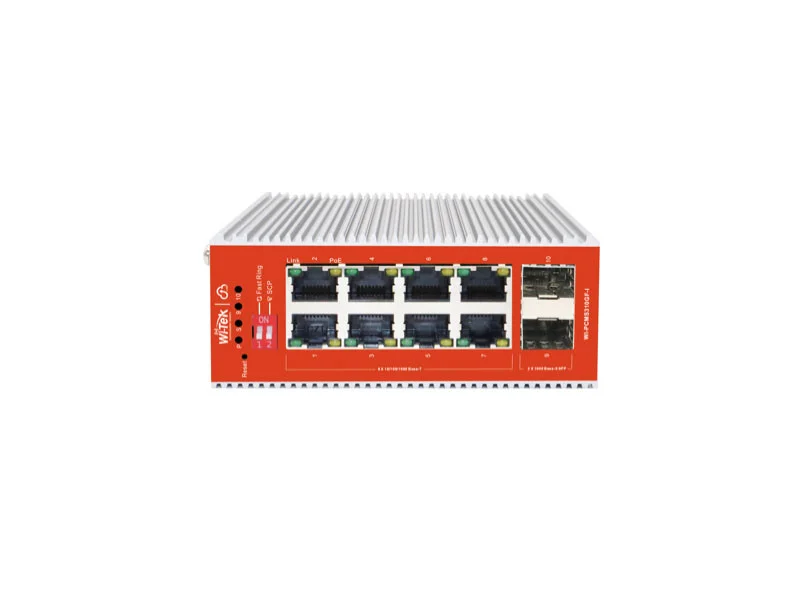

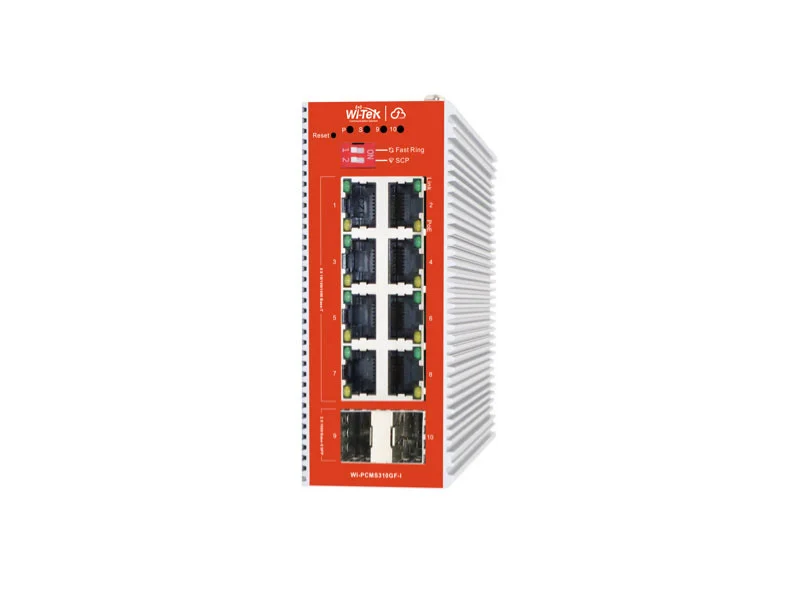

The Wi-Tek WI-PCMS306GF-I and WI-PCMS310GF-I are industrial cloud-managed PoE switches with four or eight Gigabit PoE+ RJ45 ports and two Gigabit SFP uplink slots. Each RJ45 port supports IEEE 802.3af/at PoE with up to 30 W output, while the industrial enclosure, redundant power design, wide -40°C to 75°C operating range, and high-level surge and ESD protection support reliable operation in harsh environments.
Key Configuration
Models: WI-PCMS306GF-I / WI-PCMS310GF-I | PoE Ports: 4 or 8 × 10/100/1000 Mbps RJ45 PoE+ ports | Uplink Ports: 2 × 1000 Mbps Base-X SFP slots | PoE Standard: IEEE 802.3af/at, up to 30 W per port | Protection: 6 kV surge immunity, 8 kV air-discharge and 6 kV contact-discharge ESD protection
Key Features
- · WI-PCMS306GF-I provides four Gigabit RJ45 PoE+ ports
- · WI-PCMS310GF-I provides eight Gigabit RJ45 PoE+ ports
- · Two 1000 Mbps Base-X SFP slots provide fiber uplink connectivity
- · All RJ45 ports comply with IEEE 802.3af/at PoE standards and deliver up to 30 W per port
- · Cloud management enables remote administration through the Wi-Tek Cloud platform
- · L2 functions include VLAN, STP/RSTP/MSTP, port mirroring, IGMP, QoS, multicast, ACL, DHCP, IPv6, and ERPS
- · Fast Ring mode supports one-key ring configuration for network redundancy
- · SCP mode supports one-key broadcast storm suppression configuration
- · Redundant power design includes polarity-reverse, over-voltage, and over-current protection
- · Industrial protection supports operation from -40°C to 75°C with surge and ESD resistance
Technical Context
Cloud management allows remote configuration and monitoring through the Wi-Tek Cloud platform, while L2 functions support traffic segmentation, loop prevention, multicast handling, quality of service, access control, and network redundancy. Fast Ring mode provides simplified ring setup, and SCP mode helps suppress broadcast storms in industrial networks. The PoE+ ports can power compatible devices while the SFP slots provide fiber uplinks for longer-distance or electrically isolated connections.
Installation Notes
The switches are intended for outdoor CCTV, wireless coverage, factory, park, roadway, transportation, and other industrial applications. Install the device where the ambient temperature remains between -40°C and 75°C, and connect redundant power inputs according to the project power design.
| General | |
| Model | WI-PCMS310GF-I |
| Interfaces | |
| Downlink Ports | 8 × 10/100/1000 Base-T PoE+ RJ45 ports with Auto MDI/MDI-X |
| Uplink Ports | 2 × 1000 Base-X SFP ports |
| Management Port | 1 × RJ45 console port |
| PoE | |
| PoE Standard | IEEE 802.3af/at (PSE) |
| PoE Power Supply Type | End-span |
| PoE Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Output | 46–55 V DC |
| PoE Power | 30 W max. per port 240 W max. total PoE power budget |
| Switch Properties | |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.1x IEEE 802.1q IEEE 802.1p IEEE 802.1d IEEE 802.1w IEEE 802.3ad IEEE 802.3af IEEE 802.3at |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| Power Supply | |
| Input Voltage | Power 1 (Main): 48–57 V DC Power 2 (Backup): 48–57 V DC |
| Power Consumption | Full load without PoE: ≤4 W PoE power budget: ≤240 W |
| Connector | Removable 5-pin terminal block |
| Reverse Polarity Protection | Supported |
| Over-voltage Protection | Supported |
| Over-current Protection | Supported |
| Software Features | |
| Spanning Tree | IEEE 802.1D Spanning Tree IEEE 802.1w Rapid Spanning Tree IEEE 802.1s Multiple Spanning Tree BPDU Guard STP Root Guard Loop Detection |
| VLAN | Management VLAN Private VLAN Voice VLAN Surveillance VLAN Q-in-Q (Double Tag) 802.1v Protocol VLAN MAC-Based VLAN |
| Link Aggregation | IEEE 802.3ad with LACP (Dynamic) Static Trunk |
| Energy Efficiency | EEE |
| Port Features | Jumbo Frame Error-Disable Port Mirroring LLDP (IEEE 802.1AB) LLDP-MED UDLD Cable Test DDMI |
| IGMP and Multicast | IGMP Snooping v1/v2/v3 MLD Snooping v1/v2 MVR ERPS |
| Loop Protection | Loopback Detection |
| QoS | |
| QoS Features | Hardware Queues Port-Based QoS 802.1p CoS DSCP IP Precedence TCP/UDP for IPv4/IPv6 Class of Service Ingress and Egress Rate Limiting WRR Strict Priority Queue Scheduling DSCP & CS IPv4 QoS (QCEs) IPv6 QoS (QCEs) |
| Security | |
| Security Features | Port Security L2+/L3/L4 ACLs IPv6 Support Management Access List Port Isolation IEEE 802.1x AAA Management ACL/Management ACE IP Source Guard (IP-MAC-Port Binding) Dynamic ARP Inspection Storm Control RADIUS/TACACS+ RADIUS Authentication (RFC 2138) DDoS Prevention HTTPS and SSL secured web access SSH v1.5/v2.0 secured Telnet session DHCP Snooping DHCP Relay |
| Management | |
| Management Protocols | SNMP v1/v2c/v3 RMON groups 1, 2, 3 and 9 Software Upgrade Configuration Export/Import DHCP Client DHCP Option 82 DHCP Option 66 DHCP Option 67 Syslog Console SNMP HTTP/HTTPS Telnet DHCP Event/Error Log Management Access Filtering DNS Client Traceroute Ping NTP/SNTP (RFC 2030) |
| IPv6 Management | Dual IPv6/IPv4 stack IPv6 Web/SSL IPv6 SNTP IPv6 Telnet/SSH IPv6 Ping/Traceroute IPv6 TFTP IPv6 RADIUS/TACACS+ IPv6 SNMP |
| PoE Management | |
| PoE Management Features | Alive Checking for PD PoE Delay PoE Schedule ONVIF Detection ONVIF Server (NLM) |
| LED Indicators | |
| System Indicators | P (Power): Off - device powered off or failed; On - normal power S (System): Off - system initialization; Blinking - system operating normally |
| Copper Port Indicators | Green: Link/activity Off - port link down; On - port link up; Blinking - TX/RX data transmission |
| PoE Indicators | Yellow: PoE status; Off - PoE not working; On - PoE working |
| Fiber Port Indicators | Off - port link down; On - port link up; Blinking - TX/RX data transmission |
| Reliability | |
| Surge Immunity | Common mode: ±6 kV Differential mode: ±2 kV |
| ESD Protection | Air discharge: ±8 kV Contact discharge: ±6 kV |
| Environmental | |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 80°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Mechanical | |
| Dimensions | 110 × 92 × 46 mm |
| Net Weight | 480 g |
| Installation | Desktop, DIN-rail |
| Certifications | |
| Certifications | CE, FCC, RoHS |
