Wi-Tek - WI-PCMS5010BT-L3 - Cloud L3 Managed PoE Switch

Product Overview

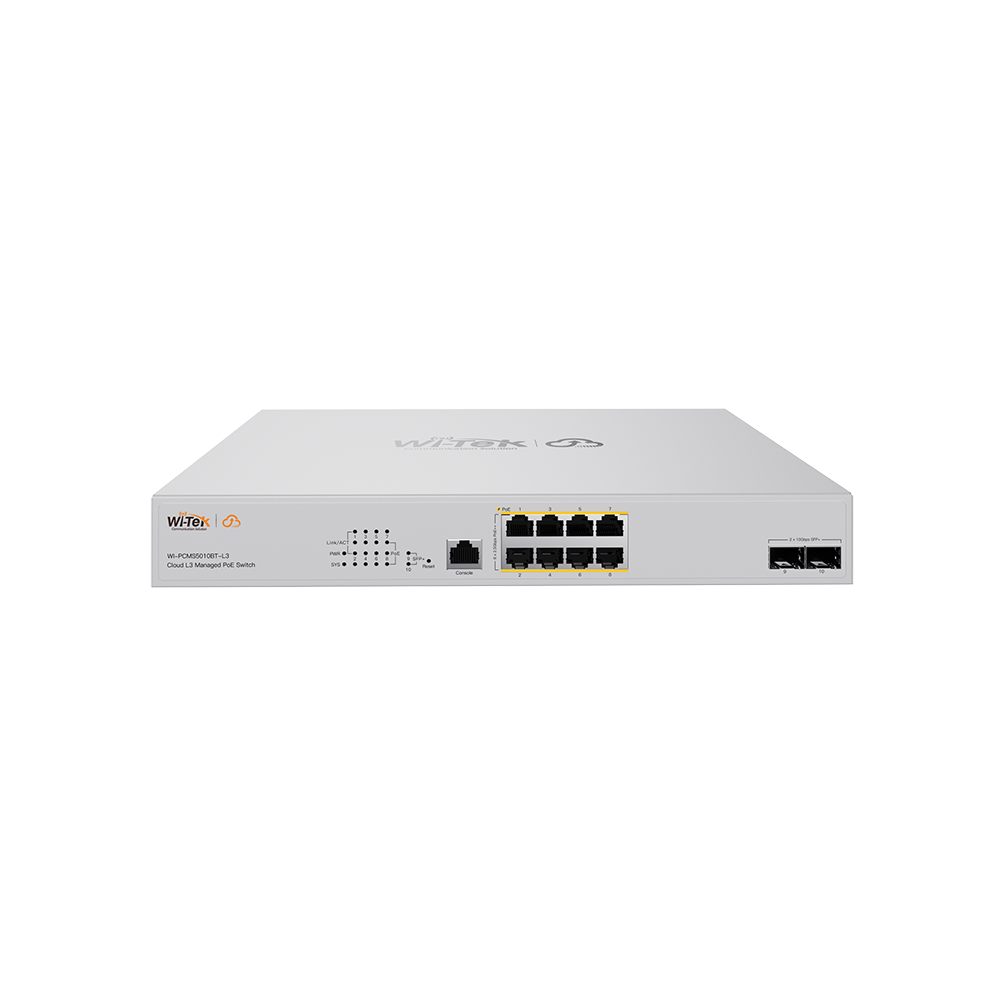

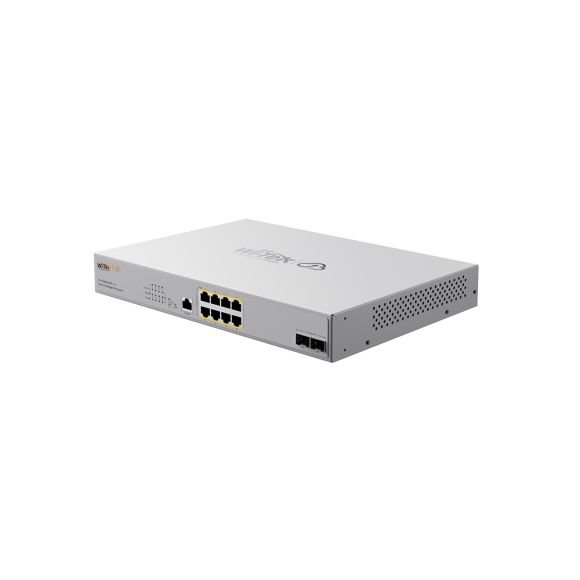

The Wi-Tek WI-PCMS5010BT-L3 is a Cloud L3 managed PoE aggregation and core switch designed for high-performance surveillance, enterprise, and network infrastructure deployments. It provides eight 2.5Gbps PoE++ RJ45 ports, two 10Gbps SFP+ slots, up to 90W PoE output per port, and a total PoE power budget of up to 426.3W.

Key Configuration

Model: WI-PCMS5010BT-L3 | Product Type: Cloud L3 Managed PoE Aggregation/Core Switch | PoE Ports: 8 x 2.5Gbps RJ45 | SFP+ Slots: 2 x 10Gbps | PoE Standard: IEEE 802.3af/at/bt | PoE Output: Up to 90W on ports 1-8 | Total PoE Budget: Up to 426.3W | L3 Features: Static Routing, RIP, OSPF, DHCP Server/Relay | Management: Web, CLI, Telnet, SNMP, RMON, Cloud Management

Key Features

 · Provides eight 2.5Gbps PoE++ RJ45 ports for high-bandwidth powered devices

 · Includes two 10Gbps SFP+ slots for high-speed fiber uplinks

 · Ports 1-8 support IEEE 802.3af/at/bt PoE++ output up to 90W

 · Total PoE power budget of up to 426.3W supports demanding PoE deployments

 · L3 features include Static Routing, RIP, OSPF, and DHCP Server/Relay

 · Security functions include ACL, DoS Defend, DHCP Snooping, 802.1X, and IP-MAC-Port Binding

 · Rich QoS policies support flexible resource allocation

 · Multiple VLAN protocols help separate traffic and improve network reliability

 · Supports Web, CLI, Telnet, SNMP, and RMON management

 · Cloud management enables easy and flexible remote maintenance

Technical Context

This switch is intended for aggregation and core network roles where high-speed PoE access, 10Gbps uplinks, and Layer 3 routing features are required. The 2.5Gbps PoE++ ports make it suitable for high-bandwidth IP cameras, wireless access points, and other powered network devices.

Layer 3 routing, VLAN support, QoS policies, and security controls help segment traffic, prioritize critical services, and protect the network from unauthorized access or disruptive traffic patterns.

Installation Notes

The WI-PCMS5010BT-L3 is suitable for managed network deployments requiring PoE++, high-capacity uplinks, and cloud-based maintenance. PoE planning should account for the total 426.3W power budget and the 90W maximum output available on each PoE port.
