Wi-Tek - WI-POE62-24V - Industrial-Grade, Boost PoE Injector

Product Overview

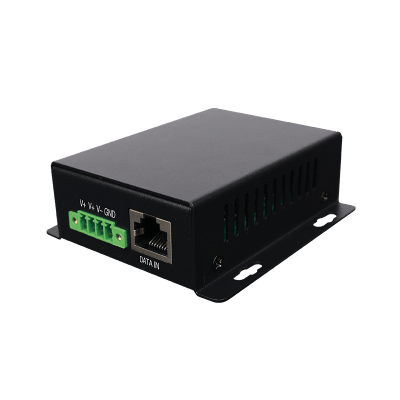

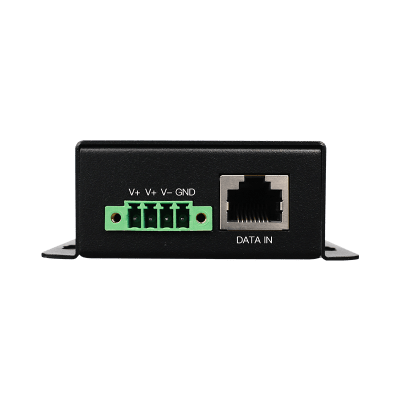

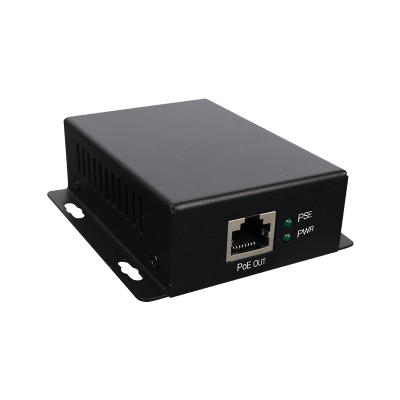

This industrial passive PoE injector converts standard PoE power into a 24 V passive PoE output for wireless access points, antennas, and point-to-point links. It features two Gigabit RJ-45 ports, a flexible 9-32 V DC power input, and a compact design suitable for solar systems and demanding installation environments.

Key Configuration

Output: 24 V passive PoE, up to 24 W | Network Interfaces: 2 x 10/100/1000 Mbps RJ-45 ports | Input Power: 9-32 V DC, 3 A max | PoE Pin Assignment: 4,5 (+), 7,8 (-) | Dimensions: 78 x 83.2 x 28 mm | Operating Temperature: -20°C to 70°C

Key Features

• · Converts standard PoE power into a 24 V passive PoE output
• · Provides up to 24 W of passive PoE output power
• · Includes 2 x 10/100/1000 Mbps Gigabit RJ-45 ports
• · Supports flexible 9-32 V DC input with up to 3 A current
• · Uses PoE output pin assignment 4,5 (+) and 7,8 (-)
• · Supports wireless devices from Ubiquiti, Cambium, Mimosa, MikroTik, and other compatible brands
• · Provides plug-and-play installation without additional configuration
• · Operates across an extended temperature range from -20°C to 70°C
• · Compact 78 x 83.2 x 28 mm design supports space-constrained installations
• · Complies with CE, FCC, RoHS, UKCA, and RCM requirements

Technical Context

The injector supplies 24 V passive PoE power over the designated Ethernet pairs while maintaining Gigabit network connectivity between the upstream network and the powered device. Its 9-32 V DC input makes it suitable for variable-voltage sources such as solar power systems, vehicle power supplies, and other off-grid installations.

Installation Notes

Connect the network source to one RJ-45 port, the compatible passive PoE device to the PoE output, and provide a 9-32 V DC power source capable of up to 3 A. Verify that the connected equipment supports 24 V passive PoE and the specified pin assignment before operation.
