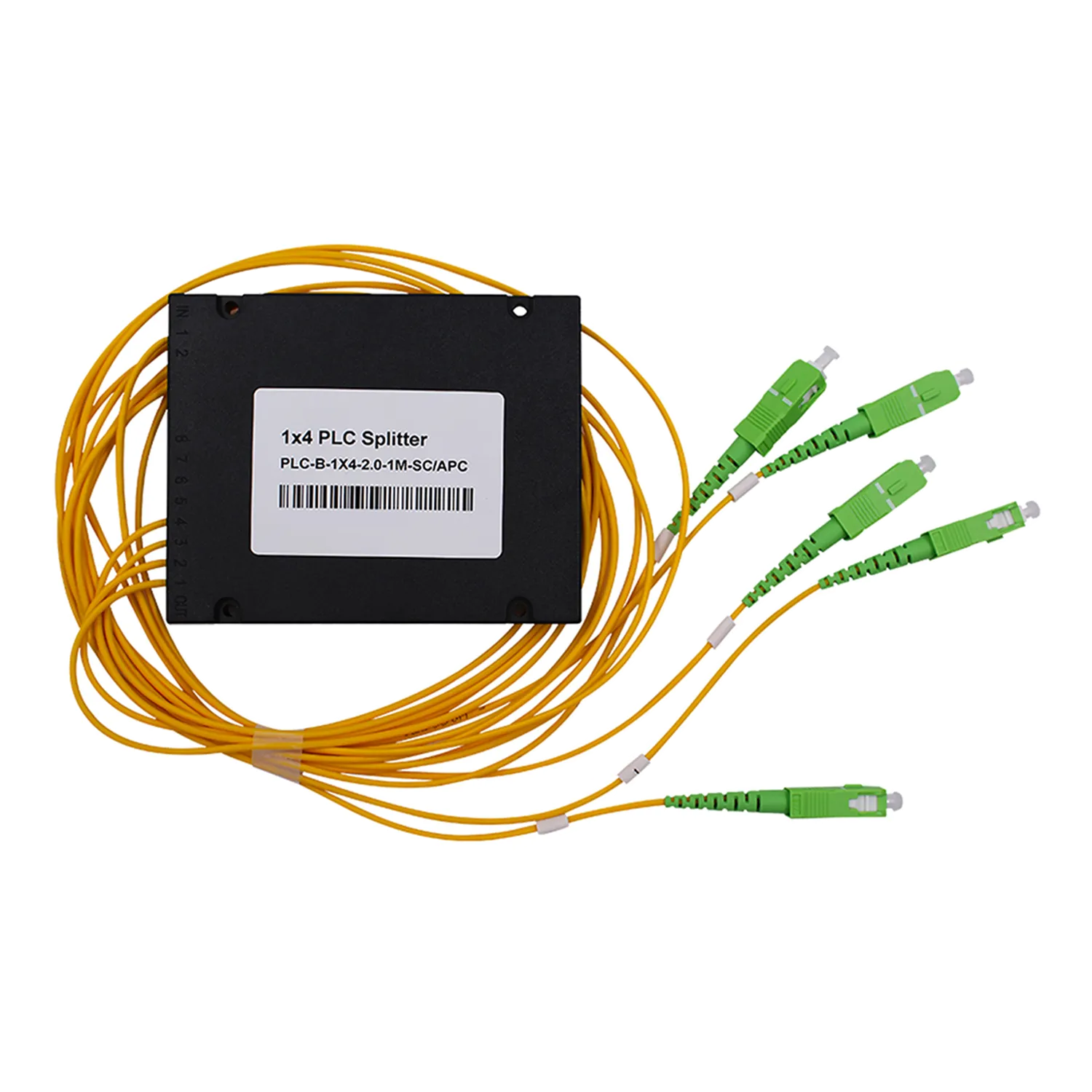

Wi-Tek - WI-POS102B - ABS Box PassiveOptical Splitter
Part number:
Price:
Highlight Features
● Low Insertion loss
● Low PDL
● Compact Design
● High Reliability and Stability
● Good Channel-to-channel Uniformity
● Split Ratio, and Connector Options can be Customized
● Wide Operating Wavelength: From 1260nm to 1650nm
● Wide Operating Temperature: From -40°C to 85°C
| Model Number | WI-POS102B |
| Product Type | 1x2 |
| Operating Wavelength | 1260~1650 nm |
| Insertion Loss Typ. | 3.6 dB |
| Insertion Loss Max. | 4.1 dB |
| Uniformity (Max.) | 0.5 dB |
| PDL (Max.) | 0.2 dB |
| Return Loss | ≥55 dB (APC Connector) ≥50 dB (UPC Connector) |
| Directivity | ≥55 dB |
| Package Style | ABS Module |
| Fiber Mode | Single mode |
| Dimensions | 100 × 80 × 10 mm |
| Temperature | -40~85°C |
| Connector Type | SC/APC *FC/APC, LC/APC, FC/UPC, LC/UPC, ST/UPC can be customized |
| Fiber Type | G.657A1 |
| Input / Output Fiber Diameter | 2.0 mm *0.9/3.0 can be customized |
| Pigtail Length | 1 m *Other pigtail length can be customized |
