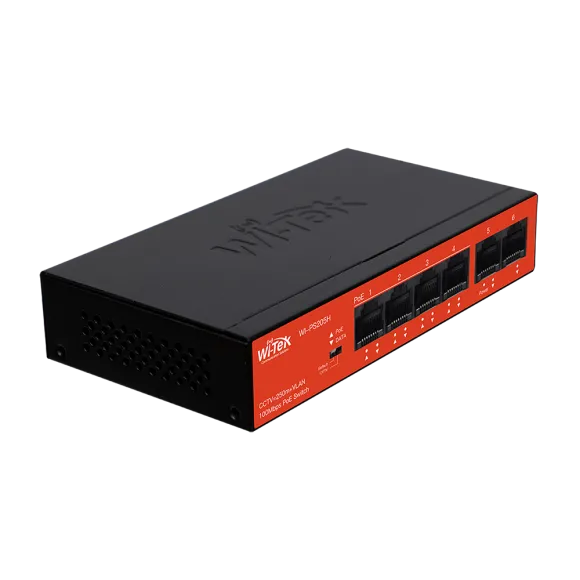

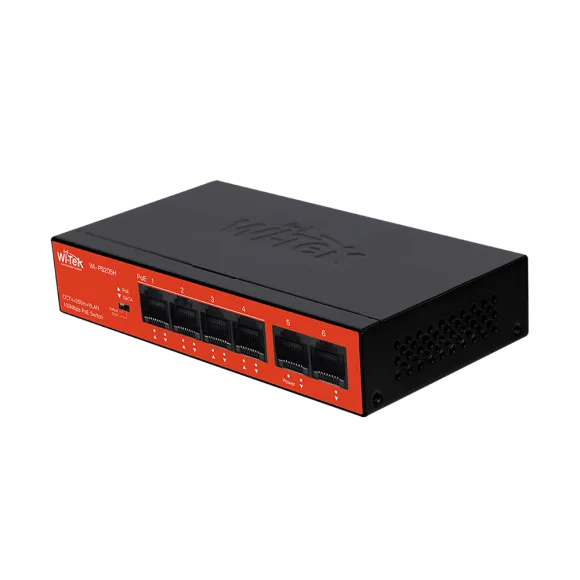

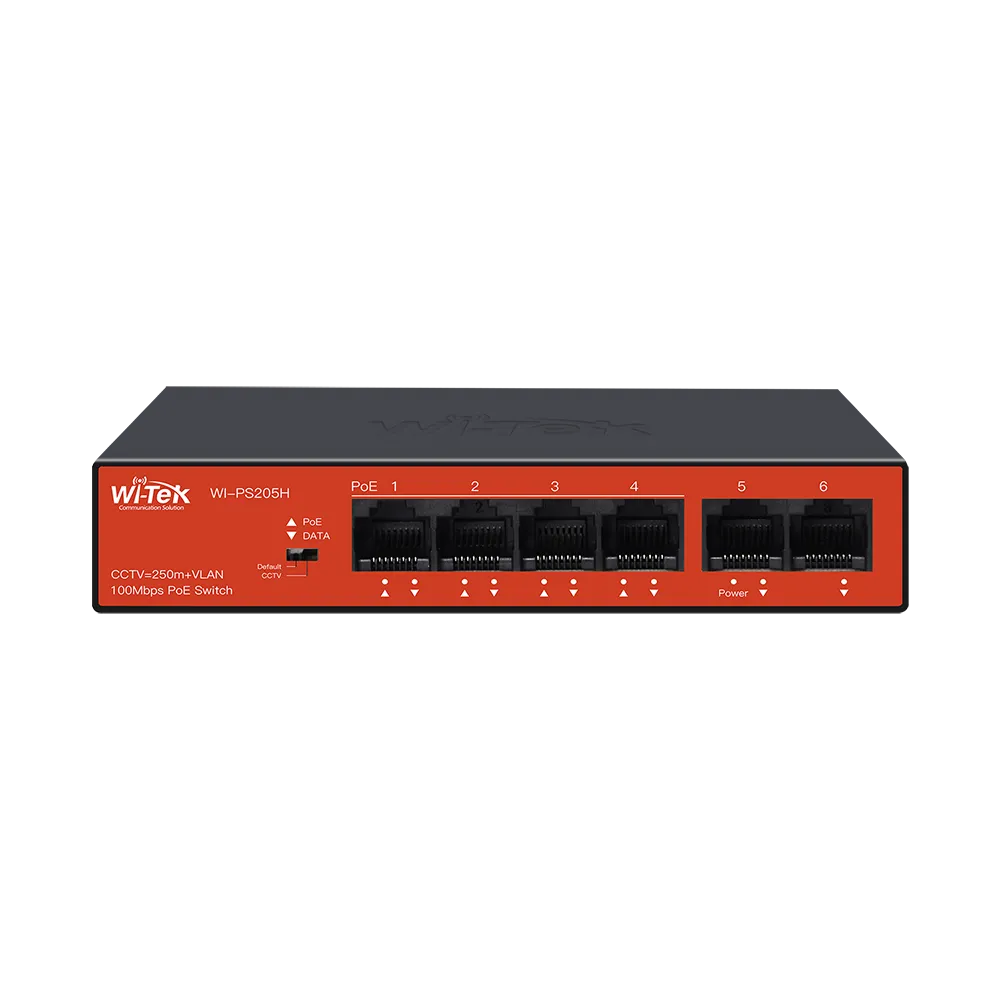

Wi-Tek - WI-PS205H V3 - 100Mbps PoE Unmanaged Switch

Product Overview

This Wi-Tek 100Mbps PoE Unmanaged Switch is designed for simple CCTV and PoE access deployments that require plug-and-play operation, PoE device power, long-distance CCTV mode, and automatic PoE device recovery. It provides four 100Mbps PoE ports, two 100Mbps RJ45 uplink ports, IEEE 802.3af/at PoE output up to 30W per port, and a total PoE power budget of up to 45W.

Key Configuration

Product Type: 100Mbps PoE Unmanaged Switch | PoE Ports: 4 x 100Mbps | Uplink Ports: 2 x 100Mbps RJ45 | PoE Standard: IEEE 802.3af/at | PoE Output: Up to 30W on ports 1-4 | Total PoE Budget: Up to 45W | CCTV Mode: 250m long-distance support and port isolation | Recovery Feature: PoE Watchdog | Setup: Plug and play, no configuration required

Key Features

 · Provides four 100Mbps PoE ports for powered network devices

 · Includes two 100Mbps RJ45 uplink ports for network connectivity

 · Ports 1-4 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 45W supports small PoE deployments

 · CCTV Mode supports up to 250m long-distance transmission

 · Port isolation function helps separate connected devices in CCTV Mode

 · PoE watchdog detects and reboots unresponsive PoE-powered devices

 · Plug-and-play operation requires no configuration

Technical Context

This switch is intended for small unmanaged PoE networks where IP cameras or other PoE devices need basic 100Mbps connectivity and power over Ethernet. Its plug-and-play design allows quick installation without software setup or managed switch configuration.

CCTV Mode extends transmission distance up to 250m and enables port isolation, making the switch useful for surveillance installations where longer cable runs and simple device separation are required.

Installation Notes

This unmanaged PoE switch is suitable for small CCTV and PoE access installations. PoE planning should account for the total 45W power budget and the 30W maximum output available on ports 1-4.
