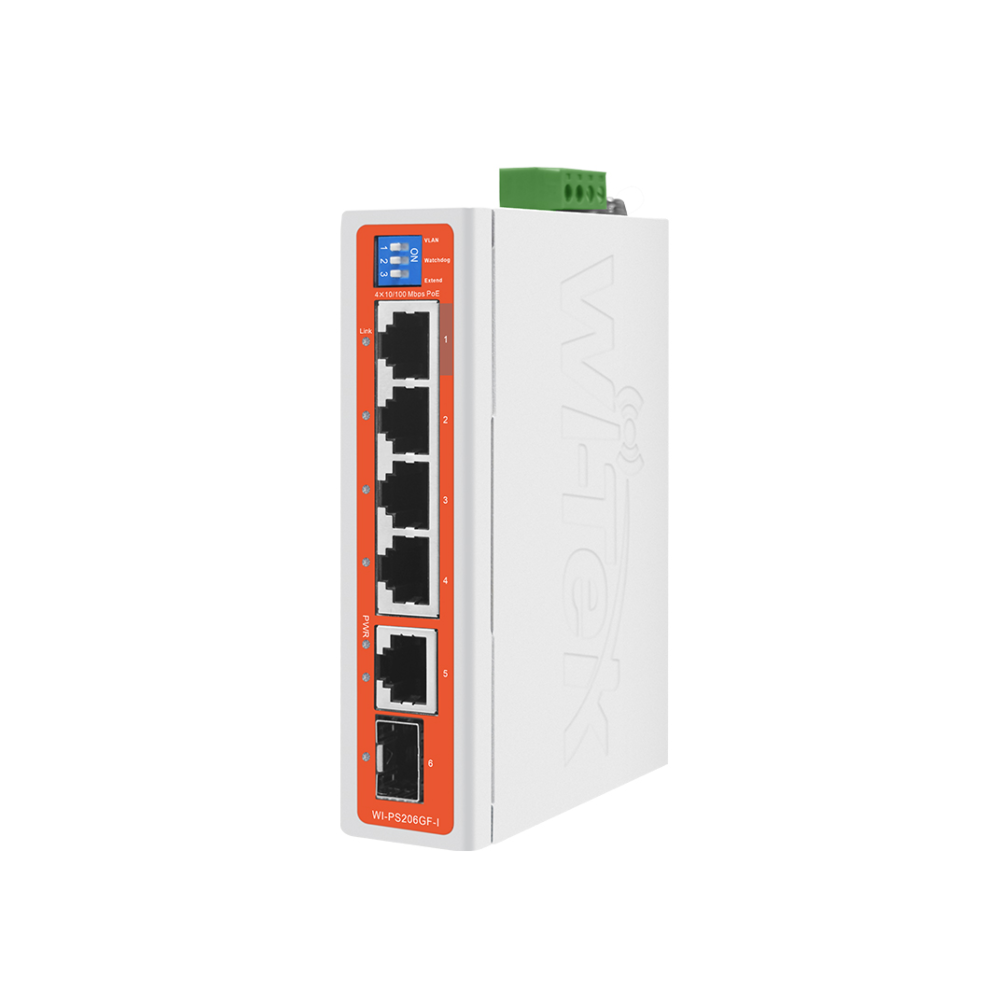

Wi-Tek - WI-PS206GF-I V2 - Network PoE Switch
Product Overview
The Wi-Tek WI-PS206GF-I and WI-PS212GF-I are hardened industrial PoE switches designed for outdoor CCTV, wireless coverage, and other demanding network applications. The WI-PS206GF-I provides four 10/100 Mbps PoE ports, while the WI-PS212GF-I provides eight, with both models featuring one 1000 Mbps RJ45 port and one 1000 Mbps SFP slot for Gigabit uplinks.
Key Configuration
Models: WI-PS206GF-I / WI-PS212GF-I | PoE Ports: 4 or 8 × 10/100 Mbps PoE ports | Uplink Ports: 1 × 1000 Mbps RJ45 and 1 × 1000 Mbps SFP slot | Power Input: Redundant 48–57 V DC | Operating Temperature: -30°C to 65°C
Key Features
- · WI-PS206GF-I provides four 10/100 Mbps PoE ports
- · WI-PS212GF-I provides eight 10/100 Mbps PoE ports
- · One 1000 Mbps RJ45 port provides Gigabit copper uplink connectivity
- · One 1000 Mbps SFP slot supports Gigabit fiber uplink connectivity
- · Wide operating temperature range from -30°C to 65°C supports harsh environments
- · 6 kV surge immunity helps protect the switch from electrical surges
- · Provides 15 kV air-discharge and 8 kV contact-discharge ESD protection
- · Redundant 48–57 V DC power inputs provide an alternative power supply path
- · VLAN mode isolates downlink PoE ports while maintaining uplink communication
- · PoE Watchdog mode can detect and reboot offline compliant PoE devices
Technical Context
The switch combines 10/100 Mbps PoE access ports with separate Gigabit RJ45 and SFP uplinks for connecting cameras, wireless devices, and network infrastructure. VLAN mode separates downlink traffic, while PoE Watchdog mode monitors powered devices and can automatically reboot compliant equipment that becomes unresponsive. Extend mode supports PoE transmission distances up to 250 m by limiting the port speed to 10 Mbps.
Installation Notes
The hardened switch is designed for outdoor CCTV, wireless coverage, factory, park, and other harsh-environment deployments. Use the redundant 48–57 V DC power inputs according to the installation design, and ensure that the operating temperature remains within -30°C to 65°C.
| General | |
| Model | WI-PS206GF-I |
| Housing | Metal |
| Cooling System | Passive cooling |
| Interfaces | |
| PoE Ports | 4 × 10/100 Mbps Base-T PoE RJ45 ports with Auto MDI/MDI-X |
| Uplink SFP Port | 1 × 1000 Mbps Base-X SFP slot |
| Uplink RJ45 Port | 1 × 10/100/1000 Mbps Base-T RJ45 port with Auto MDI/MDI-X |
| PoE | |
| PoE Standard | Ports 1–4: IEEE 802.3af/at PoE |
| PoE Power Supply Type | End-span |
| PoE Power | Up to 30 W per port |
| Total PoE Power Budget | Up to 120 W, depending on the connected power supply |
| Network Performance | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Switching Capacity | 4.8 Gbps |
| Packet Forwarding Rate | 3.57 Mpps |
| Packet Buffer Memory | 3.57 Mbit |
| MAC Address Table | Up to 2K |
| Jumbo Frame | 10 KB |
| Operating Modes and Functions | |
| Watchdog | Automatically detects unresponsive IP cameras or other connected equipment and restarts PoE power on the affected ports. |
| VLAN Mode | Provides physical port isolation to restrict communication between connected devices and improve network security. |
| Extend Mode | Extends PoE transmission distance up to 250 m, allowing remote devices to be connected without PoE repeaters. |
| PoE Priority | Prioritizes PoE power allocation between ports. A lower-priority port is disabled when the total PoE budget is exceeded. |
| Power Supply | |
| Power Input 1 | 48–55 V DC |
| Power Input 2 | 48–55 V DC |
| Power Input 3 | 48–55 V DC |
| Auxiliary Power Input | 12–39 V DC |
| Reliability | |
| Surge Protection | Standard mode: ±6 kV |
| ESD Protection | Contact discharge: ±8 kV Air discharge: ±15 kV |
| Environmental | |
| Operating Temperature | -30°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% RH, non-condensing |
| Mechanical | |
| Dimensions | 155 × 113 × 47 mm |
| Weight | 0.5 kg |
| Installation | DIN-rail, desktop, or wall-mounted |
