Wi-Tek - WI-PS212GF-I V2 - Industrial PoE switch, 8x PoE

Product Overview

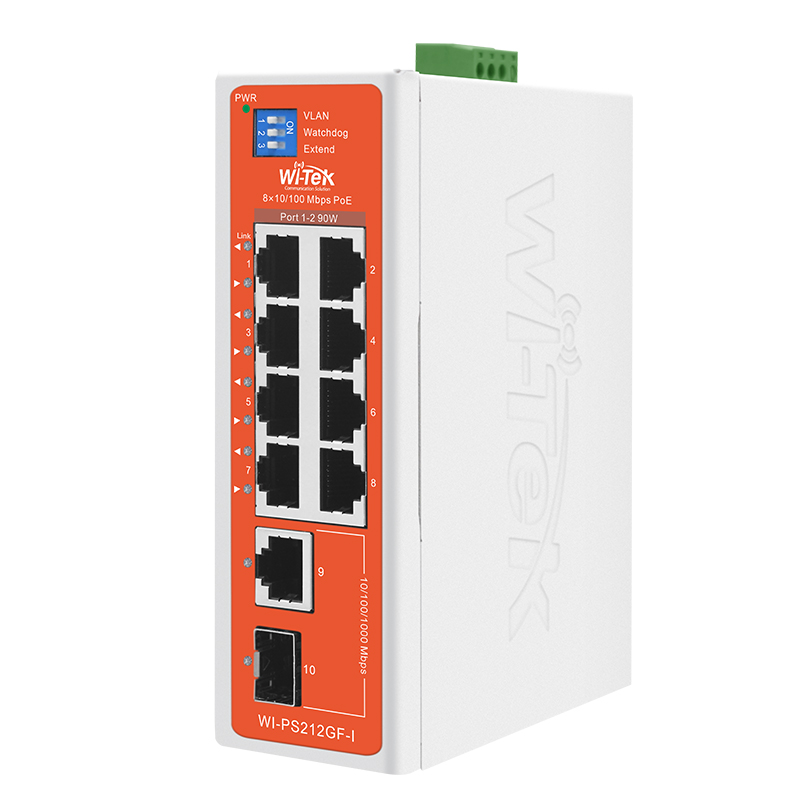

The Wi-Tek WI-PS212GF-I V2 is an industrial unmanaged PoE switch designed for surveillance and industrial network edge deployments. It combines eight 100Mbps PoE-out ports, one 1Gbps Ethernet uplink port, one SFP port for fiber connectivity, redundant DC power input support, and DIP switch modes for VLAN isolation, PoE watchdog, and extended-distance transmission.

Key Configuration

Model: WI-PS212GF-I V2 | Product Type: Industrial Unmanaged PoE Switch | PoE Ports: 8 x 100Mbps PoE-out Ethernet | Uplink Port: 1 x 1Gbps Ethernet | Fiber Port: 1 x SFP | PoE Output: Ports 1-2 support 802.3af/at/bt up to 90W; ports 3-8 support 802.3af/at up to 30W | PoE Budget: 110W with included power adapter, expandable up to 260W with suitable industrial power supply | Power Input: 48-57V DC terminal block | Redundant Power: Supports two independent power sources | Mounting: Desktop, wall, DIN rail

Key Features

 · Provides eight 100Mbps PoE-out Ethernet ports for powered devices

 · Includes one 1Gbps Ethernet uplink port for network connectivity

 · Includes one SFP port for fiber uplink connectivity

 · Ports 1-2 support IEEE 802.3af/at/bt PoE output up to 90W per port

 · Ports 3-8 support IEEE 802.3af/at PoE output up to 30W per port

 · Total PoE budget is 110W with the included power adapter

 · PoE budget can be expanded up to 260W with a suitable industrial power supply

 · 48-57V DC terminal block power input supports industrial installation

 · Redundant power input supports connection of two independent power sources

 · DIP switch VLAN mode enables port isolation between PoE ports

 · DIP switch Watchdog mode detects and restarts unresponsive PoE-powered devices

 · DIP switch Extend mode supports PoE transmission up to 250m at 10Mbps

 · Supports desktop, wall, or DIN-rail installation

Technical Context

This switch is intended for industrial PoE deployments where cameras or other powered devices need reliable Ethernet power, fiber connectivity, and simple unmanaged operation. The high-power PoE++ ports are useful for demanding devices, while the standard PoE+ ports support common IP cameras and PoE endpoints.

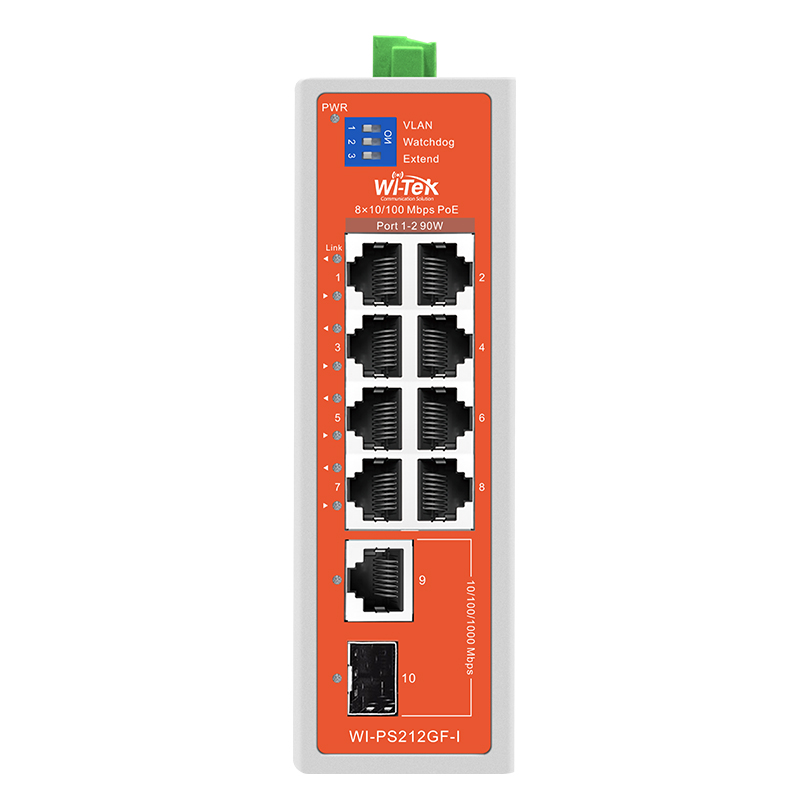

The front-panel DIP switch allows quick mode selection without software configuration. VLAN isolation helps separate PoE device traffic, Watchdog mode can recover unresponsive powered devices, and Extend mode supports longer cable runs by reducing port speed to 10Mbps.

Installation Notes

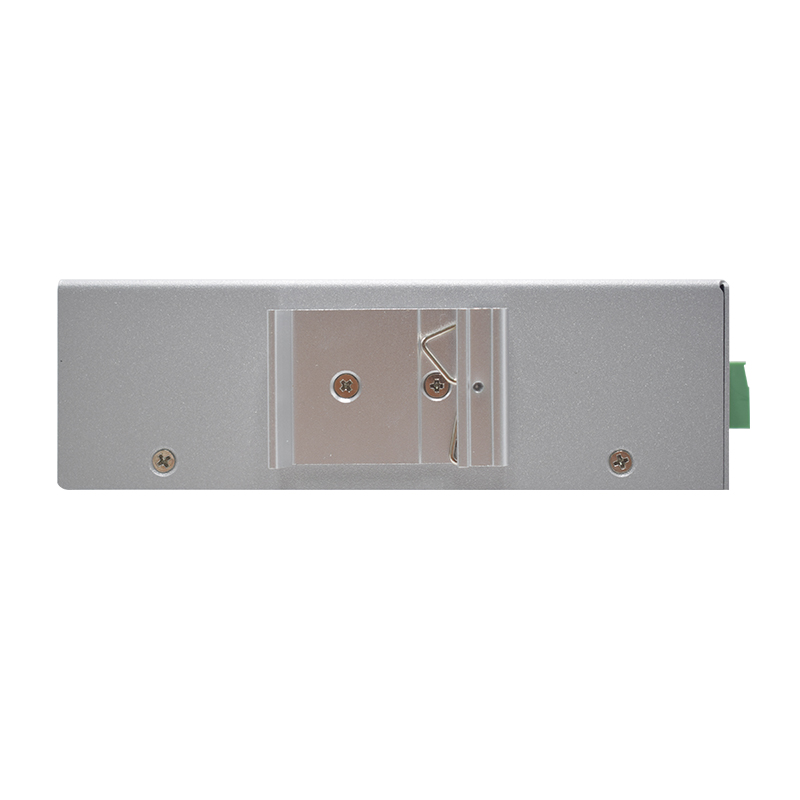

The WI-PS212GF-I V2 can be installed on a desktop, wall, or DIN rail. Power planning should account for the 110W budget with the included adapter or up to 260W when using a suitable industrial power supply, and redundant power input should be wired through the terminal block when backup power is required.
