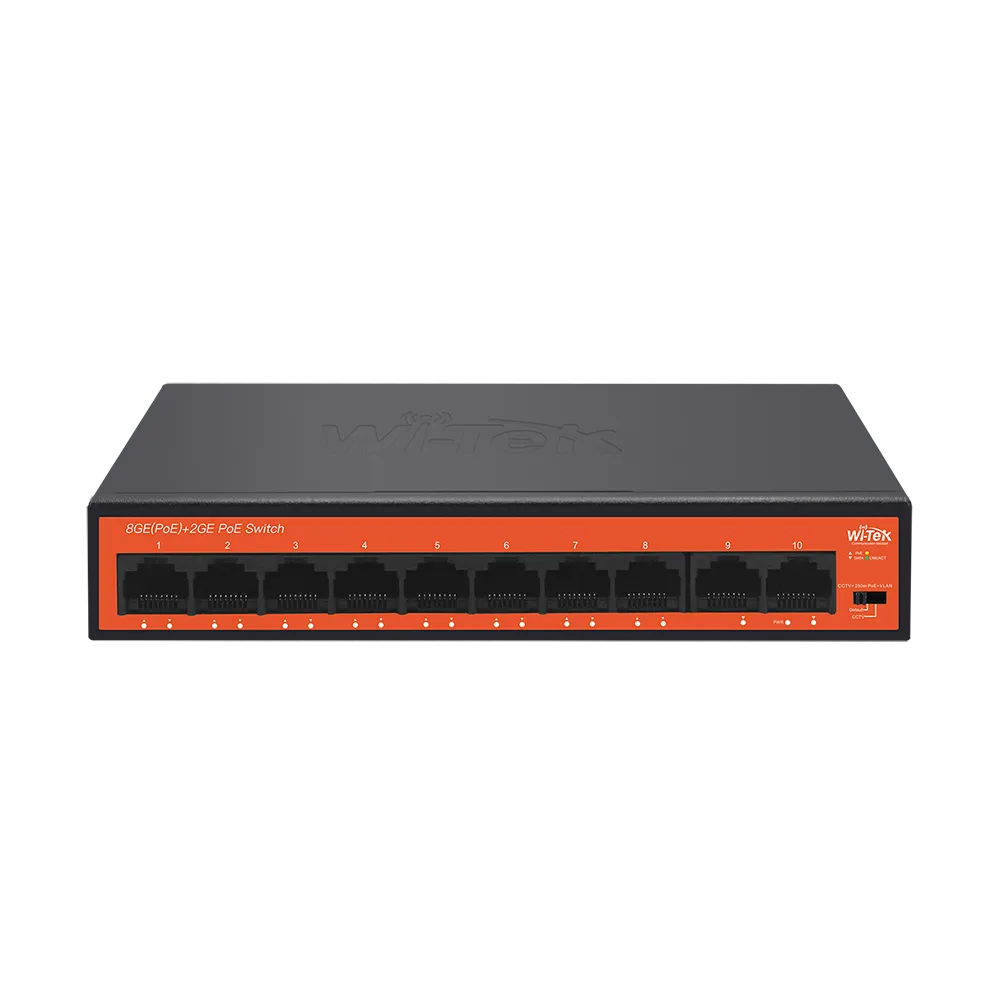

Wi-Tek - WI-PS308GH-V2 - 1000Mbps PoE Unmanaged Switch

Product Overview

This Wi-Tek 1000Mbps PoE unmanaged switch is designed for plug-and-play Gigabit PoE access in surveillance and network device deployments. It provides eight Gigabit PoE ports, two Gigabit RJ45 uplink ports, 802.3af/at PoE support up to 30W per PoE port, and a total PoE power budget of up to 65W.

Key Configuration

Product Type: 1000Mbps PoE Unmanaged Switch | PoE Ports: 8 x 1000 Mbps | Uplink Ports: 2 x 1000 Mbps RJ45 | PoE Standard: IEEE 802.3af/at | PoE Output: Up to 30W on ports 1-8 | Total PoE Budget: Up to 65W | CCTV Mode: 250m long-distance support and port isolation | Setup: Plug and play, no configuration required

Key Features

 · Provides eight 1000 Mbps PoE ports for powered network devices

 · Includes two 1000 Mbps RJ45 uplink ports for network connectivity

 · Ports 1-8 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 65W supports multiple PoE endpoints

 · CCTV Mode supports up to 250m long-distance transmission

 · Port isolation function helps separate connected devices in CCTV Mode

 · PoE watchdog detects and reboots unresponsive PoE-powered devices

 · Plug-and-play operation requires no configuration

Technical Context

The switch is intended for straightforward Gigabit PoE deployments where IP cameras, access points, or other PoE devices need both data and power over Ethernet. Its unmanaged design reduces setup complexity and allows quick deployment without software configuration.

CCTV Mode extends transmission distance up to 250m and enables port isolation, making the switch useful for surveillance installations where long cable runs and device separation are required.

Installation Notes

This unmanaged PoE switch is suitable for plug-and-play installation in small surveillance, access control, and network edge deployments. Power planning should account for the total 65W PoE budget when connecting multiple PoE-powered devices.
