Wi-Tek - WI-PS310G-F-M12 - Flat-type Unmanaged Switch

Product Overview

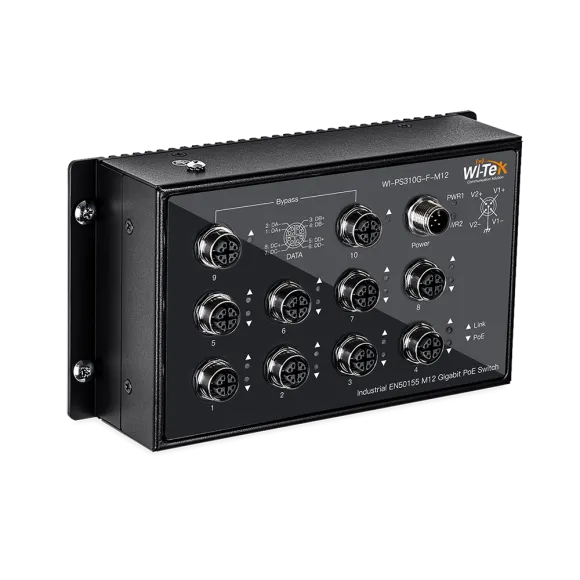

The Wi-Tek WI-PS310G-F-M12 is an industrial EN50155 M12 Gigabit PoE switch designed for rail transit, vehicles, trackside systems, and other harsh environments. It provides eight M12 X-code Gigabit PoE+ ports and two M12 X-code Gigabit ports with a bypass function, supporting up to 30 W per PoE port and redundant 24–56 V DC power input.

Key Configuration

Model: WI-PS310G-F-M12 | PoE Ports: 8 × M12 X-code Gigabit PoE+ ports | Uplink Ports: 2 × M12 X-code Gigabit ports with bypass function | PoE Standard: IEEE 802.3af/at, up to 30 W per port | PoE Budget: Up to 200 W at 56 V DC input or 90 W at 24 V DC input | Power: Redundant dual 24–56 V DC input

Key Features

• · Eight M12 X-code Gigabit PoE+ ports support industrial network devices
• · Two M12 X-code Gigabit ports include a bypass function for network continuity
• · PoE ports 1–8 comply with IEEE 802.3af/at standards
• · Delivers up to 30 W per PoE port
• · Provides up to 200 W of PoE power at 56 V DC input and up to 90 W at 24 V DC input
• · Provides a 20 Gbps switching capacity and 14.88 Mpps packet-forwarding rate
• · Includes an 8K MAC address table, 4.1 Mbit packet buffer, and 9 kB jumbo frames
• · Supports redundant dual 24–56 V DC power input through M12 power connections

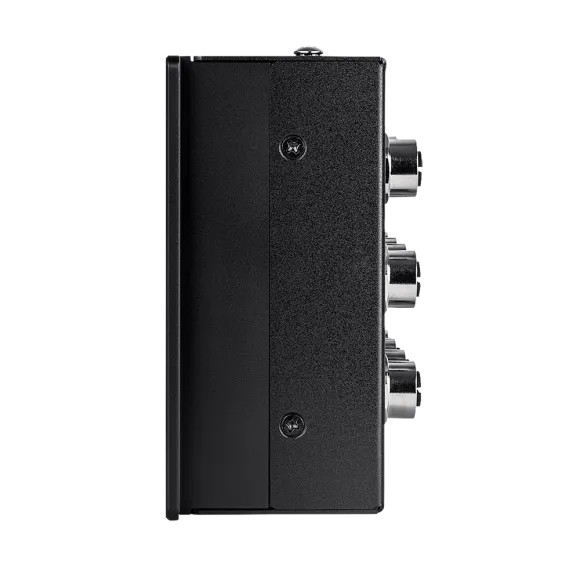

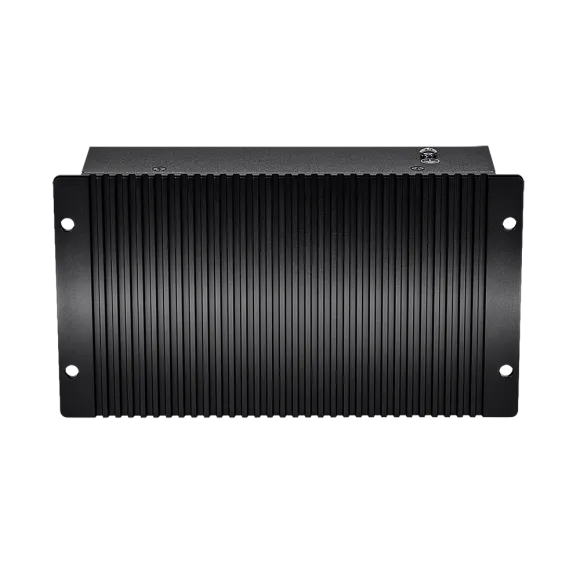

• · Fanless design and compact 196 × 99 × 59 mm enclosure support space-limited installations
• · EN50155 design supports -40°C to 75°C operation with surge, ESD, overload-current, and reverse-polarity protection

Technical Context

The M12 X-code connectors provide secure Gigabit data and PoE connections for rail and vehicle environments exposed to vibration and shock. The two Gigabit ports with bypass function help maintain network continuity if a downstream connection or device loses power. The switch uses store-and-forward processing, supports 9 kB jumbo frames, and can power compatible IEEE 802.3af/at devices such as IP cameras, wireless access points, and IP phones.

Installation Notes

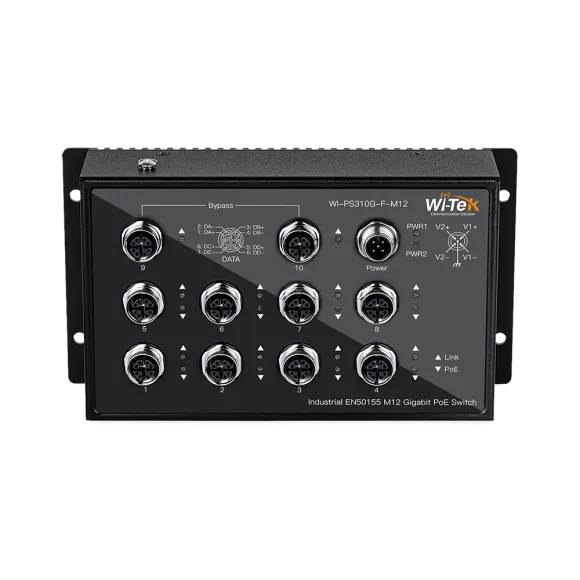

The WI-PS310G-F-M12 supports wall-mounted installation and uses front-access M12 interfaces for space-limited cabinets. It is intended for rail transit, vehicles, trackside, outdoor, and industrial deployments. Keep the operating temperature within -40°C to 75°C and connect the redundant DC power inputs according to the installation design.
