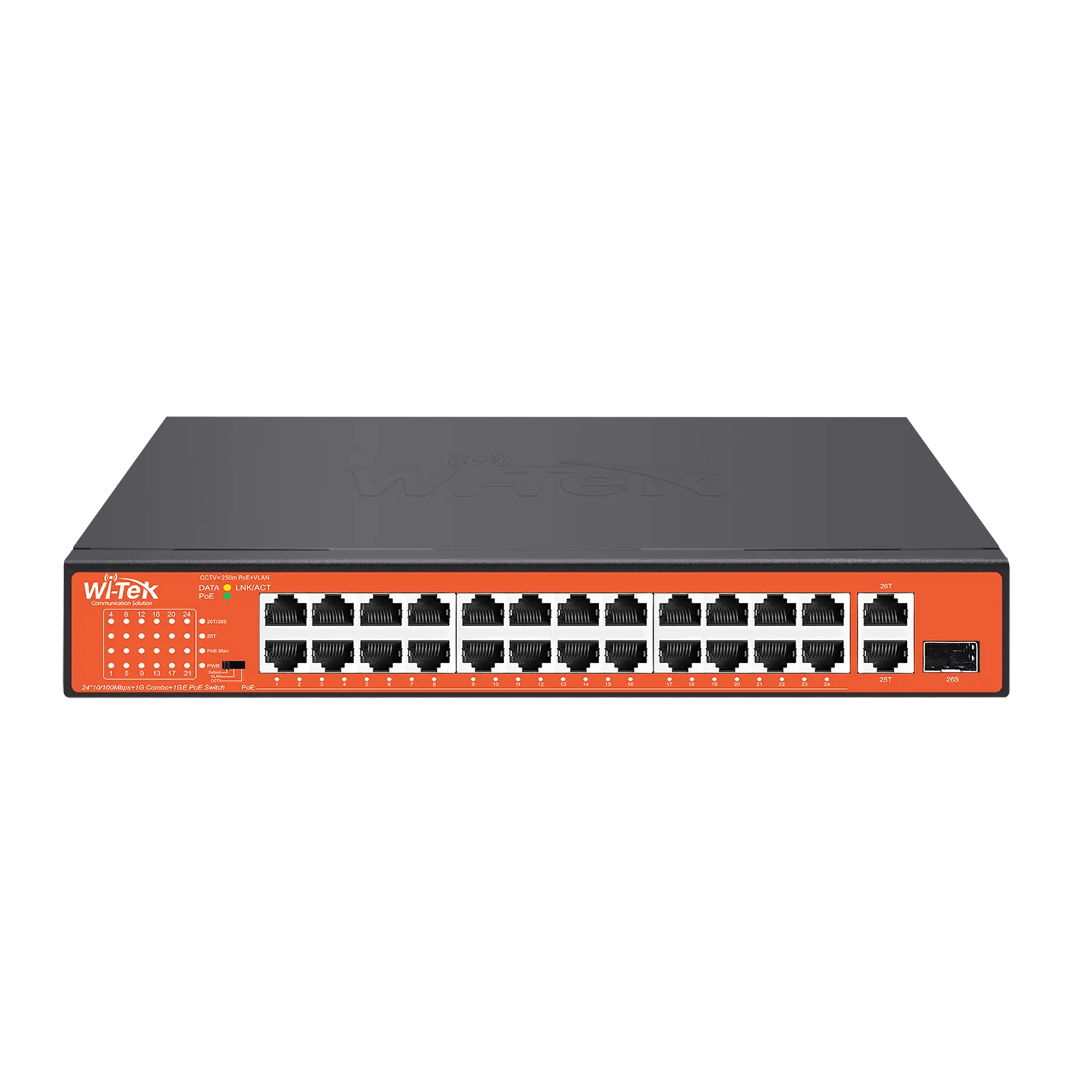

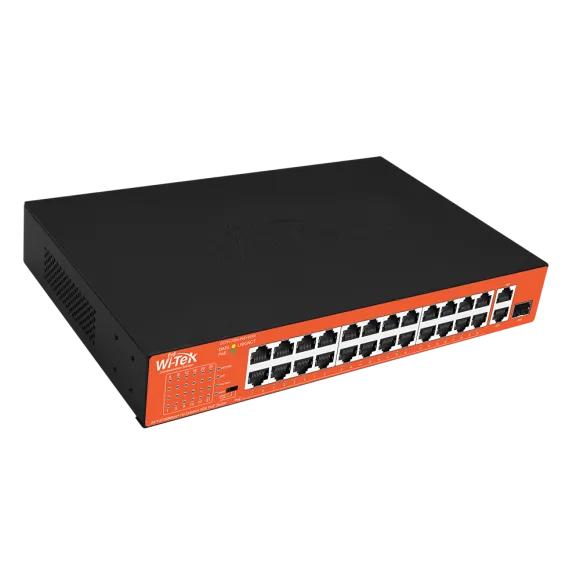

Wi-Tek - WI-PS526G V4 - 100Mbps PoE Unmanaged Switch

Product Overview

This Wi-Tek 100Mbps PoE Unmanaged Switch is designed for CCTV and PoE access deployments that require simple plug-and-play operation, higher PoE port density, Gigabit uplink connectivity, long-distance CCTV mode, and automatic PoE device recovery. It provides sixteen 100Mbps PoE ports, one 1000Mbps RJ45 uplink port, one 1000Mbps combo uplink port, and a total PoE power budget of up to 200W.

Key Configuration

Product Type: 100Mbps PoE Unmanaged Switch | PoE Ports: 24 x 100Mbps | Uplink Ports: 1 x 1000Mbps RJ45 + 1 x 1000Mbps Combo Uplink | PoE Standard: IEEE 802.3af/at | PoE Output: Up to 30W on ports 1-24 | Total PoE Budget: Up to 200W | CCTV Mode: 250m long-distance support and port isolation | Recovery Feature: PoE Watchdog | Setup: Plug and play, no configuration required

Key Features

 · Provides sixteen 100Mbps PoE ports for powered network devices

 · Includes one 1000Mbps RJ45 uplink port for Gigabit network connectivity

 · Includes one 1000Mbps combo uplink port for flexible uplink connection

 · Ports 1-24 support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of up to 200W supports multi-camera PoE deployments

 · CCTV Mode supports up to 250m long-distance transmission

 · Port isolation function helps separate connected devices in CCTV Mode

 · PoE watchdog detects and reboots unresponsive PoE-powered devices

 · Plug-and-play operation requires no configuration

Technical Context

This switch is intended for unmanaged surveillance and PoE access networks where many 100Mbps IP cameras or other powered devices need simple power and data connectivity. The Gigabit RJ45 and combo uplink ports provide higher-speed upstream connectivity to an NVR, router, or core switch.

CCTV Mode extends transmission distance up to 250m and enables port isolation, making the switch useful for camera installations where longer cable runs and basic traffic separation are required.

Installation Notes

This unmanaged PoE switch is suitable for CCTV and PoE access installations requiring quick setup without software configuration. PoE planning should account for the total 200W power budget and the 30W maximum output available on ports 1-24.
