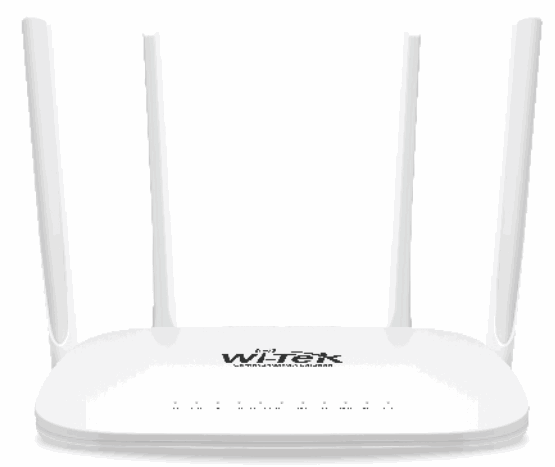

Wi-Tek - WI-R3 - 1200Mbps Dual-Band Wireless Mesh Router

Product Overview

The Wi-Tek WI-R3 is a dual-band wireless networking device designed to provide fast Wi-Fi connectivity, Ethernet access, and PoE output support for IP camera installations. It delivers up to 300 Mbps on 2.4GHz and up to 867 Mbps on 5GHz, supports AP mode by default as well as Router mode, and can provide three PoE outputs for IPC devices when powered by a 52V DC input or 48V PoE input.

Key Configuration

Model: WI-R3 | Product Type: Dual-Band Wireless AP/Router | Ethernet Ports: 4 x 10/100 Mbps | Wireless Standards: IEEE 802.11 ac wave1/n/b/g/a | Bands: 2.4GHz and 5GHz | Signal Rate: 300 Mbps at 2.4GHz, 867 Mbps at 5GHz | PoE Outputs: 3 for IPC | Management: Cloud and web management

Key Features

 · Provides dual-band wireless performance on 2.4GHz and 5GHz

 · Delivers up to 300 Mbps at 2.4GHz and up to 867 Mbps at 5GHz

 · Includes four 10/100 Mbps Ethernet ports for wired device connectivity

 · Supports AP mode by default and Router mode for flexible deployment

 · Provides three PoE outputs for IPC devices with 52V DC input or 48V PoE input

 · Supports 2x2 MIMO spatial streams on both 2.4GHz and 5GHz bands

 · 5dBi antennas help support stable wireless coverage

 · Cloud and web management enable convenient remote configuration and control

Technical Context

The WI-R3 supports IEEE 802.11 ac wave1/n/b/g/a wireless standards and uses 2x2 MIMO on both operating bands to support stronger wireless performance. With up to 20dBm transmit power, it is designed for stable connectivity across mixed wired and wireless network deployments.

Fast roaming support helps maintain seamless wireless connections, while the available PoE outputs make the unit useful for IP camera networks where both data and power need to be delivered from the same installation point.

Installation Notes

The WI-R3 can be deployed in AP mode or Router mode depending on the network design. PoE output for IPC devices requires a 52V DC input or 48V PoE input.
