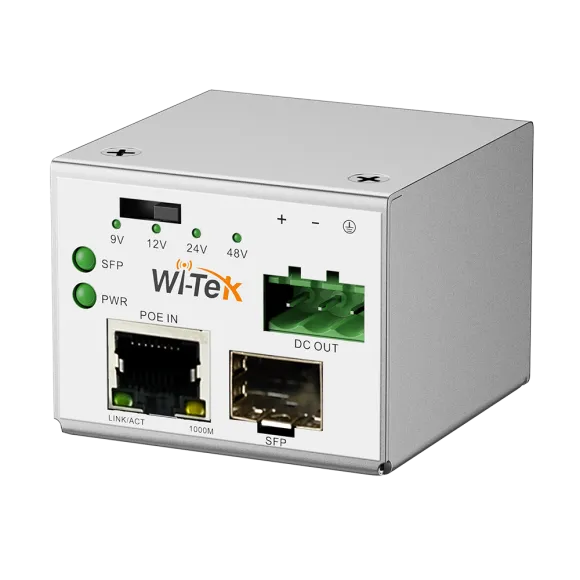

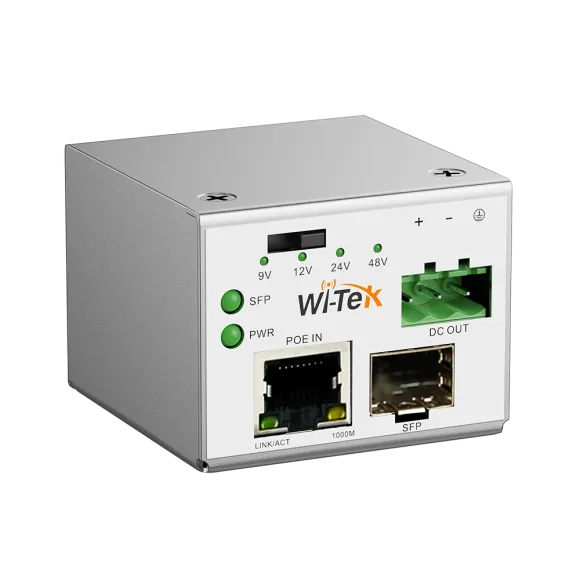

Wi-Tek - WI-RSC302PD - Gigabit PoE to SFP Converter
Part number:
Price:
Highlight Features
● Convert PoE RJ45 to SFP fiber for long-range network transmission
● Supporting IEEE802.3af/at PoE input enables flexible deployment
● Provide DC 9V/12V/24V/48V DC@18W output, makes it easy for terminal devices access
● Plug and play, no any complicated configuration
| General | |
| Model | WI-RSC302PD |
| Interfaces | |
| Fiber Interface | 1 × 100/1000 Mbps SFP slot |
| Copper Interface | 1 × 10/100/1000 Mbps PoE+ IN RJ45 port |
| Power | |
| Power Supply | IEEE 802.3af/at PoE IN |
| DC Output | 9 V/12 V/24 V/48 V DC, 18 W max. output |
| Power Consumption | <2 W without DC output |
| Switch Properties | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Forwarding Mode | Store and Forward |
| MAC Address Table | 2K |
| Switching Capacity | 2 Gbps |
| Packet Forwarding Rate | 2.976 Mpps |

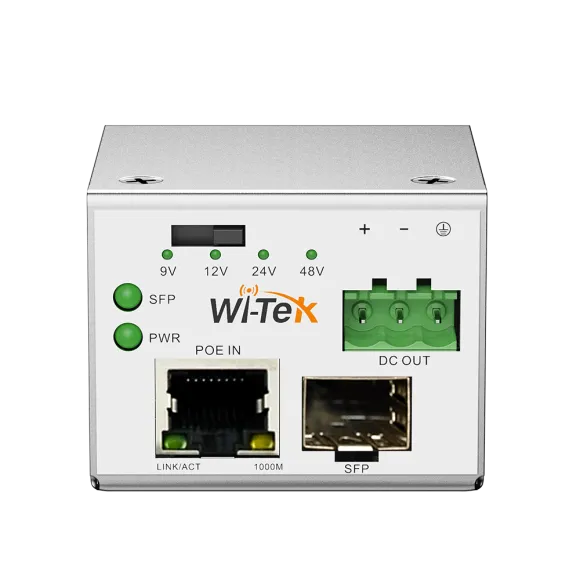

| LED Indicators | |
| 1000M | Steady on: copper port operating at 1000 Mbps |
| SFP | Steady on: fiber port linked up Blinking: fiber port actively sending or receiving data Off: fiber port linked down |
| Link/ACT | Steady on: copper port linked up Blinking: copper port actively sending or receiving data Off: copper port linked down |
| PWR | Steady on: device is powered on Off: device is powered down |
| DC Voltage Indicators | 9V: DC output voltage is 9 V 12V: DC output voltage is 12 V 24V: DC output voltage is 24 V 48V: DC output voltage is 48 V |
| Physical Characteristics | |
| Dimensions | 103 × 37 × 30 mm |
| Weight | 85 g |
| Package Dimensions | 106 × 39 × 32 mm |
| Package Weight | 100 g |

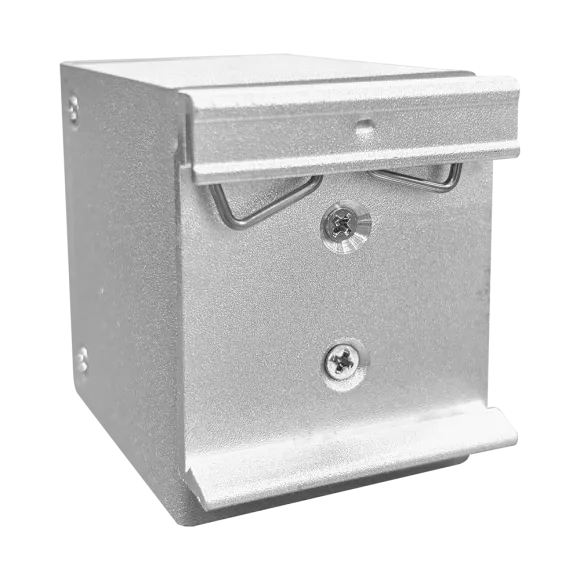

| Installation | DIN-rail, desktop |
| Fan Quantity | Fanless |
| Material | Metal shell |
| Color | Silver |
| Reliability | |
| Operating Environment | -40°C to 65°C (-4°F to 140°F); 10%–90% RH, non-condensing |
| Storage Environment | -40°C to 75°C (-4°F to 140°F); 5%–95% RH, non-condensing |
| Certifications | |
| Certifications | FCC, RoHS, UKCA, RCM |
