Wi-Tek - WI-SFP20L-2.5G-20KM-I - Industrial SFP Module

Product Overview

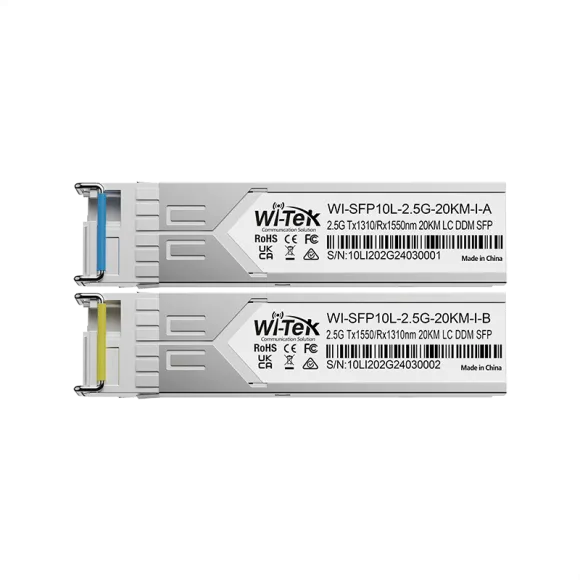

WI-SFP10L-2.5G-20KM-I is an industrial 2.5 Gbps SFP optical transceiver designed to extend network connections over single-mode fiber up to 20 km. It uses a simplex LC connector, supports bidirectional wavelength options, and includes Digital Diagnostic Monitoring for operation in harsh environments from -40°C to 85°C.

Key Configuration

Model: WI-SFP10L-2.5G-20KM-I | Data Rate: 2.5 Gbps | Maximum Cable Length: 20 km | Fiber: Single-mode | Connector: Simplex LC | Wavelength Options: A Tx1310/Rx1550 nm, B Tx1550/Rx1310 nm | Power Supply: 3.3 V

Key Features

• · Supports 2.5 Gbps data transmission
• · Extends single-mode fiber links up to 20 km
• · Uses a simplex LC optical connector
• · Supports wavelength option A: Tx1310 nm/Rx1550 nm
• · Supports wavelength option B: Tx1550 nm/Rx1310 nm
• · Uses a DFB transmitter and PIN/TIA receiver
• · Provides transmitter power of -6 to 0 dBm and receiver sensitivity below -22 dBm
• · Supports Digital Diagnostic Monitoring (DDM)
• · Uses a 3.3 V power supply with consumption up to 1 W
• · Supports operation from -40°C to 85°C with 10%-90% non-condensing humidity

Technical Context

The simplex transceiver uses bidirectional wavelength options to transmit and receive over a single optical fiber, simplifying cabling for long-distance links. Its 2.5 Gbps capacity, 20 km reach, and DDM support provide high-speed fiber connectivity with monitoring of key operating parameters in compatible SFP equipment.

Installation Notes

Insert the module into a compatible SFP slot and connect the simplex LC fiber to the matching optical module at the remote end. Select matching A/B wavelength versions for the link and use single-mode fiber. The module is hot-pluggable and supports plug-and-play operation without additional configuration.
