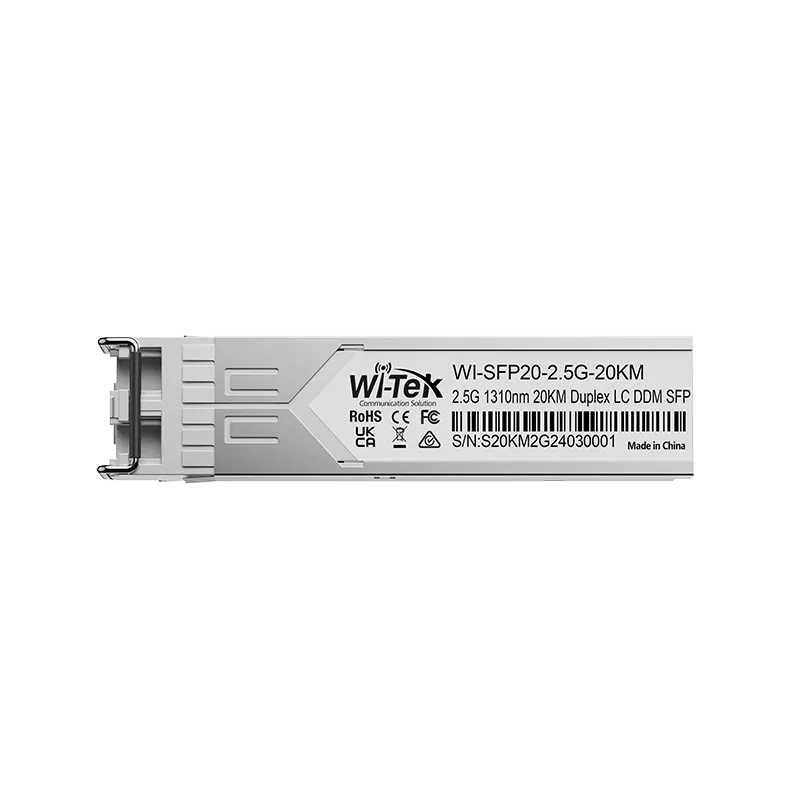

Wi-Tek - WI-SFP20-2.5G-20KM - Commercial SFP Module

Product Overview

WI-SFP20-2.5G-20KM is a 2.5 Gbps SFP optical transceiver designed to extend network connections over single-mode fiber. It uses a duplex LC connector, operates at 1310 nm, and supports transmission distances up to 20 km with Digital Diagnostic Monitoring.

Key Configuration

Model: WI-SFP20-2.5G-20KM | Data Rate: 2.5 Gbps | Maximum Cable Length: 20 km | Fiber: Single-mode, duplex | Connector: Duplex LC | Wavelength: 1310 nm | Power Supply: 3.3 V

Key Features

• · Supports 2.5 Gbps data transmission
• · Extends single-mode fiber links up to 20 km
• · Uses a duplex LC optical connector
• · Operates at a 1310 nm wavelength
• · Supports Digital Diagnostic Monitoring (DDM)
• · Uses a 3.3 V power supply
• · Complies with SFP MSA requirements
• · Supports IEEE 802.3Z Gigabit Ethernet interoperability
• · Consumes up to 1 W of power
• · Supports operation from 0°C to 70°C with 10%-90% non-condensing humidity

Technical Context

The transceiver converts electrical network data into optical signals for transmission over duplex single-mode fiber and converts received optical signals back to electrical data. Its 1310 nm wavelength, 20 km reach, and DDM support enable long-distance fiber connectivity with monitoring of key optical operating parameters in compatible SFP equipment.

Installation Notes

Insert the module into a compatible SFP slot and connect the duplex LC fiber pair to the corresponding optical link. Use single-mode fiber and ensure that the remote transceiver or module is compatible with the 2.5 Gbps, 1310 nm, 20 km optical specification.
