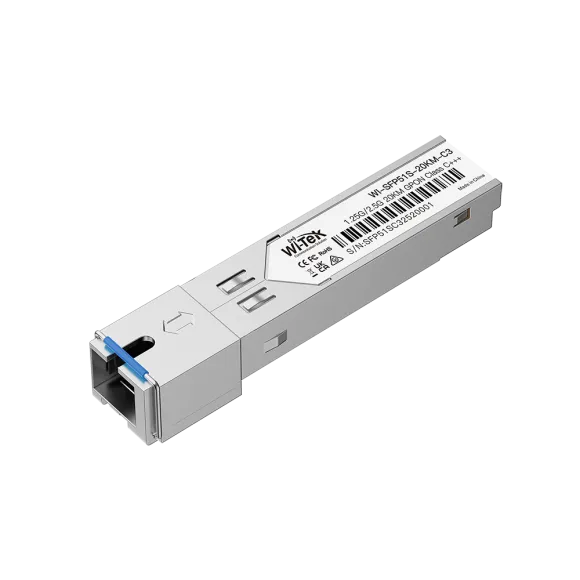

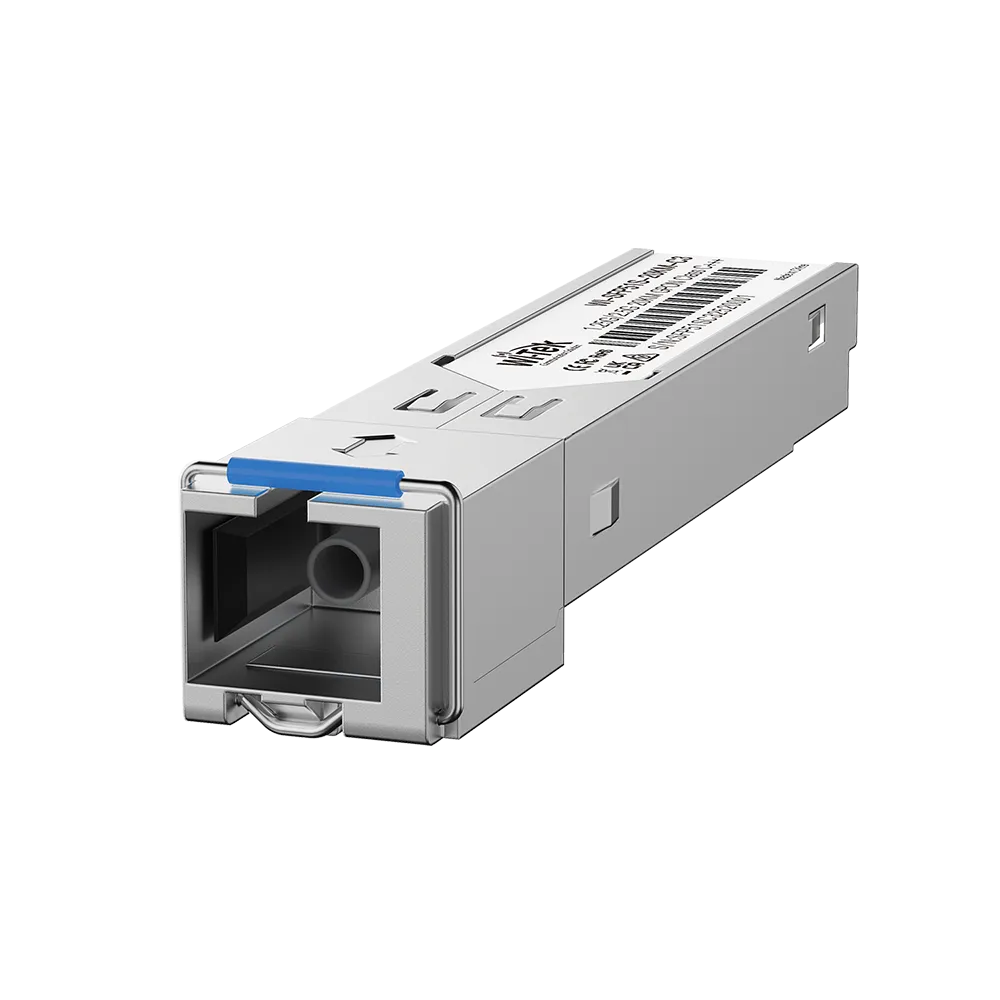

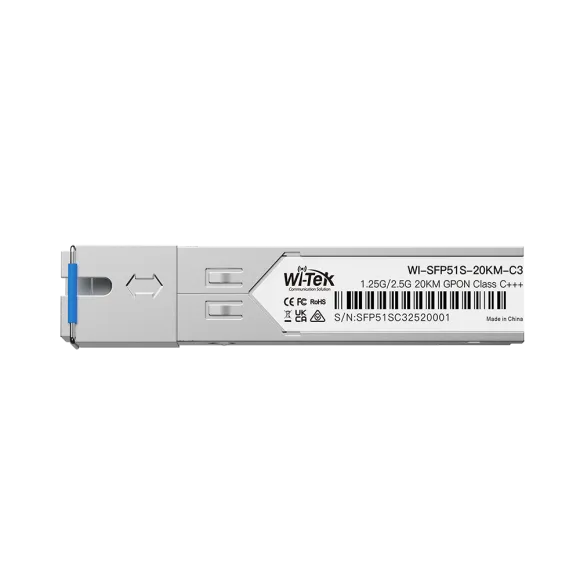

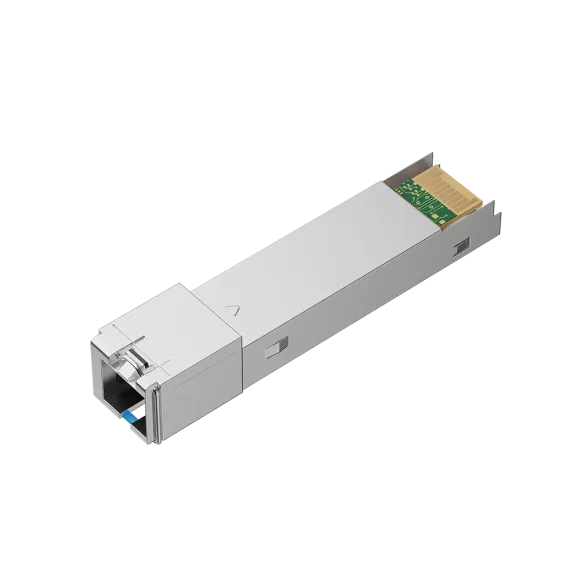

Wi-Tek - WI-SFP51S-20KM-C3 - 1.25G/2.5G GPON SFP Module Class C+++
Wi-Tek - WI-SFP51S-20KM-C3 - 1.25G/2.5G GPON SFP Module Class C+++
Wi-Tek - WI-SFP51S-20KM-C3 - 1.25G/2.5G GPON SFP Module Class C+++
Wi-Tek - WI-SFP51S-20KM-C3 - 1.25G/2.5G GPON SFP Module Class C+++
Wi-Tek - WI-SFP51S-20KM-C3 - 1.25G/2.5G GPON SFP Module Class C+++
Wi-Tek - WI-SFP51S-20KM-C3 - 1.25G/2.5G GPON SFP Module Class C+++ Wi-Tek - WI-SFP51S-20KM-C3 - 1.25G/2.5G GPON SFP Module Class C+++ Wi-Tek - WI-SFP51S-20KM-C3 - 1.25G/2.5G GPON SFP Module Class C+++ Wi-Tek - WI-SFP51S-20KM-C3 - 1.25G/2.5G GPON SFP Module Class C+++

Wi-Tek - WI-SFP51S-20KM-C3 - 1.25G/2.5G GPON SFP Module Class C+++

Part number:
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Highlight Features

 ● SFP with SC/PC Connector Transceiver
 ● 1490nm DFB TX with isolator and 1310nm APD RX
 ● Transmission Rate of up to 2.5Gbps-TX/1.25Gbps-RX
 ● Max Transmission Distance of up to 20km
 ● Plug and Play, Zero Configuration
 ● Hot Pluggable
 ● DDM for Strong Diagnostic Capabilities
 ● RX Fast Burst Mode Detection
 ● Compliant with ITU-T G.984.2, and RoHS
 ● 0~70°C Operation Temperature

ModelWI-SFP51S-20KM-C3
Hardware VersionV1
Form FactorSFP
Max Transmission Distance20km
MediaSMF
Transmitter TypeDFB
Receiver TypeAPD
Tx Power7~9dBm
Wavelength1490nm-TX / 1310nm-RX
Data Rate2.488G-TX / 1.244G-RX
ConnectorSC/UPC
ClassC+++
Power Consumption<1.6W
Extinction Ratio<9dB
ApplicationOLT GPON
CertificationRoHS
Max Link Budget39dB
Receiver Overload>-12dBm
Receiver Sensitivity<-32dBm
ProtocolsITU-T G.984.2
DDMSupported
Operating Temperature0~70°C
Name
Description
Size
Downloads
File
Datasheet
2mb
