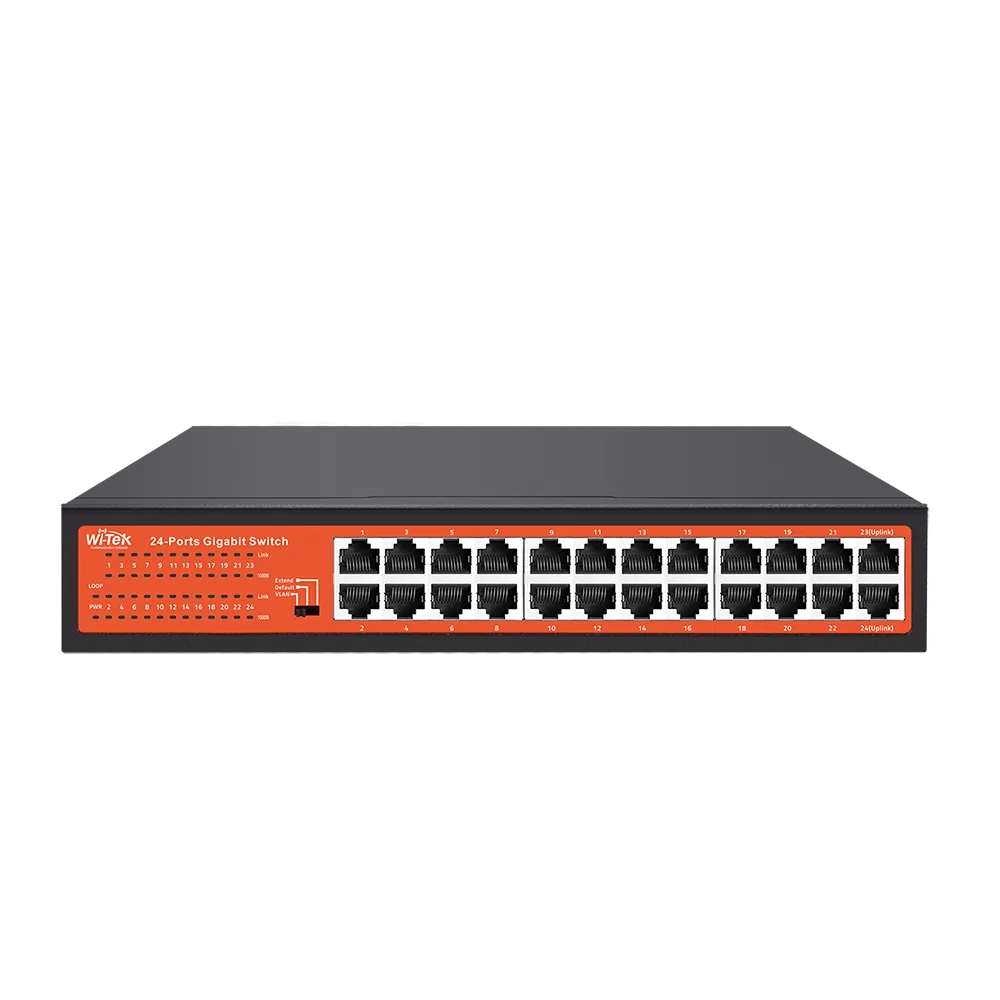

Wi-Tek - WI-SG124D V2 - 1000Mbps Ethernet Unmanaged Switch
Part number:
Price:
Highlight Features
● 22*1000Mbps RJ45 Ethernet ports, 2*1000Mbps RJ45 Uplink ports
● Plug and play, zero configuration
● Supports desktop or rack mount replacement
● Smart DIP Switch: Port VLAN mode,Extend mode
● Silent operation ideal for noise sensitive environment
| Model | WI-SG124D |
| Hardware Version | V2 |
| Interfaces | |
| Downlink Ports | 22 × 10/100/1000Mbps RJ45 Ports |
| Uplink Ports | 2 × 10/100/1000Mbps RJ45 Ports |
| Switch Properties | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.71Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4Mbit |
| Jumbo Frame | 4kB |
| Power Supply | |
| Input Power | AC 100-240V, 50/60Hz |
| Physical Characteristics | |
| LED Indicators | PWR (Green): On: The device is powered on normally Off: The device is powered off or has failed LOOP (Red): On: Loop alarm Off: No loop in the network Link (Green): On: 10/100Mbps link established Blinking: Data transmission at 10/100Mbps Off: No link established 1000M (Green): On: 1000Mbps link established Blinking: Data transmission at 1000Mbps Off: Negotiated speed is 10/100Mbps |
| DIP Switch Modes | Default: Up to 100m transmission at 1000Mbps; VLAN and Extend modes disabled VLAN: Isolates all downlink ports while allowing communication with uplink ports Extend: Extends transmission distance up to 250m at 10Mbps |
| Fan Quantity | Fanless |
| Switch Dimensions | 270 × 181 × 44mm |
| Package Dimensions | 312 × 262 × 84mm |
| Weight | Net Weight: 1.18kg Package Weight: 1.74kg |
| Installation | Rack-Mounted, Desktop |
| Reliability | |
| Surge Immunity | IEC 61000-4-5 Common Mode: 4kV Differential Mode: 2kV |
| ESD Protection | IEC 61000-4-2 Contact Discharge: 6kV Air Discharge: 8kV |
| Environmental | |
| Operating Temperature | -10℃ to 50℃ (14℉ to 122℉) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity | 5% to 95% RH, non-condensing |
| Certification | |
| Certification | CE, FCC, RoHS, UKCA, RCM |
