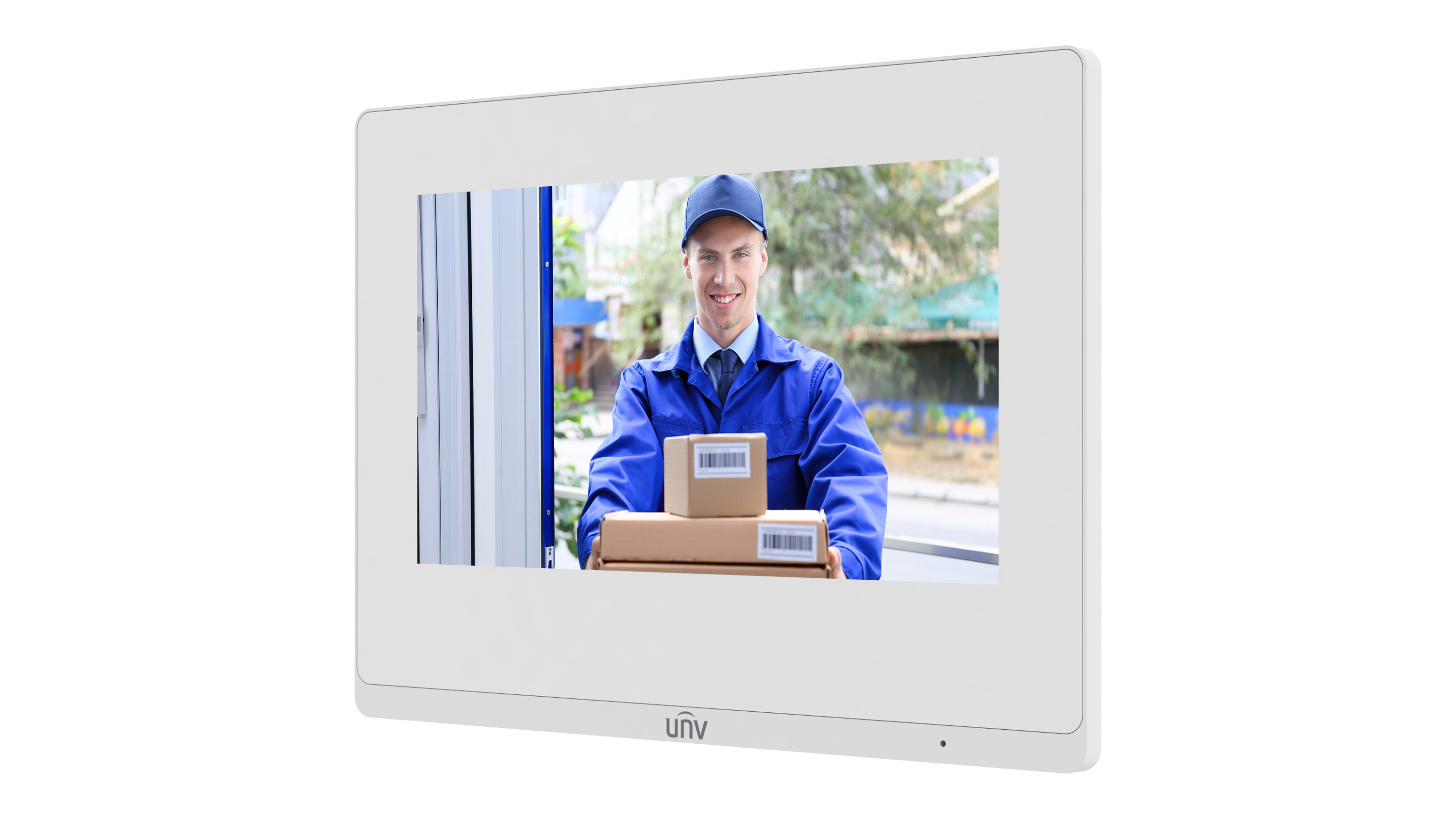

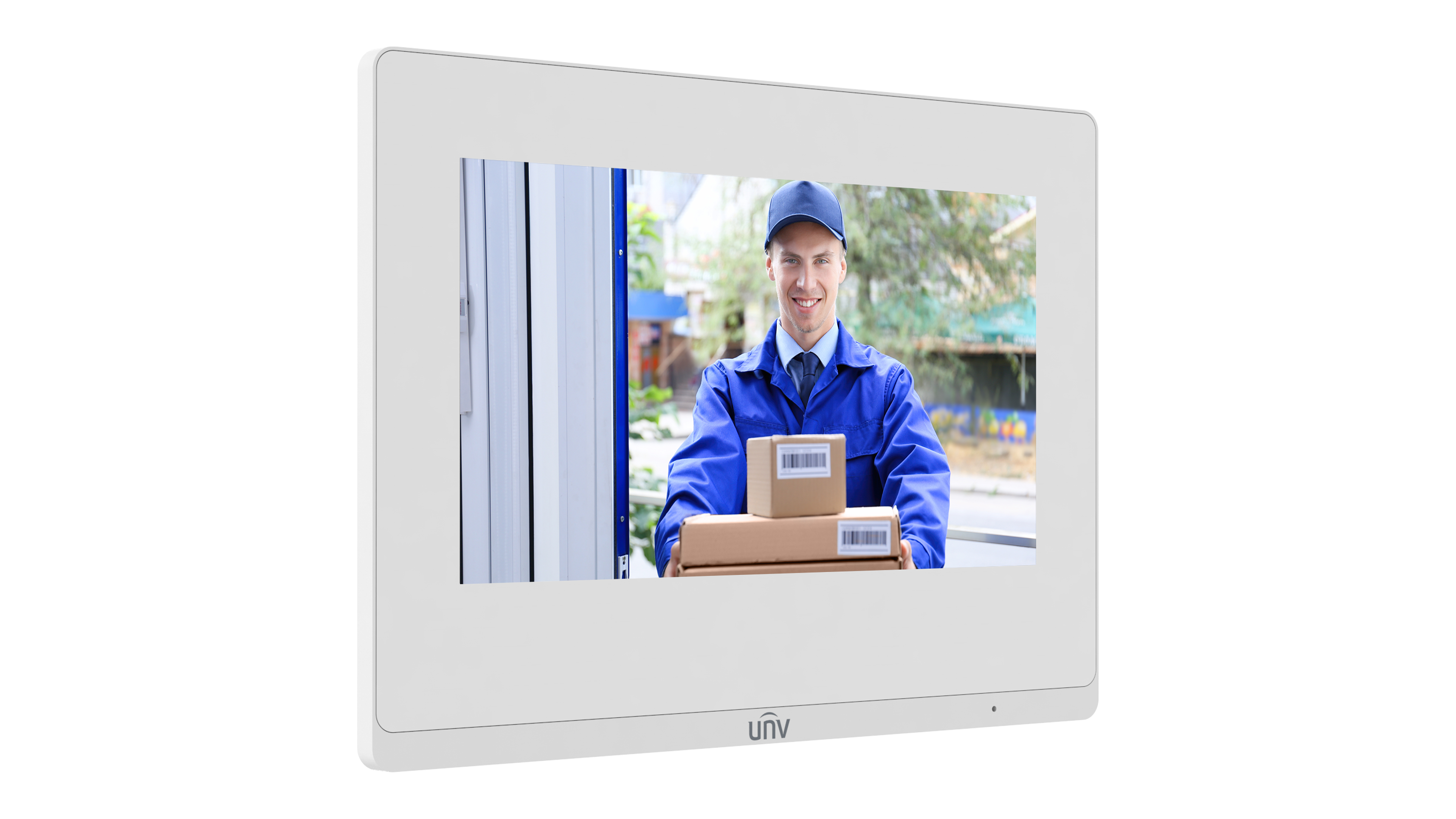

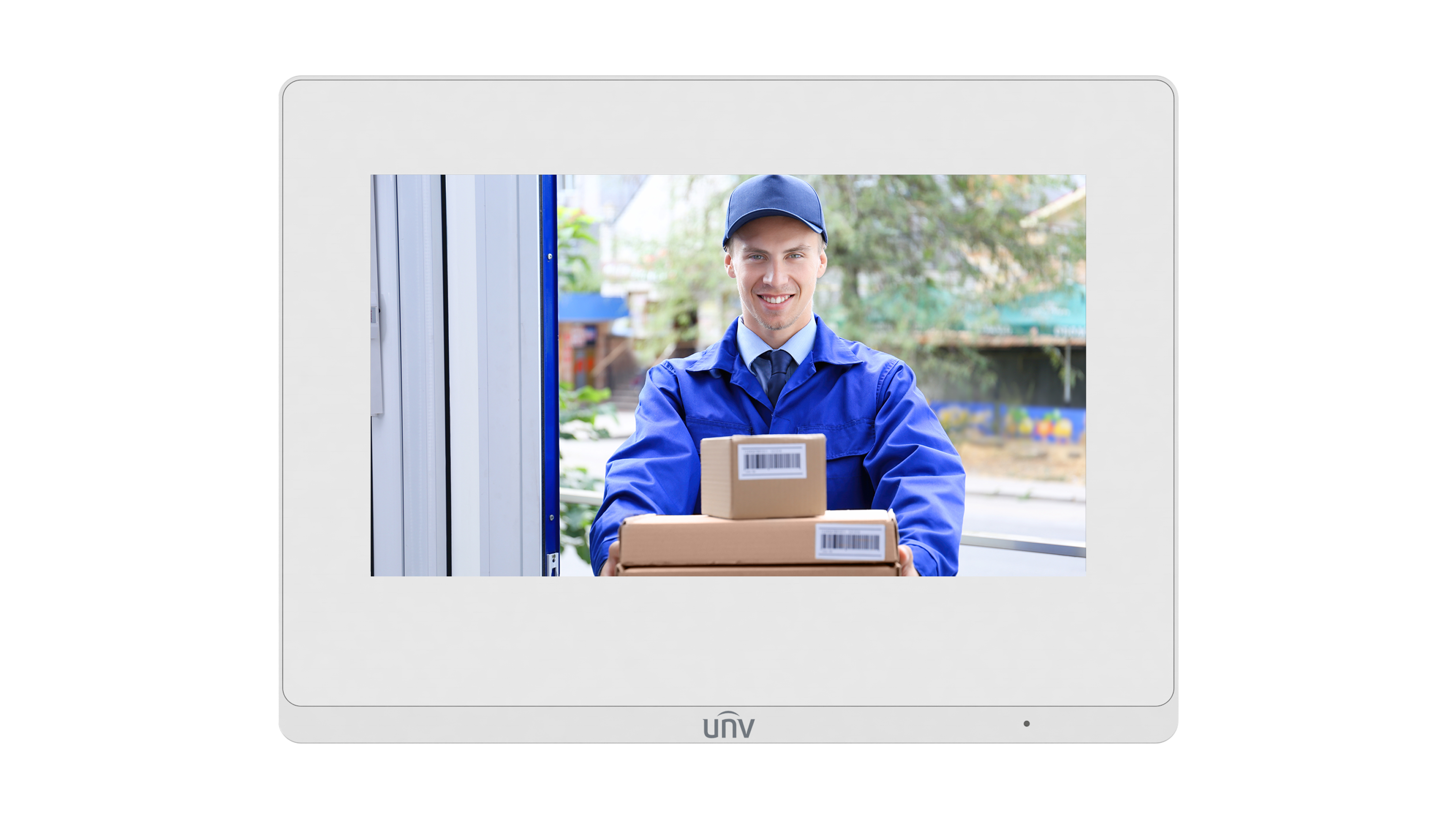

Uniview - OEI-372S-H-W-Z - "Wall Mounted 7-inch Indoor Station (Open wire installation)"
Part number:
OEI-372S-H-W-Z
Price:
Wall Mounted 7-Inch Indoor Station(White,WiFi)
Features:
- Durable ABS casing with a glass panel.
- 1024×600 HD touchscreen display.
- Batch configuration and transfer.
- Remote and one-touch unlocking of linked door stations.
- Network camera monitoring and security alarm.
| OEI-372S-H-W-Z | |
| Hardware Specification | |
| Power Supply | DC12V±25%,IEEE802.3af, Standard PoE |
| Power Consumption | ＜10W |
| Screen | 7-inch ultra-thin TFT LCD screen |
| Screen Resolution | 1024×600 |
| Operation System | Linux |
| Audio Quality | Noise suppression,echo cancellation and AGC |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in speaker |
| Audio Compression Standard | MP3 G711 |
| Audio Compression Bitrate | 128Kbps |
| Interface | Power*1, network*1, WiFi*1,RS485*1, IO output*2, IO input*8, TF card slot*1 |
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply,WIFI4、2.4GHZ |
| Weight | 360g |
| Dimensions (L x W x H) | 193mm×143mm×25mm |
| Operating Environment | -10°C to +55°C, 10% to 90%, non-condensing, indoor |
| Basic Business | |
| Protocol | UNV private protocol |
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
| Specification Index | |
| Capacity | 200 ScreenShots 200 Zone Alarms A total of 20 connected devices, including IPCs, entrance stations, NVRs (up to 2), and Doorbells |
| Linked Indoor Station Capacity | 19 extensions |
