TRENDNET - TEW-940APBO - 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point
TRENDNET - TEW-940APBO - 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point
Part number:
TEW-940APBO
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

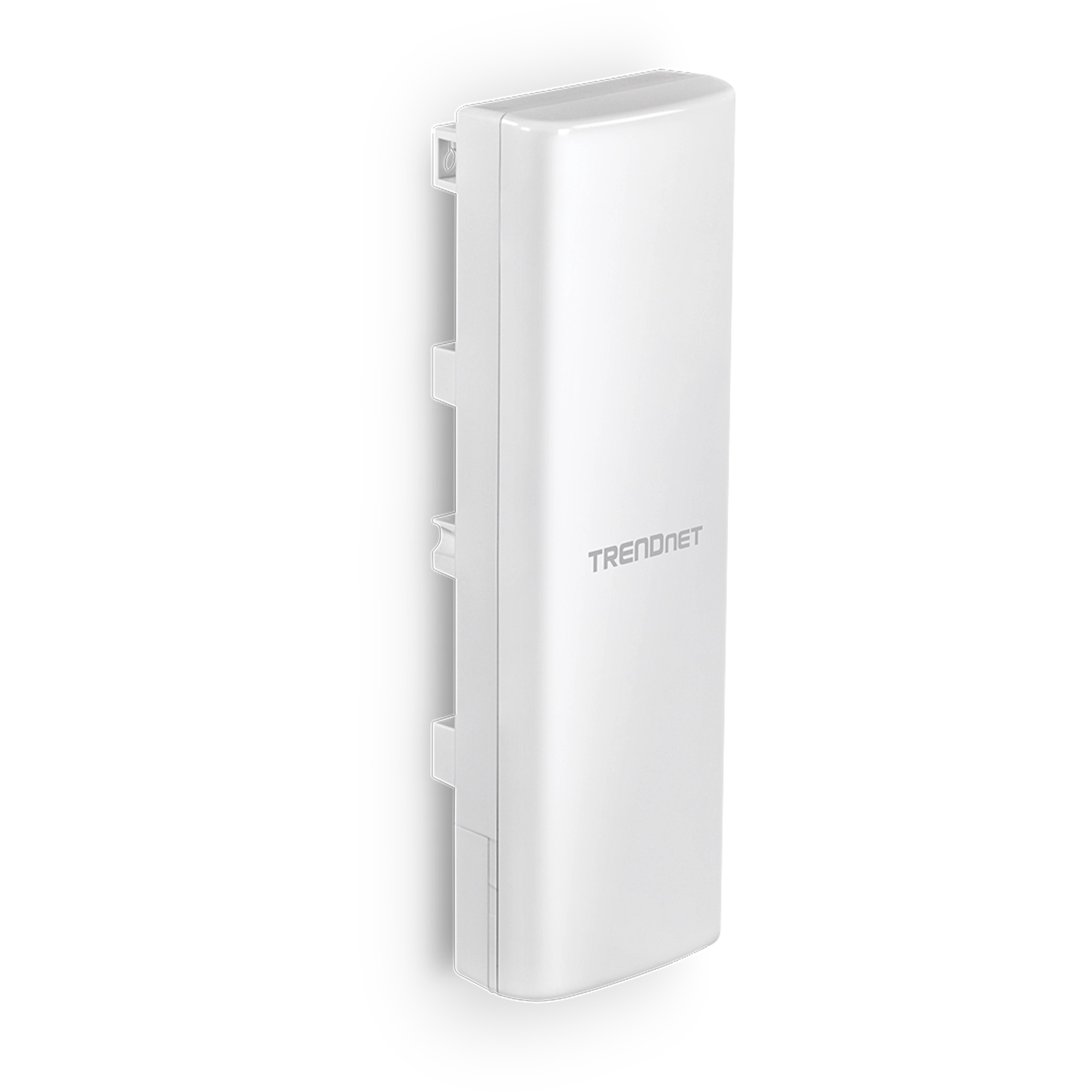

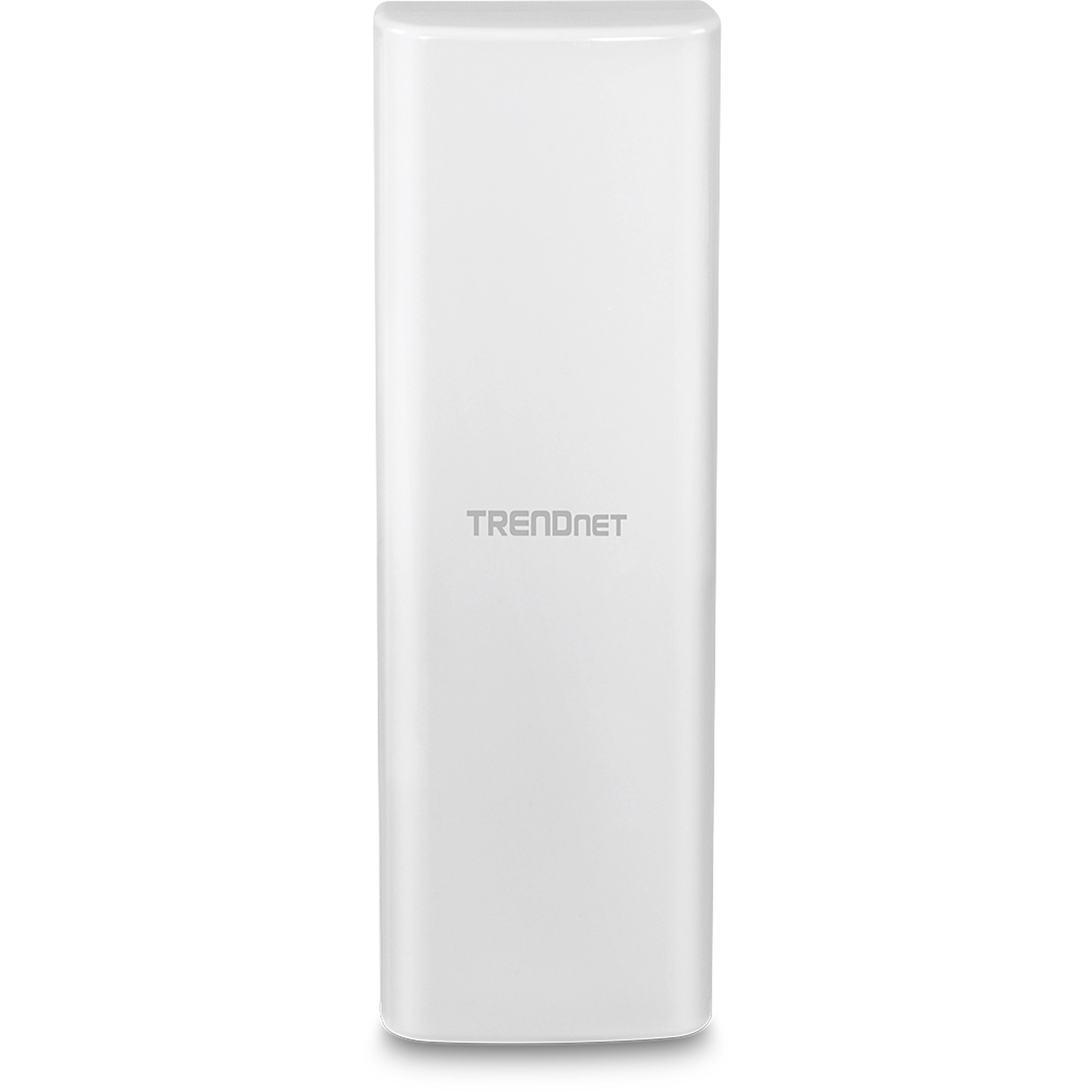

TRENDnet’s 14 dBi WiFi 6 AX1200 Outdoor Directional PoE Access Point, model TEW-940APBO, is designed for point-to-point WiFi bridging applications. The 5GHz outdoor wireless access point supports wireless point-to-point installation scenarios with Access Point, Client Bridge, and Repeater modes. The IP55 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware. Faster speeds are possible on this WiFi 6 access point with OFDMA and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the outdoor wireless access point when multiple devices access the network.



Features:

  • 5GHz WiFi 6 AX1200 point-to-point bridge
  • 1 x Gigabit PoE (in) port, and 1 x Gigabit port
  • 14 dBi directional antenna
  • Supports Access Point, Client Bridge, and Repeater modes
  • IP55 outdoor weather rated housing
  • Proprietary PoE power adapter included
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1d
  • IEEE 802.1Q
  • IEEE 802.1X
  • IEEE 802.11a
  • IEEE 802.11k
  • IEEE 802.11n (5GHz: up to 300Mbps)*
  • IEEE 802.11ac (5GHz: up to 867Mbps)*
  • IEEE 802.11ax (5GHz: up to 1201Mbps)*

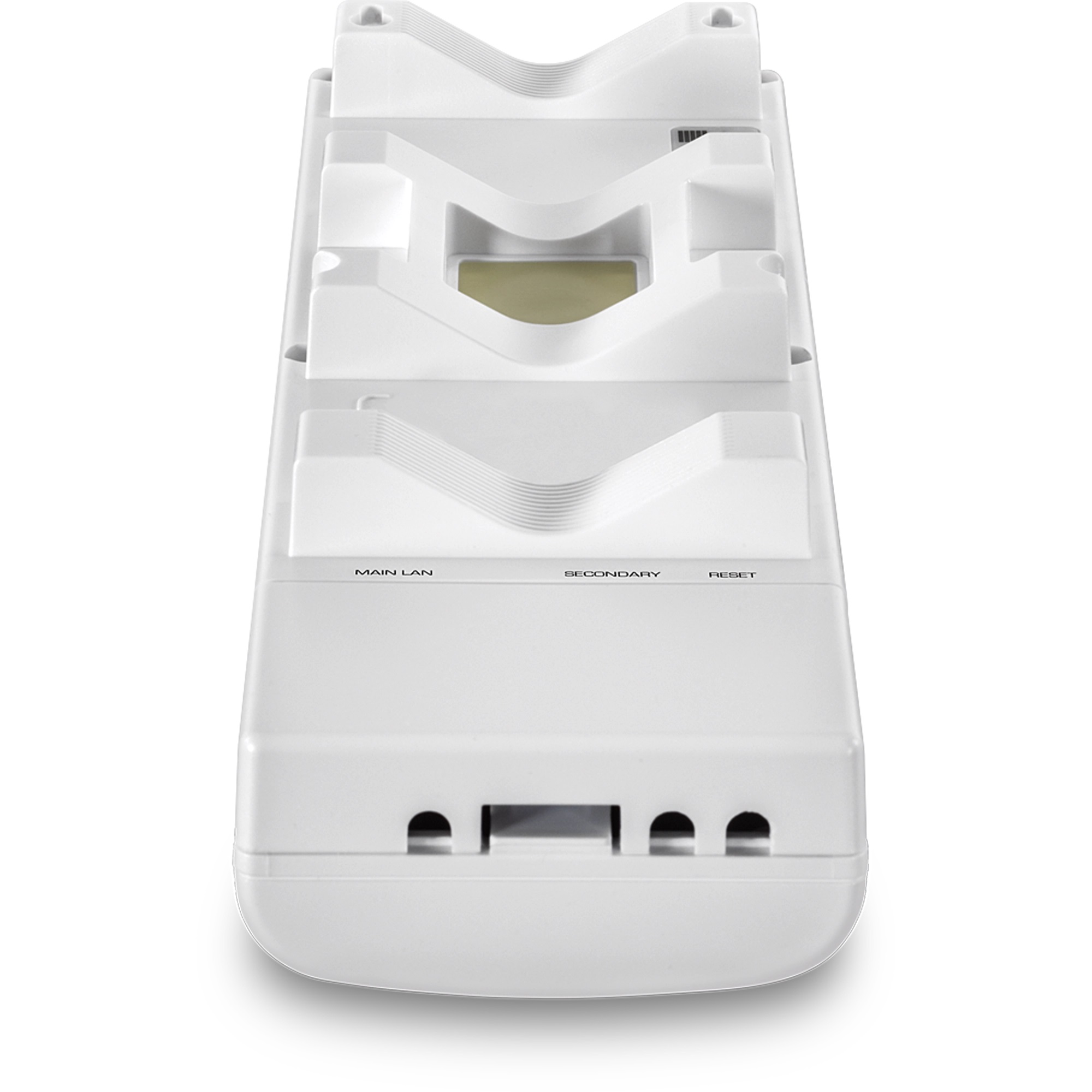

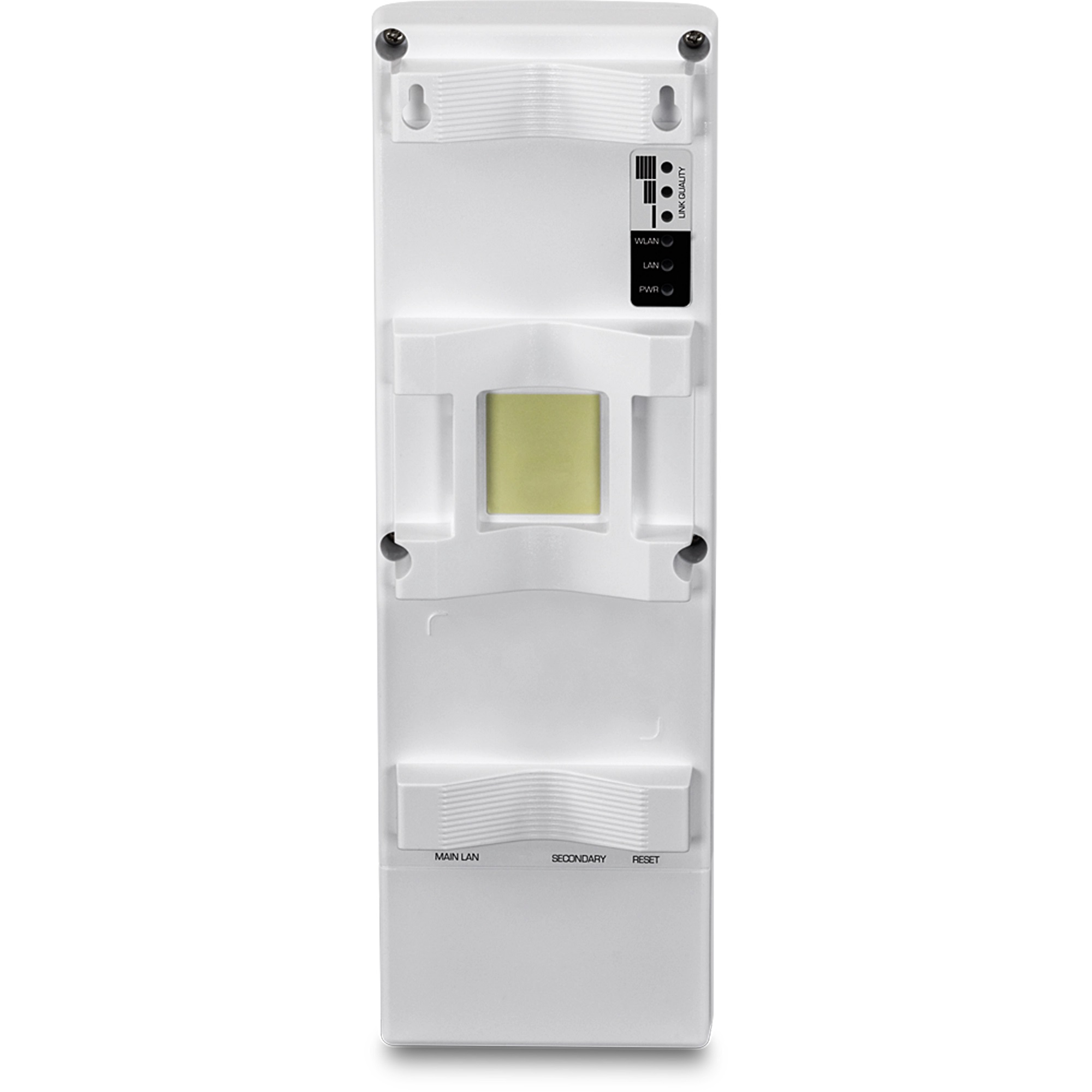

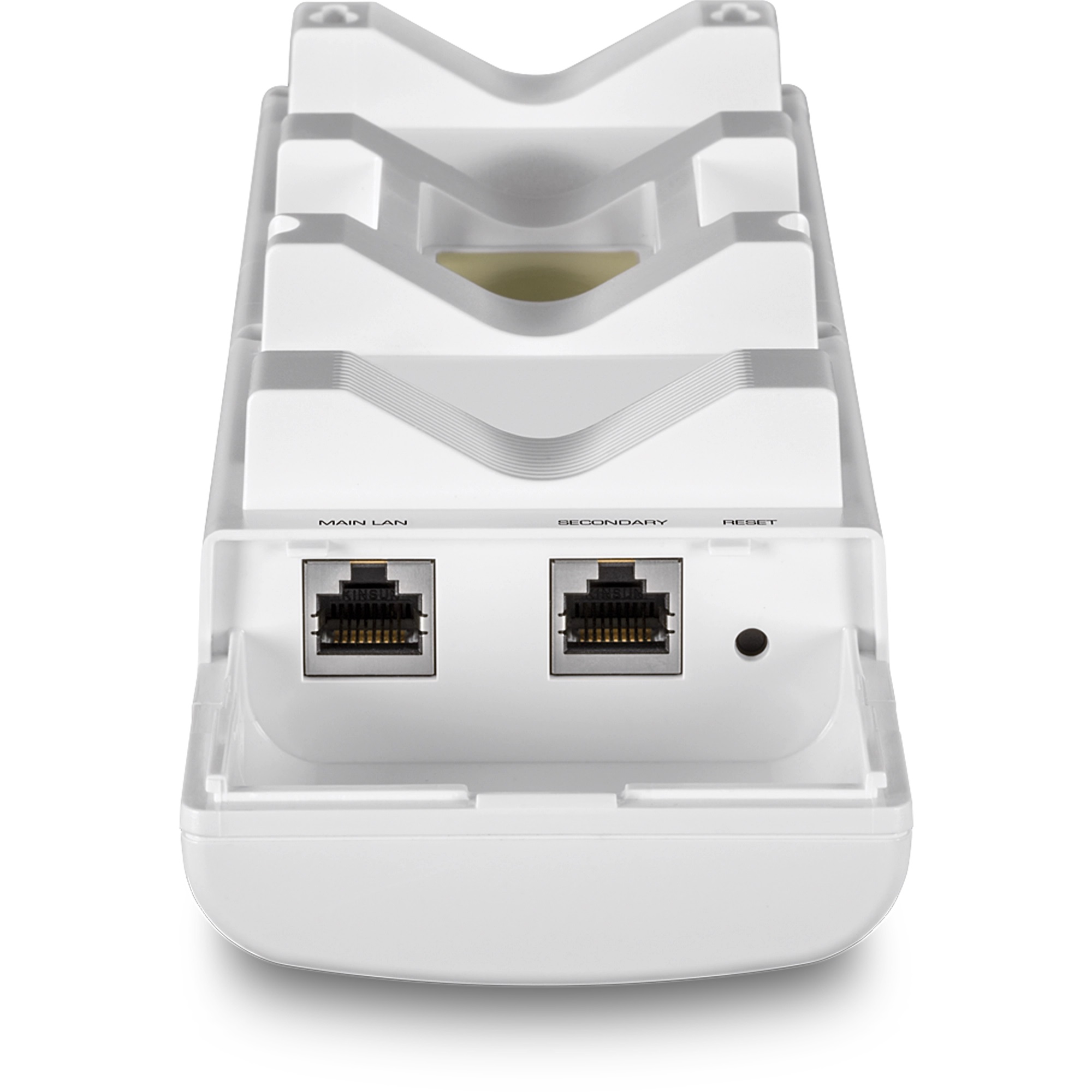

Hardware Interface
  • 1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.))
  • 1 x Gigabit LAN port
  • LED indicators
  • Reset button
Features
  • 802.11ax WiFi 6 support
  • IP55 rated housing
  • MU-MIMO
  • Band steering
  • Airtime fairness
  • 802.1Q VLAN assignment per SSID
  • IPv6 support
  • LEDs on/off
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
  • LLDP
  • Bonjour/UPnP
Operation Modes
  • Access Point
  • Client Bridge
  • Repeater
Management/Monitoring
  • Web based management (HTTP/HTTPS)
  • Command Line Interface (SSH)
  • SNMP v2c/v3
  • Spanning Tree Protocol (STP)
  • Event logging
  • Ping test
  • Traceroute
  • Performance throughput test
  • Schedule WiFi radio enable/disable
  • Ping watchdog/gateway connection monitor
  • Reboot & scheduled automatic reboot
  • Channel utilization scan/AP detection
Access Control
  • Wireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/WPA3-RADIUS (Enterprise), WPA-PSK/WPA2-PSK/WPA3-SAE (Personal)
  • MAC filter (max entries: 32)
  • Maximum client limit
  • Client isolation/separate stations
QoS
  • WMM
  • Bandwidth control per SSID
SSID
  • Up to 8 SSIDs
Frequency
  • 5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz
Wireless Channels
  • 5 GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165
Modulation
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA
Antenna Gain
  • 14 dBi internal directional patch antenna
Distance
  • Up to 1km**
Wireless Output Power
  • 802.11a: 23 dBm (max.)
  • 802.11n: 22 dBm (max.)
  • 802.11ac: 22 dBm (max.)
  • 802.11ax: 22 dBm (max.)
Receiving Sensitivity (per chain)
  • 802.11a: -71 dBm (typical) @ 54Mbps
  • 802.11n: -66 dBm (typical) @ 300Mbps
  • 802.11ac: -55 dBm (typical) @ 867Mbps
  • 802.11ax: -54 dBm (typical) @ 1201Mbps
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 54V DC, 0.6A proprietary/passive PoE injector
  • Max. Consumption: 10.1W
Operating Temperature
  • -20° – 60° C (-4° – 140° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
Dimensions
  • 82 x 257 x 50mm (7.3 x 3.9 x 1.4 in.)
Weight
  • 598g (21.09 oz.)
Warranty
  • 3 year

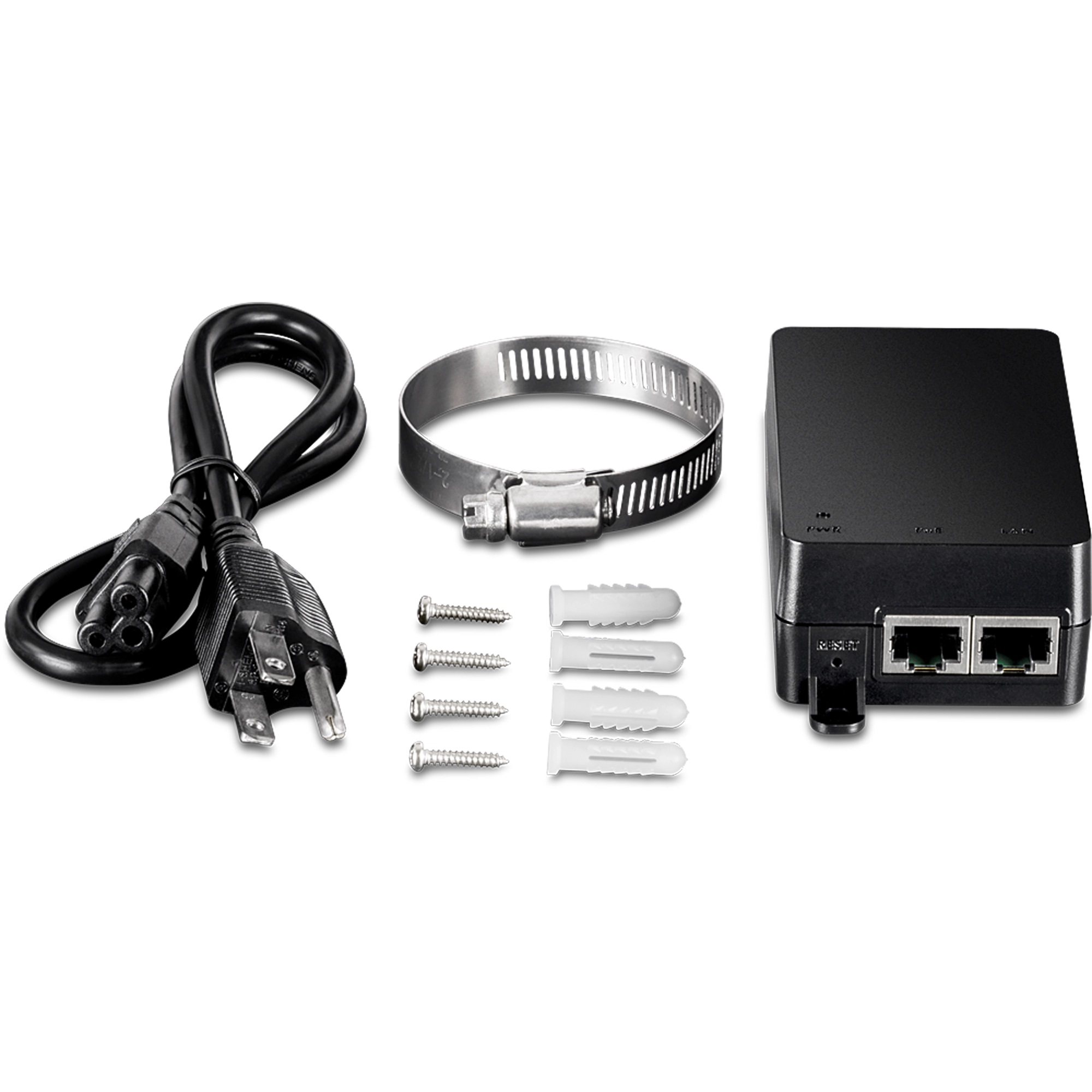

PACKAGE CONTENTS

  • TEW-940APBO
  • Quick Installation Guide
  • Proprietary/Passive PoE injector (54V DC, 0.6A)
  • Mounting hardware
