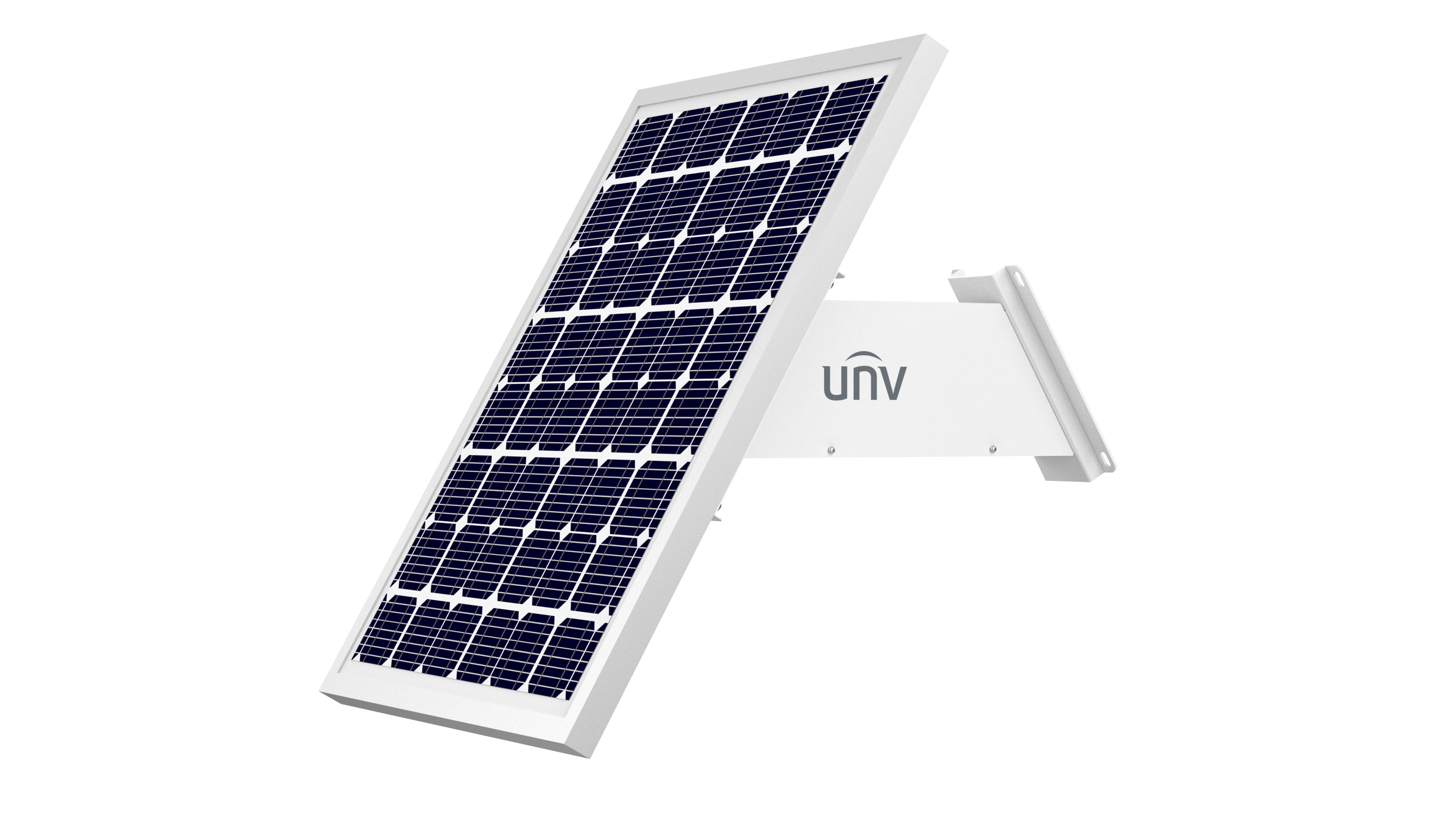

160Wh/60W Solar Power System(Heating,Operation)
Features:
• Modular design for easy battery assembly, hanging design for easy solar panel installation.
• Built in high safety, high reliability, and long life lithium battery cell is suitable for a wide range of application scenarios.
• Built in self developed high efficiency solar controller realizes faster charging.
• Visual status indicator allows for easy understanding of the product’s operating status.
• Multiple protection functions such as high and low battery temperature protection, overcharge protection, undervoltage protection, etc.
• Metal casing, windproof and rainproof, capable of withstanding harsh outdoor environments.
• Built in heating module can be turned on in a low temperature environment, effectively protecting the battery life and ensuring the safety of charging.
• Back surface field and electrodes are made of high quality metal pastes, ensuring good conductivity.
• High efficiency monocrystalline silicon cell with high photoelectronic conversion efficiency.
• High transmittance tempered glass and UV resistant EVA backsheet materials further improve the conversion efficiency of photovoltaic modules.
• Anodized aluminum alloy frame improves the corrosion resistance and ensures that the components can withstand harsh outdoor environments.
• Allows to overlay the battery percentage OSD on the camera’s live video.
• Allows to be used with 4G cameras for surveillance applications in scenarios without power and network.
Lithium Battery | |
Battery capacity | 50 Ah |
Rated energy | 160 Wh |
Limited charge voltage | 7 V |
Output voltage | 9 V to 12.6 V |
Maximum output current | 2 A |
Input interface type | 4-pin quick connector (for battery switch) |
Output interface type | DC 12 V circular connector |
RS485 | Support |
Dimensions | 419.2 × 118 × 336.5 mm |
Protection function | High/low temperature protection, overcharge protection, undervoltage protection |
Solar Panel | |
Peak power | 60 W |
Operating voltage | 4.5 V |
Operating current | 13.33 A |
Open circuit voltage | 5.4 V |
Short circuit current | 14.66 A |
Cell conversion efficiency | ≥ 22% |
Output interface type | 4-pin quick connector (for battery switch) |
Dimensions | 765 × 395 × 25 mm |
Operation and Maintenance Module | |
Open circuit voltage | 12 V |
Typical power consumption | 0.84 W |
Maximum power consumption | 2 W |
Input interface type | DC 12 V circular connector |
RS485 | Support |
Reset button | Support |
Indicator | Blinking green: Normal operation; Steady red: Network error |
Dimensions | 90 × 90 × 38.3 mm |
Ingress protection | IPX5 |
Accessory | One-to-two power cable |
Specification | |
Operating temperature | -20 ℃ to 55 ℃ (discharge)-20 ℃ to 45 ℃ (charge) |
Weight | 8.44KG (Lithium Battery : 3.87KG, Solar Panel : 4.42KG, Operation and Maintenance Module : 150g) |
General | |
Suitable pole diameter | 67mm to 110 mm |
