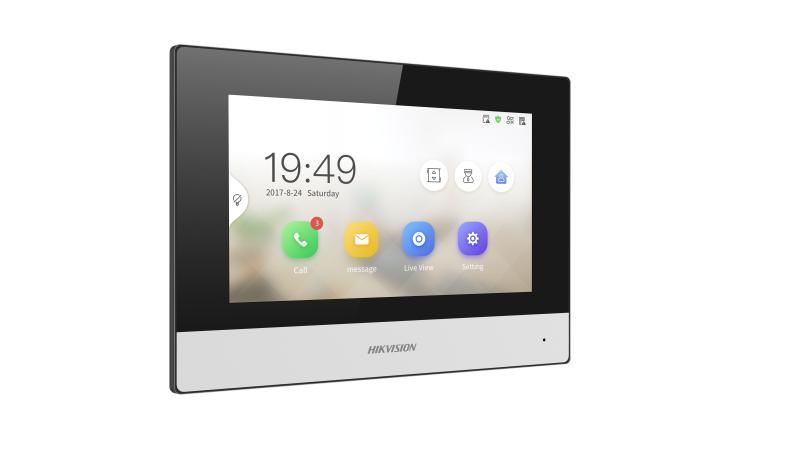

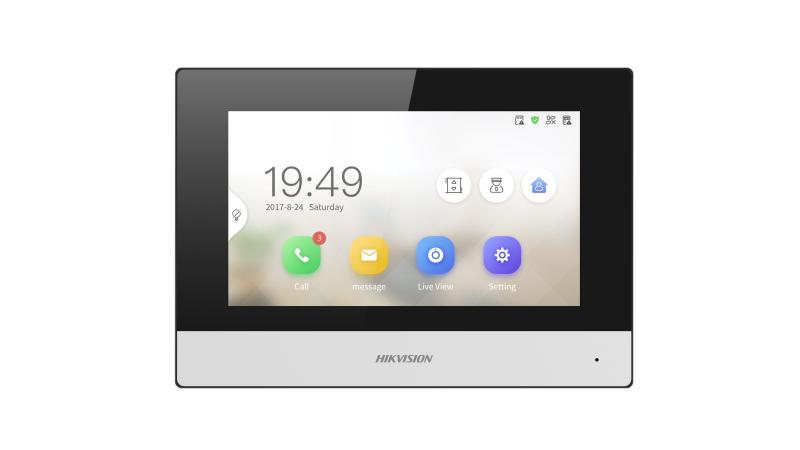

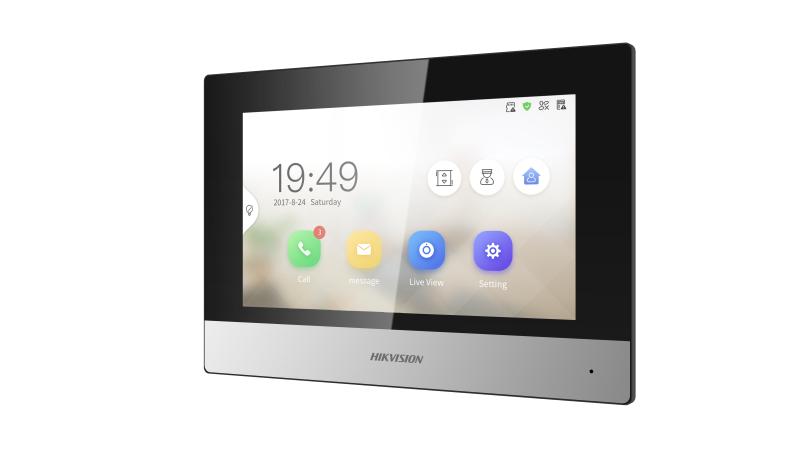

Two wire indoor stations. The KH6 series 2-wire indoor station, with 7-inch touch screen brings you a fluent video and audio communication. By considerating the difficulty of deployment of the traditional video intercom, the device has improved the design and can deploy the whole video intercom system by itself independently, without extra devices or configurations, which reduces the deployment time and cost. You can view, chat with, and send permission for the visitor via mobile phone in anywhere. The device can also link other control systems, such as CCTV system, elevator control system, etc.
Features:
- 7-inch IPS touch screen 2-Wire IP indoor station with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
| Specification | |
| System parameters | |
| Operation system | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | TFT |
| Resolution | 1024 × 600 |
| Video parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| Wide dynamic range (WDR) | / |
| Video compression standard | / |
| Focal length | / |
| Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio compression standard | G.711 U G.711 A |
| Audio output | Buit-in loudspeaker |
| Audio compression bitrate | 64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Message capacity | 200 captured pictures (with TF card); 200 alarm records 2 MB RAM (without TF card) reserved for events |
| Notice capacity | 200 |
| Linked network camera capacity | 16 |
Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 IP doorphones Max. |
| Network parameters | |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | / |
| 3G/4G | / |
| Zigbee | / |
| Device interfaces | |
| Alarm input | 8-ch alarm inputs |
| TAMPER | / |
| RS-485 | 1 |
| USB | / |
| TF card | Max to 128 G, SD 2.0 or lower version |
| Alarm output | 2 relays (30 V Max.) |
| Lock control | 2 relays, Max. to 30 VDC, 0.3 A |
| Two-Wire IP interface | 1 |
| General | |
| Button | / |
| Installation | Surface mounting |
| Indicator | / |
| Weight | Net weight:0.325 kg Gross weight: 0.650 kg |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93") |
| Battery | / |
| Power supply | Powered by KAD704Y or KAD706Y series distributor |
| Application environment | Indoor |
| Power consumption | ≤ 4 W |
Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak |
