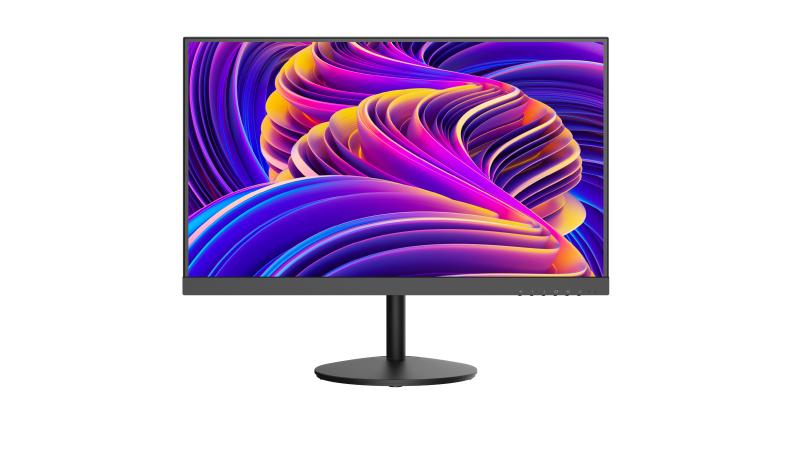

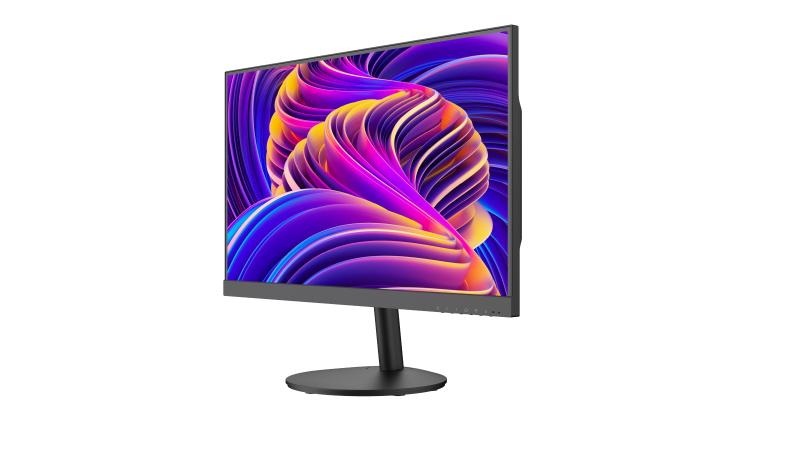

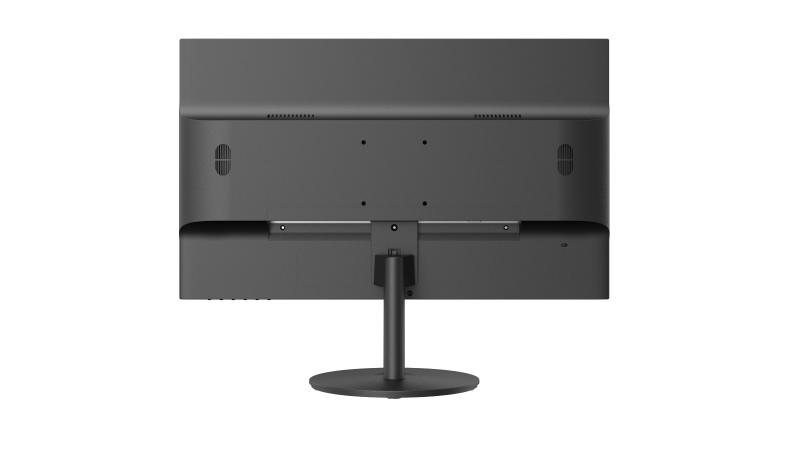

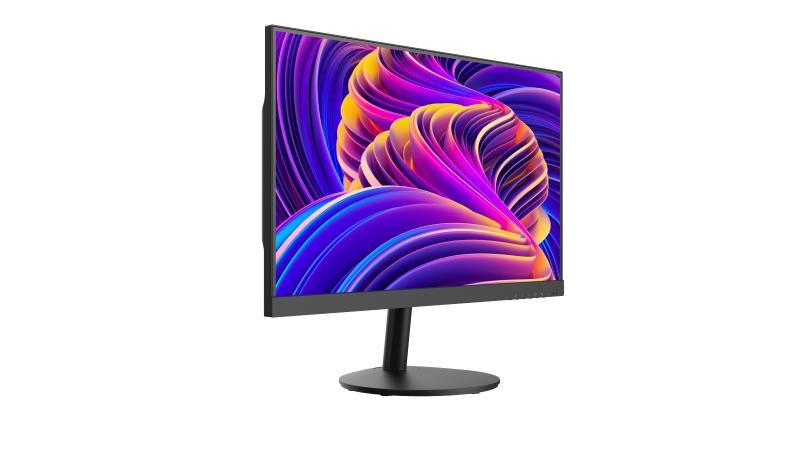

Hikvision - DS-D5024FC-C - 23.8-inch FHD Monitor
Part number:
DS-D5024FC-C
Price:
23.8-inch FHD Monitor
Features:
- Ultra-thin device body with ultra-thin border for 3 sides.
- 8 bit LVDS HD (1920 × 1080) display.
- 178° ultra-wide view screen.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount.
- Built-in speaker for audio input.
| Display | |
| Screen Size | 23.8 inch |
| Active Display Area | 527.04 (H) mm × 296.46 (V) mm |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| Pixel Pitch | 0.0915 (H) mm × 0.2745 (V) mm |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° (H)/178° (V) |
| Color Depth | 8 bit |
| Contrast Ratio | 4000:1 |
| Response Time | 6.5 ms (typ) |
| Refresh Rate | Max. 75 Hz, Typ. 60 Hz |
| Haze | Haze 25%, 3H |
| Reliability | 7 × 24 H |
| Color Gamut | 72% NTSC |
| Interface | |
| Video & Audio Input | HDMI 1.4 × 1, VGA × 1, BNC (CVBS) × 1, AUDIO IN × 1 |
| Video & Audio Output | Speaker (2 W 8 Ω) × 2 |
| Data Transmission Interface | USB 2.0 (support program upgrade and USB online playback) × 1 |
| Power | |
| Power Supply | AC 100 to 240V～, 50/60 Hz, 0.5 A Max |
| Power Consumption | ≤ 25 W |
| Standby Consumption | ≤ 0.5 W |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 20% RH to 90% RH (Non-Condensing) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Storage Humidity | 5% RH to 90% RH (Non-Condensing) |
| General | |
| Casing Material | Plastic |
| VESA | 75 mm × 75 mm (4-M4 × 6 mm) |
| Bezel Width | 1.75 mm (top/left/right), 23.55 mm (bottom) |
Product Dimensions (W × H × D) | without stand: 539.1 (W) mm × 327.04 (H) mm × 41.78 (D) mm (21.22″ × 12.88″ × 1.64″) with stand: 539.1 (W) mm × 433.2 (H) mm × 209.99 (D) mm (21.22″ × 17.06″ × 8.27″) |
| Package Dimensions (W × H × D) | 650 (W) mm × 475 (H) mm × 135 (D) mm (25.59″ × 18.7″ × 5.31″) |
| Net Weight | 3.32 ± 0.5 kg (7.32 ± 1.10 lb) |
| Gross Weight | 4.66 ± 0.5 kg (10.27 ± 1.10 lb) |
| Packing List | Monitor × 1, Base component × 1, AC power cable (1.5 m) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
| Remarks | If the appearance and parameters in this specification vary from the actual product, the later prevails. You can also consult local sale staff. |
